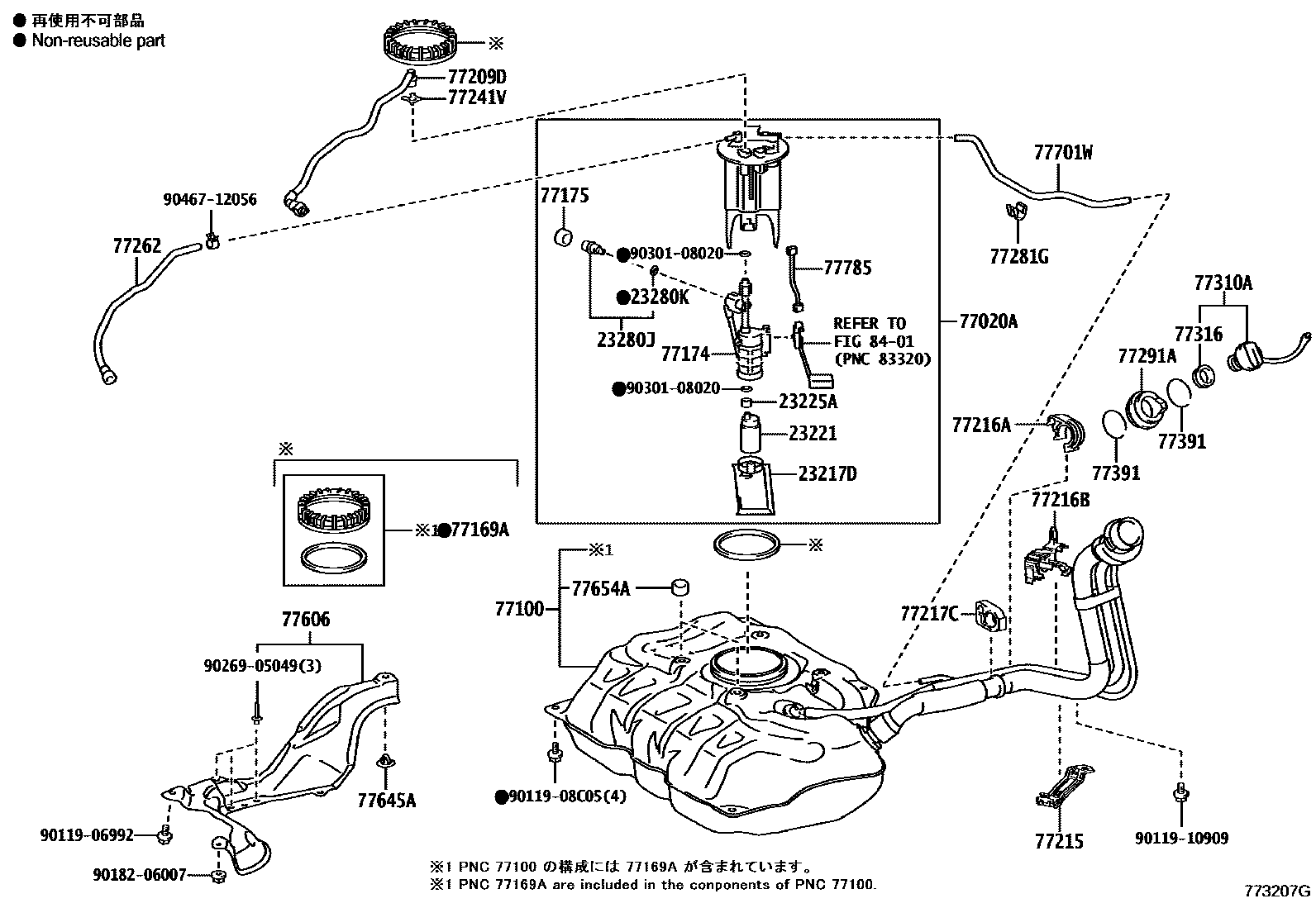

FUEL TANK & TUBE

0001 1�������� 0002 1�������� 0003 1�������� 0004 1�������� 0005 1���������� 0006 1���������� 0007 1���������� 0008 1��������������

23217DFILTER, FUEL PUMP

main23217-21010i1KRFE,1NZFE,1NRFKE..KSP130,NCP131,NSP130..CBU201012-201701

23221PUMP, FUEL

main23210-21020i1NZFXE..NHP130..CBU201701

main23220-21220i1NRFE..NSP135..CBU201012-201201

sub23220-21221

sub77785-52110

main23220-21221i1NRFE..NSP135..CBU201202-201701

main23221-47030i1KRFE,1N#..KSP130,NCP131,NSP130..CBU201012-201201

sub23221-47031

sub77785-52091

main23221-47031i1KRFE,1NZFE,1NRFKE..KSP130,NCP131,NSP130..CBU201404-201701

main23221-47031i1KRFE,1N#..KSP130,NCP131,NSP130..CBU201201-201404

23225ASPACER, FUEL PUMP

main23225-21020i1KRFE,1N#..KSP130,NCP131,NSP13#..CBU201012-201701

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i1NRFE..NSP135..CBU201012-201701

main23280-22010i1KRFE,1NZFE,1NRFKE..KSP130,NCP131,NSP130..CBU201012-201701

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i1NZFXE,1NRFE..NHP130,NSP135..(F,JEWL,U)..CBU201012-201701

main90301-07020i1KRFE,1NZFE,1NRFKE..KSP130,NCP131,NSP130..CBU201012-201701

main90301-15024i1NZFXE,1NRFE..NHP130,NSP135..(F,JEWL,U)..CBU201012-201701

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-52420iKSP130,NCP131,NSP130..CBU201012-201205

sub77020-52421

main77020-52421iKSP130,NCP131,NSP130..CBU201206-201701

main77020-52540iNHP130..CBU201701-201707

sub77020-52541

main77020-52541iNHP130..CBU201708

77100TANK ASSY, FUEL

main77001-52161iNSP135..CBU201012-201701

main77001-52370iKSP130,NCP131,NSP130..CBU201108-201701

main77001-52410iKSP130,NCP131,NSP130..CBU201012-201108

main77001-52590iNHP130..CBU201701

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iNSP135..CBU201012-201701

main77169-52040iKSP130,NCP131,NSP130..CBU201012-201701

77174SUPPORT, FUEL SUCTION, NO.1

main77174-52040iKSP130,NCP131,NSP130..CBU201012-201701

main77174-52070iNSP135..CBU201012-201701

77175SUPPORT, FUEL SUCTION, NO.2

main77175-52040iKSP130,NCP131,NSP130..CBU201012-201701

main77175-78010iNHP130..CBU201701

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-52110iNSP135..CBU201012-201701

sub77209-52111

main77209-52170iKSP130,NCP131,NSP130..CBU201012-201701

sub77209-52171

main77209-52240iNHP130..CBU201701

sub77209-52241

77215PLATE, FUEL TANK FILLER PIPE FLANGE

main77219-52060iKSP130,NCP131,NSP130..CBU201012-202001

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-12180iKSP130,NCP131,NHP130,NSP130..CBU201204-202001

main77216-52180iKSP130,NCP131,NSP130..CBU201012-201203

sub77216-12180

77216BSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77216-52160iKSP130,NCP131,NSP130..CBU201012-202001

77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-52080iKSP130,NCP131,NSP130..CBU201012-201701

77241VCLIP, TUBE JOINT

main77241-32060iNSP135..CBU201012-201701

main77241-33011iKSP130,NCP131,NSP130..CBU201012-201701

77262TUBE, FUEL EMISSION, NO.2

main77028-52020iKSP130,NCP131,NSP130..CBU201012-201701

main77028-52040iNHP130..CBU201701

77281GCLAMP, FUEL HOSE

main77281-52040iKSP130,NCP131,NSP130..CBU201012-201701

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-52100iKSP130,NCP131,NSP13#..CBU201012-201701

77310ACAP ASSY, FUEL TANK

main77300-52030iKSP130,NCP131,NSP13#..CBU201012-201701

77316GASKET, FUEL TANK CAP

main77316-52040iKSP130,NCP131,NSP13#..CBU201012-201701

77391RING, FUEL INLET BOX

main77391-12020iKSP130,NCP131,NSP13#..CBU201012-201701

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-12210iNHP130..CBU201701

main77606-52090iKSP130,NCP131,NSP130..CBU201012-201701

77645ARETAINER, FUEL TANK PROTECTOR

main77645-52020iKSP130,NCP131,NSP130..CBU201012-201209

main77645-52040iKSP130,NCP131,NSP130..CBU201210-201701

77654ACUSHION, FUEL TANK, NO.4

main77654-52020iKSP130,NCP131,NSP130..CBU201012-201108

77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1

main77701-12020iKSP130,NCP131,NSP130..CBU201207-201701

main77701-52020iKSP130,NCP131,NSP130..CBU201012-201207

sub77701-12020

main77701-52040iNHP130..CBU201701

77785HARNESS, FUEL PUMP

main77785-52060iNSP135..CBU201012-201201

main77785-52090iKSP130,NCP131,NSP130..CBU201012-201201

main77785-52091iKSP130,NCP131,NSP130..CBU201201-201701

main77785-52110iNSP135..CBU201201-201701

main77785-52140iNHP130..CBU201701-201708

main77785-52141iNHP130..CBU201708

8401

9011906992

main90119-06992

9011908C05

main90119-08C05

9011910909

main90119-10909

9018206007

main90182-06007

9026905049

main90269-05049

9030108020

main90301-08020

9046712056

main90467-12056

35 parts on this diagram · 8 diagrams in section
