MUDGUARD & SPOILER

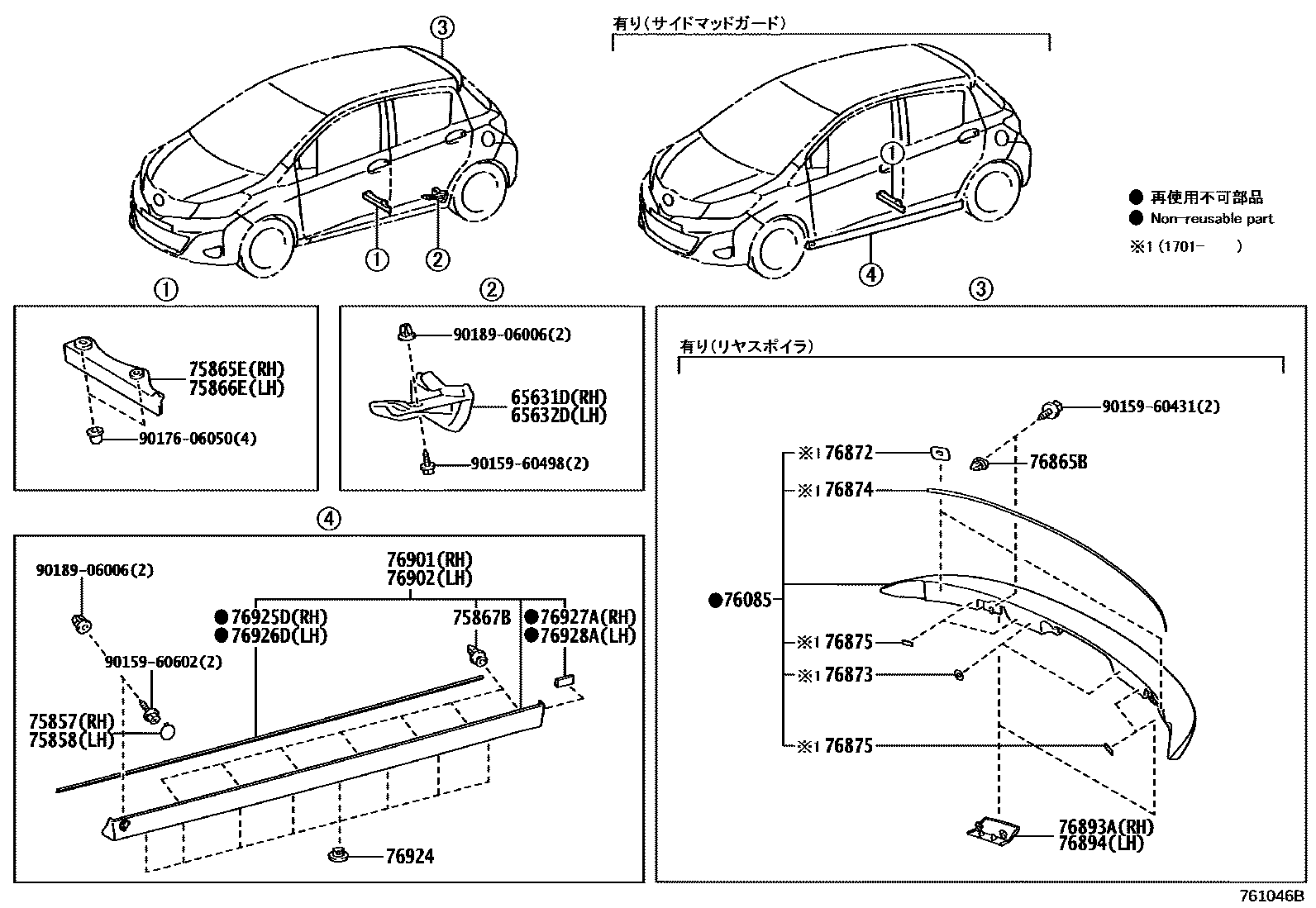

Parts diagram
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
main65631-52120i201012-201404
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
main65632-52120i201012-201404
75857COVER, ROCKER PANEL MOULDING, RH
main75857-52070-A0i201709
SUPER WHITE 2,040
main75857-52070-A1i201709
WHITE PEARL CS.,070
main75857-52070-B0i201404-201701
SILVER ME.,1F7
main75857-52070-B1supersedes 75857-52070-B1i201709
GRAY ME.,1G3
main75857-52070-B2i201012-201404
GIN BUCK ME.,1J1
main75857-52070-C0supersedes 75857-52070-C0i201709
BLACK MC.,209
main75857-52070-D0supersedes 75857-52070-D0i201709
SUPER RED 5,3P0
main75857-52070-E1i201507-201701
ORANGE ME.,4R8
main75857-52070-F1supersedes 75857-52070-F1i201709
LUMINOUS YELLOW,5B5
main75857-52070-H0i201012-201404
TURQUOISE M.M.,788
main75857-52070-J2supersedes 75857-52070-J2i201709
BLUE ME.,8T7
main75857-52070-D3i201404-201701
main75857-52070-E2i201701
main75857-52070-J4i201701
75858COVER, ROCKER PANEL MOULDING, LH
main75857-52070-A0i201709
SUPER WHITE 2,040
main75857-52070-A1i201709
WHITE PEARL CS.,070
main75857-52070-B0i201012-201404
SILVER ME.,1F7
main75857-52070-B1supersedes 75857-52070-B1i201709
GRAY ME.,1G3
main75857-52070-B2i201012-201404
GIN BUCK ME.,1J1
main75857-52070-C0supersedes 75857-52070-C0i201709
BLACK MC.,209
main75857-52070-D0supersedes 75857-52070-D0i201709
SUPER RED 5,3P0
main75857-52070-E1i201507-201701
ORANGE ME.,4R8
main75857-52070-F1supersedes 75857-52070-F1i201709
LUMINOUS YELLOW,5B5
main75857-52070-H0i201012-201404
TURQUOISE M.M.,788
main75857-52070-J2supersedes 75857-52070-J2i201709
BLUE ME.,8T7
main75857-52070-D3i201404-201701
main75857-52070-E2i201701
main75857-52070-J4i201701
75865EPROTECTOR, ROCKER PANEL MOULDING, RH
main75865-52031i201012-201404
75866EPROTECTOR, ROCKER PANEL MOULDING, LH
main75866-52031i201012-201404
75867BCLIP, ROCKER PANEL MOULDING
main75867-33030×14i201012-201107
main75867-52020×14i201108-201404
76085SPOILER SUB-ASSY, REAR
main76085-52190-A0i201012-201404
SUPER WHITE 2,040
sub76085-52924
main76085-52190-B0i201012-201404
SILVER ME.,1F7
sub76085-52924
main76085-52190-B2i201012-201404
GIN BUCK ME.,1J1
sub76085-52924
main76085-52190-H0i201012-201404
TURQUOISE M.M.,788
sub76085-52924
main76085-52190-D3i201404-201701
sub76085-52924
main76085-52190-E2i201701
sub76085-52924
main76085-52190-J4i201701
sub76085-52924
main76085-52220i201110-201404
main76085-52280-A0i201709-201803
main76085-52280-A1i201709-201803
main76085-52280-B0i201709-201803
main76085-52280-B1i201709-201803
main76085-52280-C0i201709-201803
main76085-52280-D0i201709-201803
main76085-52280-F0i201709-201803
main76085-52280-J0i201709-201803
main76085-52281-A0i201804
main76085-52281-A1i201804
main76085-52281-B0i201804
main76085-52281-B1i201804
main76085-52281-C0i201804
main76085-52281-D0i201804
main76085-52281-F0i201804
main76085-52281-J0i201804
main76085-WY010-A0i201404-201701
main76085-WY010-A1supersedes 76085-52190-A0i201709-201803
main76085-WY010-B0supersedes 76085-52190-B1i201709-201803
main76085-WY010-B1supersedes 76085-52190-B0i201709-201803
main76085-WY010-C0supersedes 76085-52190-C0i201404-201701
main76085-WY010-D0supersedes 76085-52190-D0i201404-201701
main76085-WY010-D1i201404-201701
main76085-WY010-E0supersedes 76085-52190-E1i201507-201701
main76085-WY010-F0supersedes 76085-52190-F1i201404-201701
main76085-WY010-J0supersedes 76085-52190-J2i201709-201803
main76085-WY011-A0supersedes 76085-52190-A1i201804
main76085-WY011-A1supersedes 76085-52190-A0i201804
main76085-WY011-B0supersedes 76085-52190-B1i201804
main76085-WY011-B1supersedes 76085-52190-B0i201804
main76085-WY011-C0supersedes 76085-52190-C0i201804
main76085-WY011-D0supersedes 76085-52190-D0i201804
main76085-WY011-F0supersedes 76085-52190-F1i201804
main76085-WY011-J0supersedes 76085-52190-J2i201804
76865BRETAINER, REAR SPOILER
main76865-52040×2i201012-201404
76872PROTECTOR, REAR SPOILER, NO.1
main76872-52110×2i201404-201701
76873PROTECTOR, REAR SPOILER, NO.2
main76873-52140×2i201404-201701
76874PROTECTOR, REAR SPOILER, NO.3
main76874-52090i201404-201701
76875PROTECTOR, REAR SPOILER, NO.4
main76875-52040×4i201404-201701
76893ACOVER, REAR SPOILER, RH
main76893-52070-A0i201012-201404
SUPER WHITE 2,040
main76893-52070-A1i201709
main76893-52070-B0i201709
SILVER ME.,1F7
main76893-52070-B1supersedes 76893-52070-B1i201709
GRAY ME.,1G3
main76893-52070-B2i201012-201404
GIN BUCK ME.,1J1
main76893-52070-C0supersedes 76893-52070-C0i201709
main76893-52070-D0supersedes 76893-52070-D0i201709
SUPER RED 5,3P0
main76893-52070-E1i201507-201701
ORANGE ME.,4R8
main76893-52070-F1supersedes 76893-52070-F1i201709
LUMINOUS YELLOW,5B5
main76893-52070-H0i201012-201404
TURQUOISE M.M.,788
main76893-52070-J2supersedes 76893-52070-J2i201709
BLUE ME.,8T7
main76893-52070-D3i201404-201701
main76893-52070-E2i201701
main76893-52070-J4i201701
main76893-52080i201110-201404
76894COVER, REAR SPOILER, LH
main76894-52040-A0i201709
SUPER WHITE 2,040
main76894-52040-A1i201709
main76894-52040-B0i201709
SILVER ME.,1F7
main76894-52040-B1supersedes 76894-52040-B1i201709
GRAY ME.,1G3
main76894-52040-B2i201012-201404
GIN BUCK ME.,1J1
main76894-52040-C0supersedes 76894-52040-C0i201709
main76894-52040-D0supersedes 76894-52040-D0i201709
SUPER RED 5,3P0
main76894-52040-E1i201507-201701
ORANGE ME.,4R8
main76894-52040-F1supersedes 76894-52040-F1i201709
LUMINOUS YELLOW,5B5
main76894-52040-H0i201012-201404
TURQUOISE M.M.,788
main76894-52040-J2supersedes 76894-52040-J2i201709
BLUE ME.,8T7
main76894-52040-D3i201404-201701
main76894-52040-E2i201701
main76894-52040-J4i201701
main76894-52050i201110-201404
76901MUDGUARD SUB-ASSY, SIDE, RH
main76901-52110-A0i201012-201404
SUPER WHITE 2,040
main76901-52110-B0i201404-201701
SILVER ME.,1F7
main76901-52110-B2i201012-201404
GIN BUCK ME.,1J1
main76901-52110-H0i201012-201404
TURQUOISE M.M.,788
main76901-52120-A0i201709
SUPER WHITE 2,040
main76901-52120-A1i201709
WHITE PEARL CS.,070
main76901-52120-B0i201709
SILVER ME.,1F7
main76901-52120-B1supersedes 76901-52110-B1i201709
GRAY ME.,1G3
main76901-52120-C0supersedes 76901-52110-C0i201709
BLACK MC.,209
main76901-52120-D0supersedes 76901-52110-D0i201709
SUPER RED 5,3P0
main76901-52120-F0supersedes 76901-52110-F2i201709
LUMINOUS YELLOW,5B5
main76901-52120-J0supersedes 76901-52110-J2i201709
BLUE ME.,8T7
main76901-52110-A1i201701
main76901-52110-E2i201701
main76901-52110-J5i201701
main76901-52120-D1i201404-201701
main76901-52120-E0supersedes 76901-52110-E1i201507-201701
main76901-52120-H0i201110-201404
76902MUDGUARD SUB-ASSY, SIDE, LH
main76902-52110-A0i201404-201701
SUPER WHITE 2,040
main76902-52110-B0i201404-201701
SILVER ME.,1F7
main76902-52110-B2i201012-201404
GIN BUCK ME.,1J1
main76902-52110-H0i201012-201404
TURQUOISE M.M.,788
main76902-52120-A0i201709
SUPER WHITE 2,040
main76902-52120-A1i201709
WHITE PEARL CS.,070
main76902-52120-B0i201709
SILVER ME.,1F7
main76902-52120-B1supersedes 76902-52110-B1i201709
GRAY ME.,1G3
main76902-52120-C0supersedes 76902-52110-C0i201709
BLACK MC.,209
main76902-52120-D0supersedes 76902-52110-D0i201709
SUPER RED 5,3P0
main76902-52120-F0supersedes 76902-52110-F2i201709
LUMINOUS YELLOW,5B5
main76902-52120-J0supersedes 76902-52110-J2i201709
BLUE ME.,8T7
main76902-52110-A1i201701
main76902-52110-E2i201701
main76902-52110-J5i201701
main76902-52120-D1i201404-201701
main76902-52120-E0supersedes 76902-52110-E1i201507-201701
main76902-52120-H0i201110-201404
76924RETAINER, SIDE MUDGUARD, NO.2
main76924-12040×16i201012-201404
76925DPROTECTOR, SIDE MUDGUARD, RH
main76925-52200-B0i201404-201701
MEDIUM GRAY,040 ,1F7 ,4R8 ,5B5
main76925-52200-C0supersedes 76925-52200-C0i201709
BLACK,1G3 ,209 ,3P0 ,8T7
76926DPROTECTOR, SIDE MUDGUARD, LH
main76925-52200-B0i201709
MEDIUM GRAY,040 ,070 ,1F7 ,4R8 ,5B5
main76925-52200-C0supersedes 76925-52200-C0i201709
BLACK,1G3 ,209 ,3P0 ,8T7
76927APROTECTOR, SIDE MUDGUARD, REAR RH
main76927-52030i201404-201701
76928APROTECTOR, SIDE MUDGUARD, REAR LH
main76927-52030i201709
9015960431
main90159-60431
9015960498
main90159-60498
9015960602
main90159-60602
9017606050
main90176-06050
9018906006
main90189-06006

27 parts on this diagram · 14 diagrams in section
