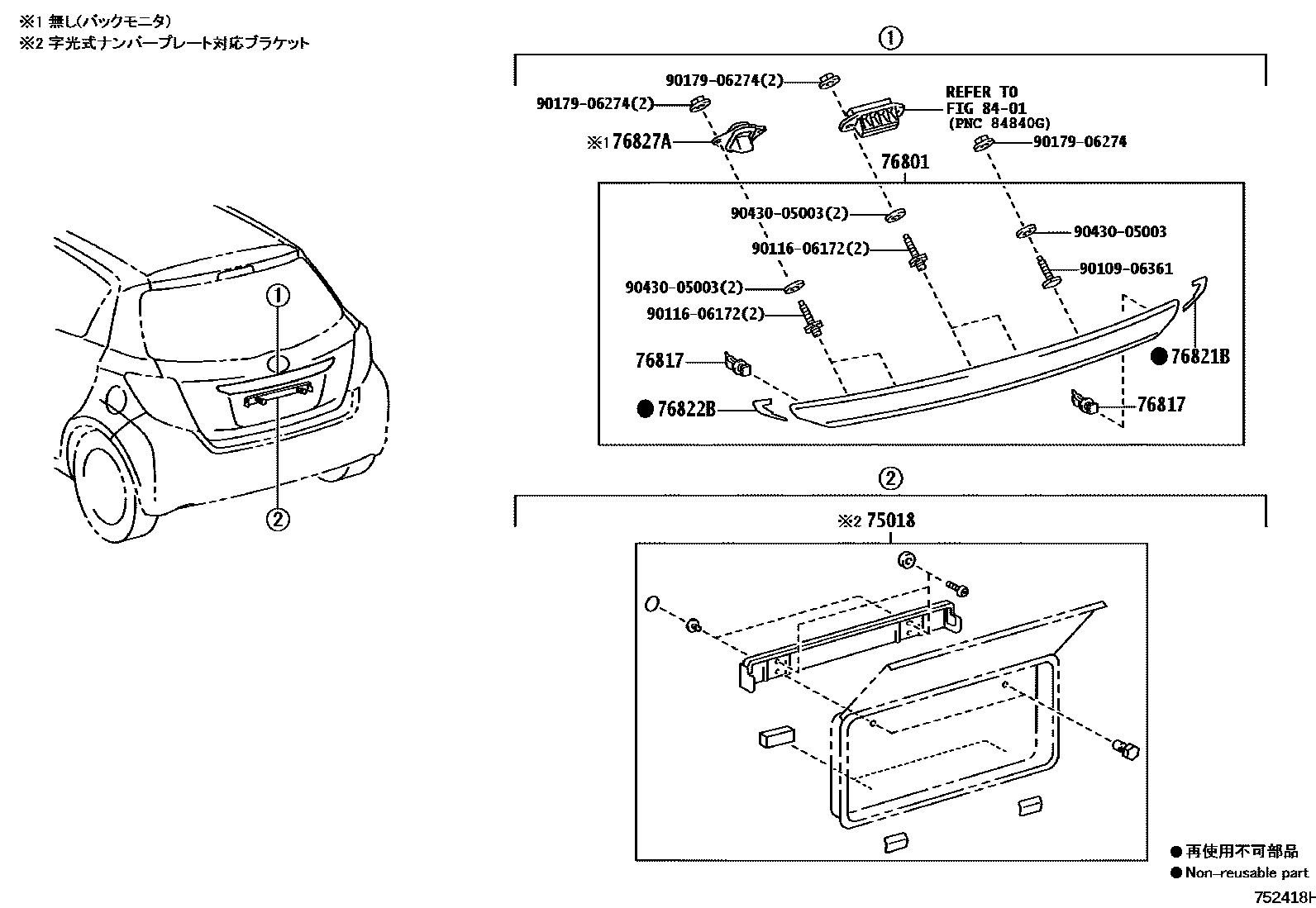

REAR MOULDING

0001 1 0002 1 0004 1

75018FRAME SUB-ASSY, REAR LICENSE PLATE

main75010-44020¥3,500

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-52340iKSP130,NCP131,NSP13#..CBU¥16,400201404-201701

���b�L

main76801-52350iKSP130,NCP131,NSP13#..CBU¥10,000201012-201404

���b�L

main76801-52400iNCP131,NHP130..GRS¥13,600201709

���b�L

main76801-52530-A0iKSP130,NHP130,NSP13#..(F,U)..CBU201701

SUPER WHITE 2,040

main76801-52530-A1iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

WHITE PEARL CS.,070

main76801-52530-B0iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

SILVER ME.,1F7

main76801-52530-B1iKSP130,NHP130,NSP13#..(F,U)..CBU201701

GRAY ME.,1G3

main76801-52530-C0iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

BLACK MC.,209

main76801-52530-D0iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

SUPER RED 5,3P0

main76801-52530-D1iKSP130,NHP130,NSP13#..(F,JEWL)..CBU201701

DK. RED M.M.,3Q3

main76801-52530-D2iKSP130,NHP130,NSP13#..(F,JEWL)..CBU201701

DEEP RED M.M.,3R9

main76801-52530-D3iKSP130,NHP130,NSP13#..JEWL201701-201910

CHERRY PEARL CS.,3S7

main76801-52530-D4iKSP130,NHP130,NSP13#..F..CBU201901

RED MC.,3T3

main76801-52530-E0iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701-201910

ORANGE ME.,4R8

main76801-52530-E1iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

AVANT-GARDE BRONZE ME.,4V8

main76801-52530-F0iKSP130,NHP130,NSP13#..(F,U)..CBU201701

LUMINOUS YELLOW,5B5

main76801-52530-G0iKSP130,NHP130,NSP13#..JEWL201701

OLIVE M.M.,6T7

main76801-52530-G1iKSP130,NHP130,NSP13#..JEWL201701-201910

JADE GREEN METALLIC,6V5

main76801-52530-J0iKSP130,NHP130,NSP13#..(F,JEWL)..CBU201701

DK.BLUE MC.,8S6

main76801-52530-J1iKSP130,NHP130,NSP13#..(F,U)..CBU201701

BLUE ME.,8T7

main76801-52530-J3iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

CLEAR BLUE CS.,8Y3

main76801-52530-K0iKSP130,NHP130,NSP13#..F..CBU201901

JEWELRY PURPLE M.M.,9AR

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76813-52010iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU¥540201701

main76817-12070iKSP130,NCP131,NSP13#..CBU¥80201404-201701

main76817-50010iKSP130,NCP131,NSP13#..CBU¥90201012-201404

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-52190iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU¥1,340201701

76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH

main76821-52140iKSP130,NCP131,NSP13#..CBU¥680201012-201404

main76821-52180iKSP130,NCP131,NSP13#..CBU¥380201404-201701

76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH

main76821-52180iNCP131,NHP130..GRS¥380201404-201701

main76822-52070iKSP130,NCP131,NSP13#..CBU¥680201012-201404

76827ARETAINER, BACK DOOR GARNISH, NO.2

main76827-52020iNCP131,NHP130..GRS¥780201012-201701

main76827-52040iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU¥1,190201701

8401

9010906361

main90109-06361¥60

9011606172

main90116-06172¥100

9017906274

main90179-06274¥70

9043005003

main90430-05003¥60

12 parts on this diagram · 3 diagrams in section
