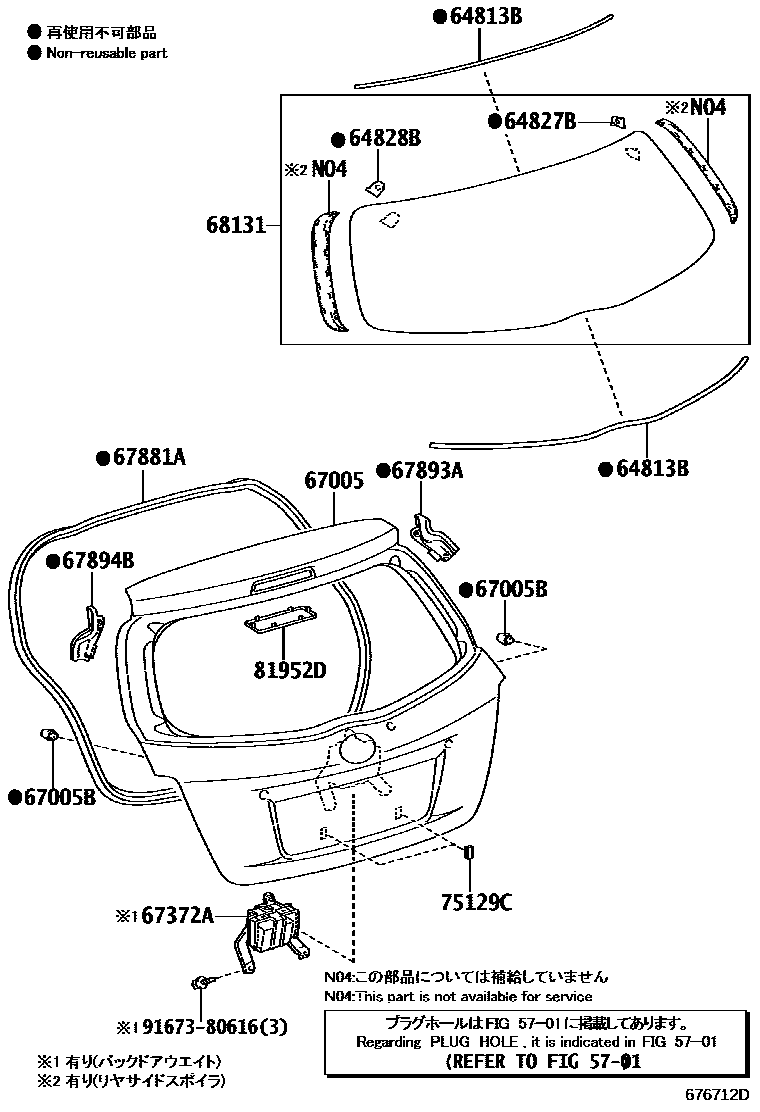

BACK DOOR PANEL & GLASS

0001 1������� 0003 1������ 0005 1

5701

64813BDAM, BACK WINDOW GLASS ADHESIVE

main56117-50140iKSP130,NCP131,NSP13#..CBU201012-201701

64827BCLIP, BACK WINDOW GLASS, RH

main64827-52090iKSP130,NCP131,NSP13#..CBU201012-201810

64828BCLIP, BACK WINDOW GLASS, LH

main64828-52090iKSP130,NCP131,NHP130,NSP13#..CBU201012-201810

67005PANEL SUB-ASSY, BACK DOOR

main67005-52C20iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201404

main67005-52C60iNCP131..RS201012-201404

main67005-52C80iNHP130..GRS201404-201701

main67005-52E20iNCP131..RS201404-201701

main67005-52F80iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09146iKSP130,NCP131,NSP13#..CBU201012-201701

67372AWEIGHT, BACK DOOR

main67372-52030iNCP131,NSP13#..CVT..CBU201012-201404

sub67372-52031

main67372-52040iNCP131,NSP13#..CVT..CBU201404-201701

sub67372-52041

main67372-52041iNCP131,NHP130..CVT..GRS201709

main67372-52060iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

67881AWEATHERSTRIP, BACK DOOR

main67881-52180iKSP130,NCP131,NSP13#..CBU201012-201209

sub67881-52210

main67881-52210iKSP130,NCP131,NHP130,NSP13#..CBU201210-201701

67893APROTECTOR, BACK DOOR PANEL, NO.1

main67893-52090iKSP130,NCP131,NSP13#..CBU201012-201404

sub67893-52091

main67893-52091iKSP130,NCP131,NHP130,NSP13#..CBU201404-201701

67894BPROTECTOR, BACK DOOR PANEL, NO.2

main67894-52090iKSP130,NCP131,NSP13#..CBU201012-201404

sub67894-52091

main67894-52091iKSP130,NCP131,NHP130,NSP13#..CBU201404-201701

68131GLASS, BACK DOOR

main68105-52620iKSP130,NCP131,NSP13#..CBU201012-201701

main68105-52620iNCP131201709

main68105-52690iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

main68105-52730iNHP130..GRS201709

75129CCUSHION, REAR LICENCE PLATE

main75129-13020iKSP130,NCP131,NSP13#..CBU201012-201701

main75129-21010iKSP130,NCP131,NHP130,NSP13#..CBU201012-201701

81952DCOVER, REAR LAMP

main81952-52020iKSP130,NCP131,NSP13#..CBU201012-201701

9167380616

main91673-80616

14 parts on this diagram · 3 diagrams in section
