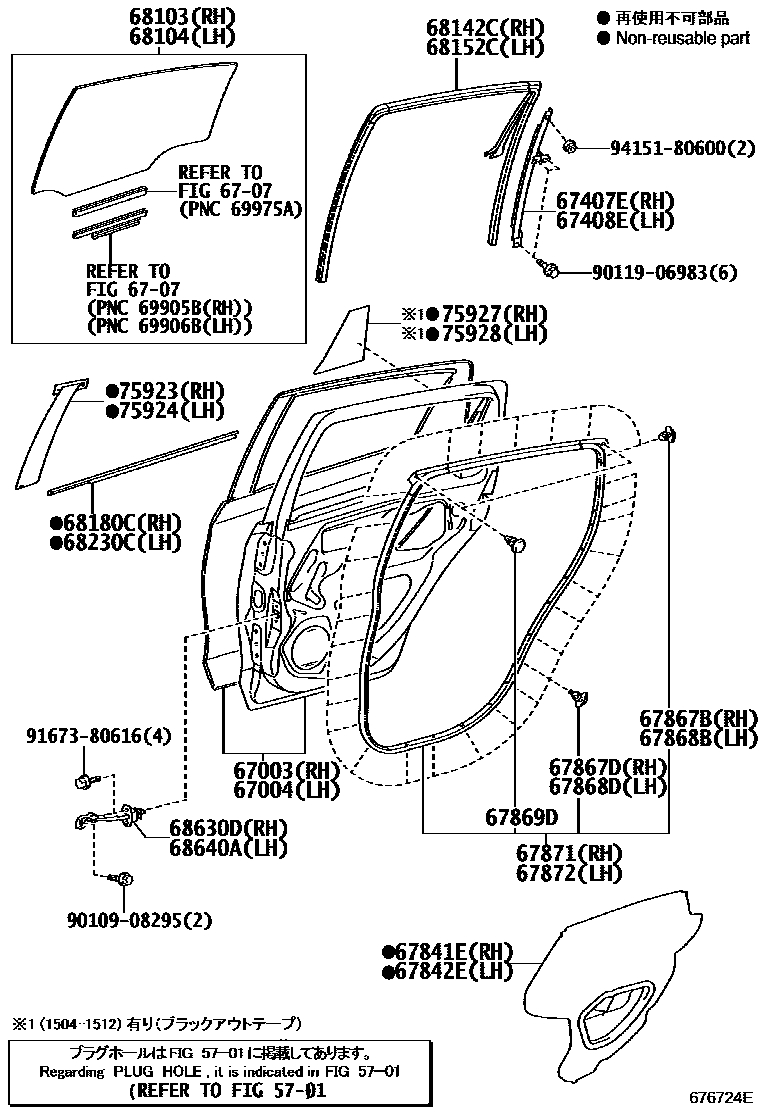

REAR DOOR PANEL & GLASS

0001 1������� 0002 1������

5701

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-52280iKSP130,NCP131,NSP13#..CBU201012-201701

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-52440iKSP130,NCP131,NHP130,NSP13#..CBU201012-201701

6707

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-52170iKSP130,NCP131,NSP13#..CBU201012-201701

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-52170iKSP130,NCP131,NSP13#..CBU201012-201701

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-52300iKSP130,NSP13#..F..CBU201404-201701

main67841-52300iKSP130,NHP130,NSP13#..F..CBU201012-201404

main67841-52310iKSP130,NCP131,NHP130,NSP13#..(GRS,JEWL,U)..CBU201404-201701

main67841-52310iKSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU201012-201404

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67841-52300iKSP130,NSP13#..F..CBU201012-201404

main67841-52300iKSP130,NSP13#..F..CBU201404-201701

main67841-52310iKSP130,NCP131,NHP130,NSP13#..(GRS,JEWL,U)..CBU201404-201701

main67841-52310iKSP130,NCP131,NSP13#..(JEWL,RS,U)..CBU201012-201404

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67867-52020iKSP130,NCP131,NSP13#..CBU201012-201701

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iKSP130,NCP131,NSP13#..CBU201012-201701

67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)

main67867-52010iKSP130,NCP131,NSP13#..CBU201012-201701

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iKSP130,NCP131,NSP13#..CBU201012-201701

67869DCLIP, DOOR WEATHERSTRIP

main90467-06084iKSP130,NCP131,NSP13#..CBU201012-201701

67871WEATHERSTRIP, REAR DOOR, RH

main67871-52180iKSP130,NCP131,NSP13#..CBU201012-201207

sub67871-52181

main67871-52181iKSP130,NCP131,NSP13#..CBU201208-201701

67872WEATHERSTRIP, REAR DOOR, LH

main67872-52200iKSP130,NCP131,NSP13#..CBU201012-201207

sub67872-52201

main67872-52201iKSP130,NCP131,NSP13#..CBU201208-201701

68103GLASS SUB-ASSY, REAR DOOR, RH

main68130-52360iKSP130,NCP131,NSP13#..CBU201012-201701

main68130-52360iKSP130,NCP131,NHP130,NSP13#..CBU201701

68104GLASS SUB-ASSY, REAR DOOR, LH

main68140-52360iKSP130,NCP131,NSP13#..CBU201012-201701

main68140-52360iKSP130,NCP131,NHP130,NSP13#..CBU201701

68142CRUN, REAR DOOR GLASS, RH

main68142-52150iKSP130,NCP131,NSP13#..CBU201012-201701

68152CRUN, REAR DOOR GLASS, LH

main68152-52160iKSP130,NCP131,NSP13#..CBU201012-201701

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-52160iKSP130,NCP131,NSP13#..(F,RS,U)..CBU201012-201109

sub68180-52161

main68180-52161iKSP130,NCP131,NHP130,NSP13#..(F,GRS,U)..CBU201110-201701

main68180-52170iKSP130,NSP13#..JEWL201012-201701

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-52160iKSP130,NCP131,NSP13#..(F,RS,U)..CBU201012-201109

sub68230-52161

main68230-52161iKSP130,NCP131,NSP13#..(F,RS,U)..CBU201110-201701

main68230-52170iKSP130,NSP13#..JEWL201012-201701

68630DCHECK ASSY, REAR DOOR, RH

main68630-52110iKSP130,NCP131,NSP13#..CBU201012-201701

68640ACHECK ASSY, REAR DOOR, LH

main68630-52110iKSP130,NCP131,NSP13#..CBU201012-201701

75923TAPE, BLACK OUT, NO.2 RH

main75923-52120iKSP130,NCP131,NSP13#..CBU201012-201701

75924TAPE, BLACK OUT, NO.2 LH

main75924-52120iKSP130,NCP131,NSP13#..CBU201012-201701

75927TAPE, BLACK OUT, NO.4 RH

main75927-52030

75928TAPE, BLACK OUT, NO.4 LH

main75928-52030

9010908295

main90109-08295

9011906983

main90119-06983

9167380616

main91673-80616

9415180600

main94151-80600

31 parts on this diagram · 2 diagrams in section
