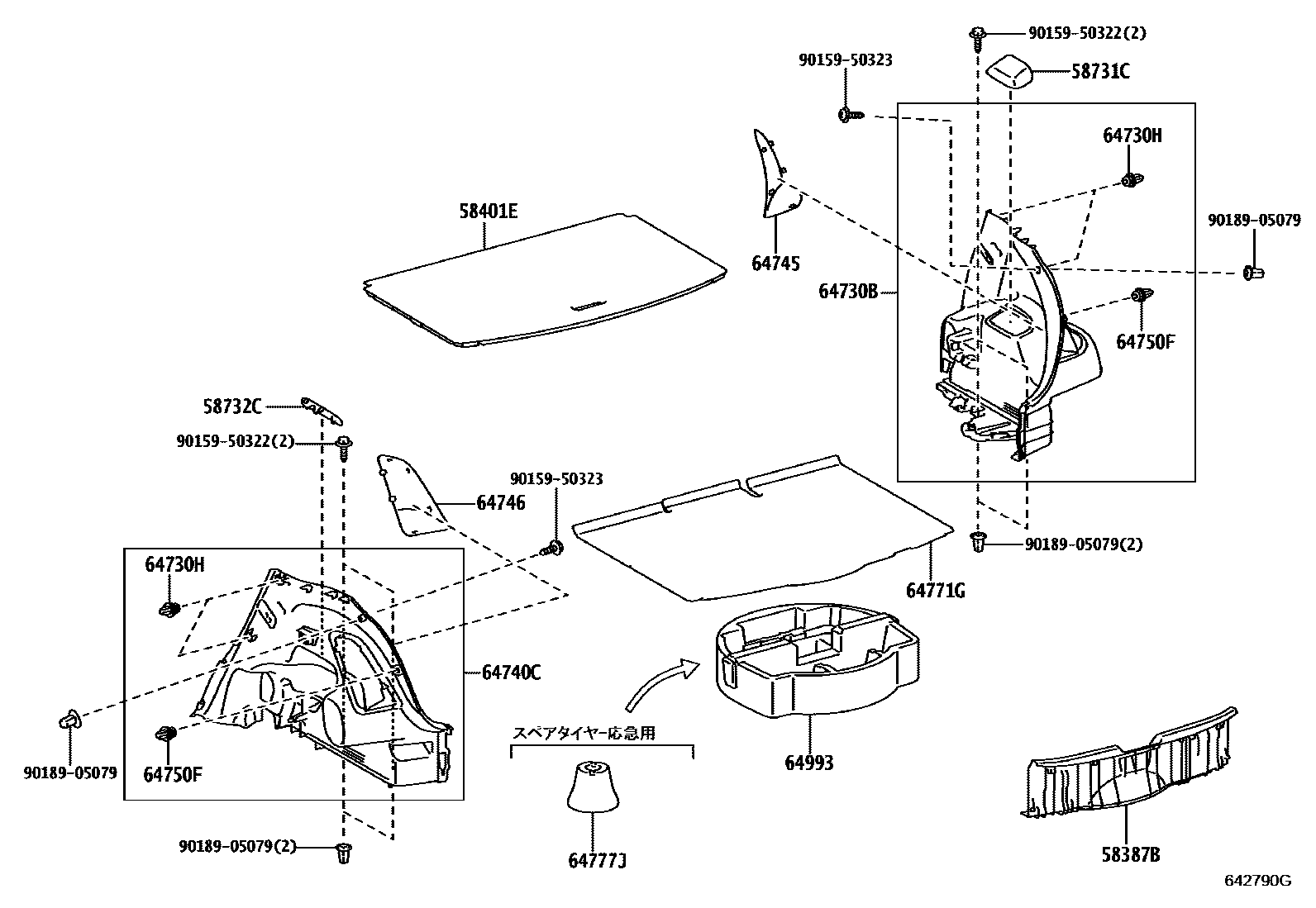

DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
BLACK,TRIM1#,4#
BLACK,TRIM1#
BLACK,TRIM1#,2#,4#,5#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#,5#
BLACK,TRIM0#,2#,5#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#,3#
58401EBOARD SUB-ASSY, DECK
DARK GRAY,TRIM1#
DARK GRAY,TRIM1#,4#
DARK GRAY,TRIM1#,2#,4#,5#
DARK GRAY,TRIM0#,2#,4#,5#
DARK GRAY,TRIM2#
DARK GRAY,TRIM2#,3#,4#
DARK GRAY,TRIM0#,2#
DARK GRAY,TRIM2#,4#
DARK GRAY,TRIM2#,3#
58731CCAP, REAR ABSORBER
58732CCAP, REAR ABSORBER
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM1#,2#,4#,5#
BLACK,TRIM1#,4#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#,5#
BLACK,TRIM0#,2#,5#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM0#,2#
BLACK,TRIM1#
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#
BLACK,TRIM2#
64730HCLIP(FOR DECK TRIM SIDE PANEL)
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM1#,4#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#,5#
BLACK,TRIM0#,2#,5#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM0#,2#
BLACK,TRIM1#
BLACK,TRIM1#,2#,4#,5#
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#
BLACK,TRIM2#
64745COVER, REAR COMBINATION LAMP SERVICE, RH
BLACK,TRIM0#,2#,4#,5#
BLACK,TRIM1#,5#
BLACK,TRIM1#,4#
BLACK,TRIM1#
BLACK,TRIM1#,2#,4#,5#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,5#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#,3#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
BLACK,TRIM1#,4#
BLACK,TRIM1#
BLACK,TRIM1#,2#,4#,5#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#,5#
BLACK,TRIM0#,2#,5#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#
BLACK,TRIM1#,5#
BLACK,TRIM0#,2#
BLACK,TRIM2#,3#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64771GCOVER, SPARE WHEEL
DARK GRAY,TRIM2#
DARK GRAY,TRIM1#,2#,4#,5#
DARK GRAY,TRIM1#
DARK GRAY,TRIM1#,4#
DARK GRAY,TRIM0#,2#,5#
DARK GRAY,TRIM2#,3#,4#
DARK GRAY,TRIM0#,2#
DARK GRAY,TRIM2#,4#
DARK GRAY,TRIM2#,3#
DARK GRAY,TRIM0#,2#
DARK GRAY,TRIM2#,3#
DARK GRAY,TRIM2#,4#
DARK GRAY,TRIM2#
DARK GRAY,TRIM1#,4#
DARK GRAY,TRIM1#,2#,4#,5#
DARK GRAY,TRIM0#,2#
DARK GRAY,TRIM2#,3#
DARK GRAY,TRIM2#,3#,4#
DARK GRAY,TRIM0#,2#,4#,5#
64777JCUSHION, SPARE WHEEL
64993BOX, DECK FLOOR, REAR
9015950322
main90159-50322
9015950323
main90159-50323
9018905079
main90189-05079
16 parts on this diagram · 3 diagrams in section
