QUARTER WINDOW

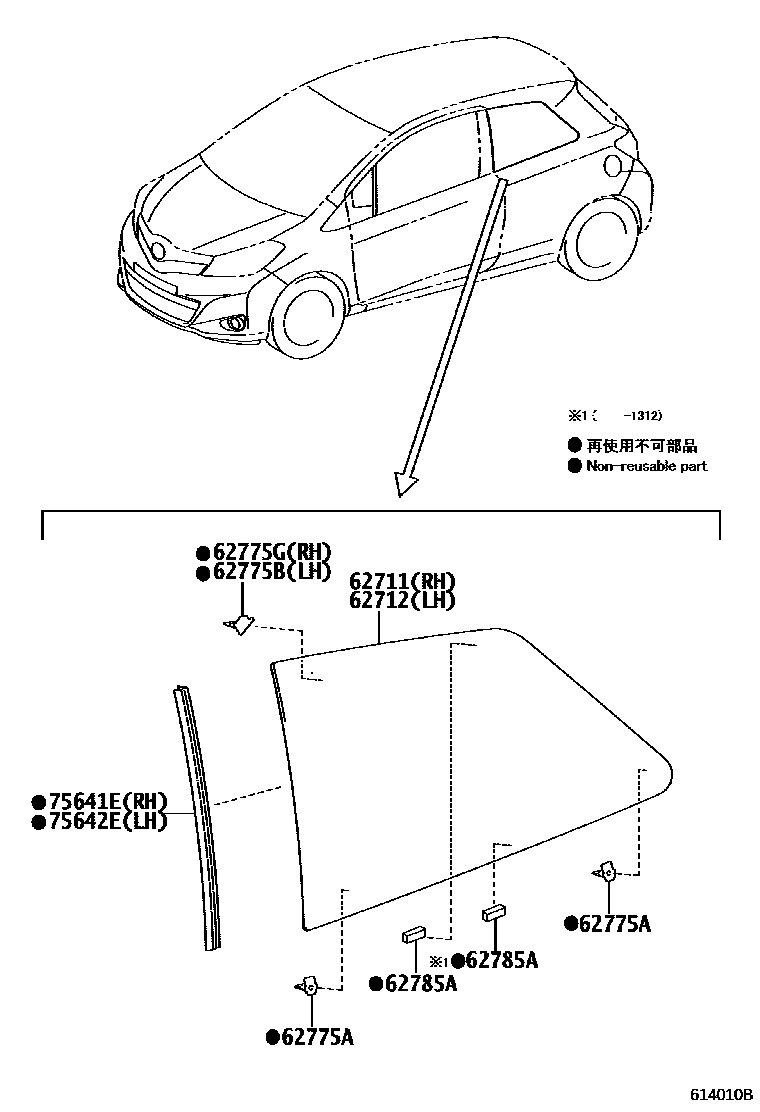

Parts diagram

62711GLASS, QUARTER WINDOW, RH

main62711-52390i201309-201402

62712GLASS, QUARTER WINDOW, LH

main62712-52380i201309-201402

62775ACLIP, QUARTER WINDOW

main62775-68110i201309-201402

62775BCLIP, QUARTER WINDOW, LH

main62775-52060i201309-201402

62775GCLIP, QUARTER WINDOW, RH

main62775-52050i201309-201402

62785ASPACER, QUARTER WINDOW GLASS

main62785-16030i201309-201402

75641EMOULDING, QUARTER WINDOW, RH

main75641-52060i201309-201402

75642EMOULDING, QUARTER WINDOW, LH

main75641-52060i201309-201402

8 parts on this diagram · 1 diagram in section
