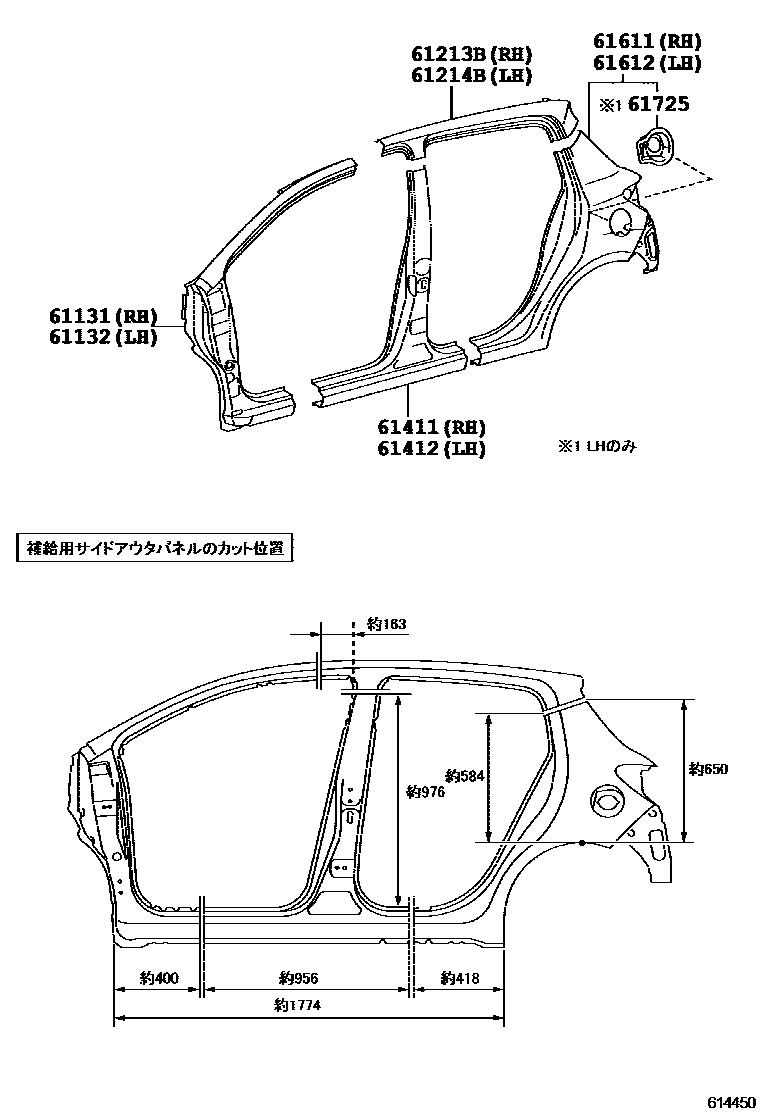

SIDE MEMBER

0001 1������� 0002 1GRMN,������� 0003 1�������,RH 0004 1GRMN,�������,RH 0005 1�������,LH 0006 1GRMN,�������,LH

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-52300iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201606

sub61131-52380

main61131-52310iNCP131..RS201012-201606

sub61131-52390

main61131-52380iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201607-201701

main61131-52390iNCP131..RS201607-201701

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-52270iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201606

sub61132-52340

main61132-52280iNCP131..RS201012-201606

sub61132-52350

main61132-52340iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201607-201701

main61132-52350iNCP131..RS201607-201701

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-52190iKSP130,NCP131,NSP13#..CBU201012-201701

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-52190iKSP130,NCP131,NSP13#..CBU201012-201701

61411PANEL, ROCKER, OUTER RH

main61411-52280iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201012-201701

main61411-52290iNCP131..RS201012-201701

61412PANEL, ROCKER, OUTER LH

main61412-52290iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201012-201701

main61412-52300iNCP131,NHP130..GRS201012-201701

61611PANEL, QUARTER, RH

main61601-52570iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201012-201701

main61601-52580iNCP131,NHP130..GRS201012-201701

61612PANEL, QUARTER, LH

main61602-52590iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201612

sub61602-52720

sub77350-52220

main61602-52600iNCP131..RS201012-201612

sub61602-52730

sub77350-52220

main61602-52720iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201612-201701

main61602-52730iNCP131..RS201612-201701

61725BOX, FUEL INLET

main61725-52120iKSP130,NCP131,NSP13#..CBU201012-201612

sub61725-52160

sub77350-52220

main61725-52160iKSP130,NCP131,NSP13#..CBU201612-201701

9 parts on this diagram · 6 diagrams in section
