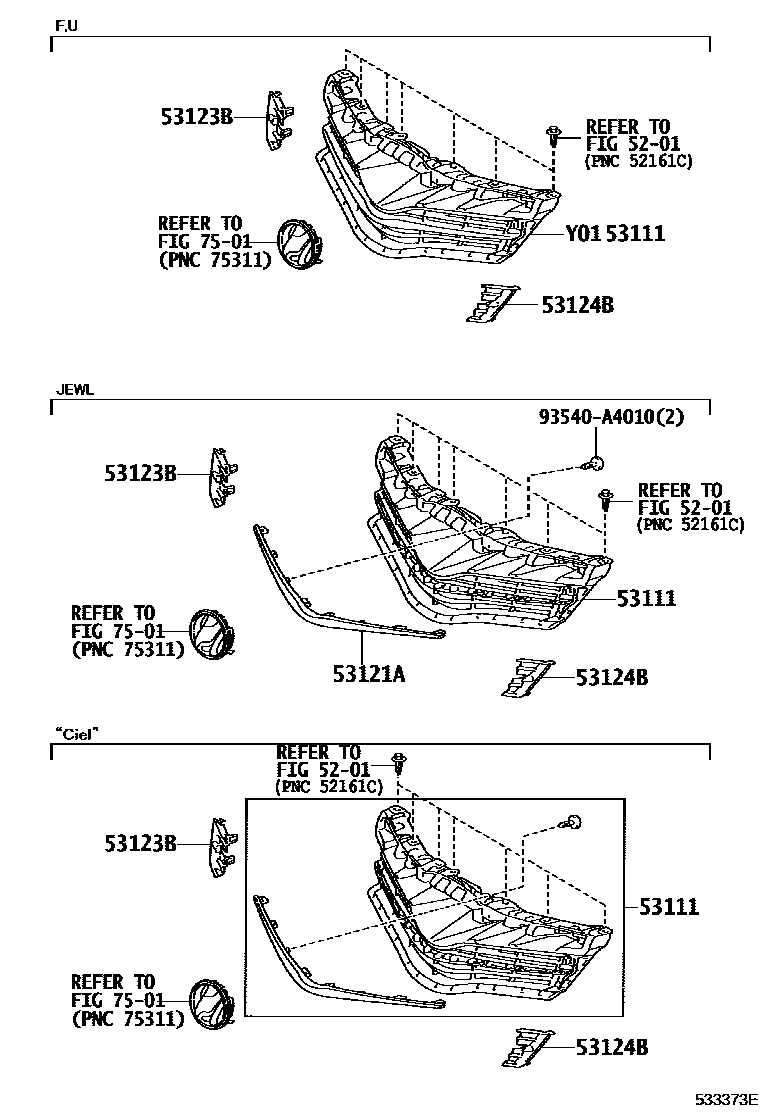

RADIATOR GRILLE

0001 1 0002 1 0003 1 0004 1GRMN 0005 1 0006 1

5201

53111GRILLE, RADIATOR

main53111-52500iKSP130,NCP131,NSP13#..(F,U)..CBU201012-201404

main53111-52620iKSP130,NSP13#..JEWL201012-201404

main53111-52640iNCP131..RS201012-201404

main53111-52650iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201701

main53111-52680iNCP131..RS201404-201701

main53111-52790iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

main53111-52830iNCP131,NHP130..GRS201709

53121AMOULDING, RADIATOR GRILLE

main53121-52130iKSP130,NSP13#..JEWL201012-201404

53123BMOULDING, RADIATOR GRILLE SIDE, RH

main53123-52030iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201404

main53123-52050iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201701

53124BMOULDING, RADIATOR GRILLE SIDE, LH

main53124-52030iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201404

main53124-52050iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201701

7501

93540A4010

main93540-A4010

7 parts on this diagram · 6 diagrams in section
