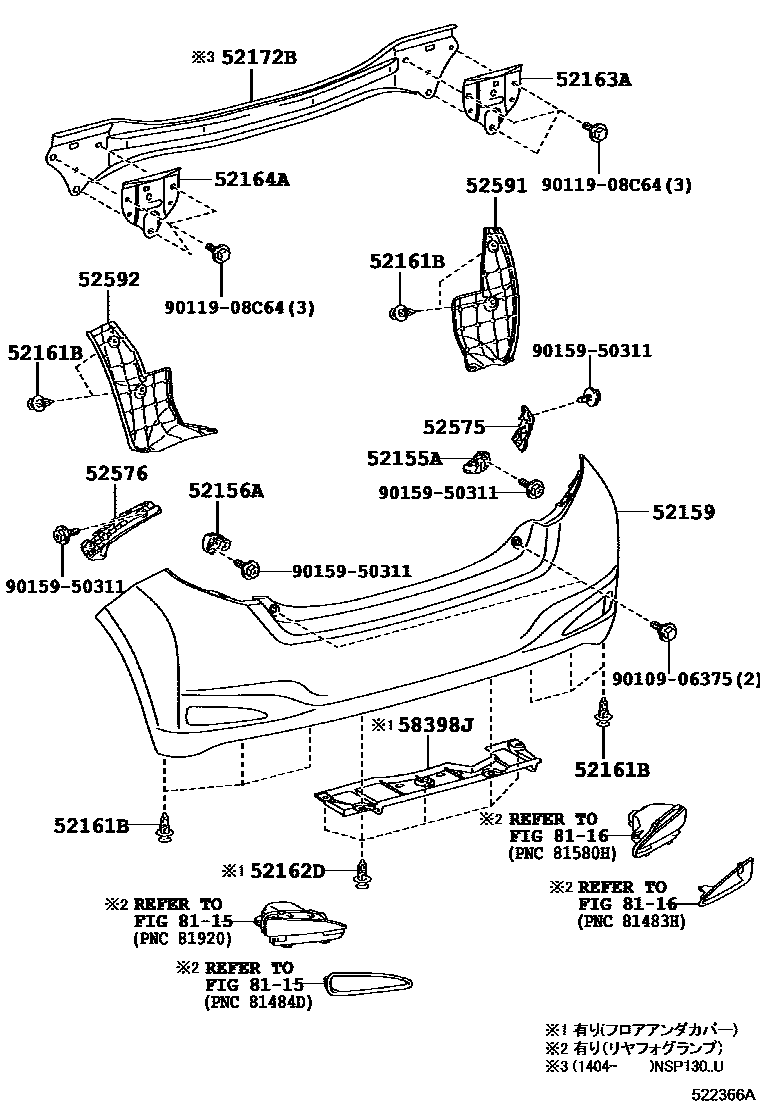

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1G'S OR GRMN 0004 1 0005 1

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-52120iKSP130,NCP131,NSP13#..CBU201012-201701

main52155-52150iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-52120iNCP131,NHP130..GRS201012-201701

main52156-52150iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

52159COVER, REAR BUMPER

main52159-52740-A0iKSP130,NCP131,NSP13#..(F,U)..CBU201012-201701

SUPER WHITE 2,040

sub52159-52957

main52159-52740-A1iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201701

WHITE PEARL CS.,070

sub52159-52957

main52159-52740-B0iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201701

SILVER ME.,1F7

sub52159-52957

main52159-52740-B1iKSP130,NCP131,NSP13#..(F,U)..CBU201012-201701

GRAY ME.,1G3

sub52159-52957

main52159-52740-B2iKSP130,NCP131,NSP13#..(F,U)..CBU201012-201404

GIN BUCK ME.,1J1

sub52159-52957

main52159-52740-C0iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201701

BLACK MC.,209

sub52159-52957

main52159-52740-D0iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201701

SUPER RED 5,3P0

sub52159-52957

main52159-52740-D1iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201212

ROSE ME.OP.,3P3

sub52159-52957

main52159-52740-D2iKSP130,NSP13#..JEWL201012-201701

CHERRY PEARL CS.,3S7

sub52159-52957

main52159-52740-D3iKSP130,NSP13#..JEWL201012-201404

DARK RED MC.,3Q8

sub52159-52957

main52159-52740-D4iKSP130,NSP13#..F..CBU201212-201701

DEEP RED M.M.,3R9

sub52159-52957

main52159-52740-D5iKSP130,NSP130..JEWL;NSP135..(F,JEWL)..CBU201404-201701

DK. RED M.M.,3Q3

sub52159-52957

main52159-52740-E0iKSP130,NSP13#..(F,JEWL)..CBU201012-201507

DK. BROWN M.M.,4U3

sub52159-52957

main52159-52740-E1iKSP130,NSP13#..JEWL201109-201205

COPPER ME.,4T4

sub52159-52957

main52159-52740-E2iKSP130,NSP13#..JEWL201205-201212

ORANGE M.M.,4S9

sub52159-52957

main52159-52740-E3iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201701

BEIGE M.M.,4R3

sub52159-52957

main52159-52740-E4iKSP130,NSP13#..JEWL201404-201507

BRONZE M.M.,4T3

sub52159-52957

main52159-52740-E5iKSP130,NSP13#..JEWL201404-201507

COPPER M.M.,4T9

sub52159-52957

main52159-52740-E6iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201507-201701

ORANGE ME.,4R8

sub52159-52957

main52159-52740-E7iKSP130,NSP13#..JEWL201507-201701

CREAM BEIGE,4V9

sub52159-52957

main52159-52740-F0iKSP130,NSP13#..JEWL201109-201404

YELLOW,5A6

sub52159-52957

main52159-52740-F1iKSP130,NSP13#..F..CBU201212-201404

SILKY GOLD M.M.,5A7

sub52159-52957

main52159-52740-F2iKSP130,NCP131,NSP13#..(F,U)..CBU201404-201701

LUMINOUS YELLOW,5B5

sub52159-52957

main52159-52740-G0iKSP130,NSP13#..JEWL201012-201109

GREEN M.M.,6U1

sub52159-52957

main52159-52740-G1iKSP130,NSP13#..JEWL201404-201701

JADE GREEN METALLIC,6V5

sub52159-52957

main52159-52740-H1iKSP130,NSP13#..JEWL201012-201109

TURQUOISE ME.,777

sub52159-52957

main52159-52740-J0iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201404

LT.BLUE M.M.,8S7

sub52159-52957

main52159-52740-J1iKSP130,NSP13#..JEWL201012-201404

BLUE M.M.,8T0

sub52159-52957

main52159-52740-J2iKSP130,NSP13#..JEWL201109-201205

LT. BLUE M.M.,8S9

sub52159-52957

main52159-52740-J3iKSP130,NSP13#..JEWL201205-201212

GRAYISH BLUE M.M.,8T1

sub52159-52957

main52159-52740-J4iKSP130,NSP13#..F..CBU201212-201404

DK.BLUE MC.,8S6

sub52159-52957

main52159-52740-J5iKSP130,NCP131,NSP13#..(F,U)..CBU201404-201701

BLUE ME.,8T7

sub52159-52957

main52159-52740-J6iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201701

COOL SODA ME.,8V7

sub52159-52957

main52159-52740-J7iKSP130,NSP13#..JEWL201507-201701

ICEBERG SILVER M.M.,8V0

sub52159-52957

main52159-52740-K0iKSP130,NSP13#..JEWL201012-201109

REDDISH PURPLE M.M.,9AC

sub52159-52957

main52159-52740-K1iKSP130,NSP13#..F..CBU201205-201404

LT.PURPLE M.M.,9AE

sub52159-52957

main52159-52760-A0iNCP131..RS201012-201701

SUPER WHITE 2,040

sub52159-52967

main52159-52760-B0iNCP131..RS201012-201701

SILVER ME.,1F7

sub52159-52967

main52159-52760-B1iNCP131..RS201012-201701

GRAY ME.,1G3

sub52159-52967

main52159-52760-B2iNCP131..RS201012-201404

GIN BUCK ME.,1J1

sub52159-52967

main52159-52760-C0iNCP131..RS201012-201701

BLACK MC.,209

sub52159-52967

main52159-52760-D0iNCP131..RS201012-201701

SUPER RED 5,3P0

sub52159-52967

main52159-52760-E2iNCP131..RS201507-201701

ORANGE ME.,4R8

sub52159-52967

main52159-52760-F1iNCP131..RS201404-201701

LUMINOUS YELLOW,5B5

sub52159-52967

main52159-52760-H0iNCP131..RS201012-201404

TURQUOISE M.M.,788

sub52159-52967

main52159-52760-J2iNCP131..RS201404-201701

BLUE ME.,8T7

sub52159-52967

main52159-52820-A0iNCP131,NHP130..GRS201709-202001

SUPER WHITE 2,040

sub52159-52969

main52159-52820-A1iNCP131,NHP130..GRS201709-202001

WHITE PEARL CS.,070

sub52159-52969

main52159-52820-B0iNCP131,NHP130..GRS201709-202001

SILVER ME.,1F7

sub52159-52969

main52159-52820-B1iNCP131,NHP130..GRS201709-202001

GRAY ME.,1G3

sub52159-52969

main52159-52820-C0iNCP131,NHP130..GRS201709-202001

BLACK MC.,209

sub52159-52969

main52159-52820-D0iNCP131,NHP130..GRS201709-202001

SUPER RED 5,3P0

sub52159-52969

main52159-52820-F1iNCP131,NHP130..GRS201709-202001

LUMINOUS YELLOW,5B5

sub52159-52969

main52159-52820-J0iNCP131,NHP130..GRS201709-202001

BLUE ME.,8T7

sub52159-52969

main52159-52870-A0iKSP130,NHP130,NSP13#..(F,U)..CBU201701-202001

SUPER WHITE 2,040

sub52159-52983

main52159-52870-A1iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701-202001

WHITE PEARL CS.,070

sub52159-52983

main52159-52870-B0iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701-202001

SILVER ME.,1F7

sub52159-52983

main52159-52870-B1iKSP130,NHP130,NSP13#..(F,U)..CBU201701-202001

GRAY ME.,1G3

sub52159-52983

main52159-52870-C0iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701-202001

BLACK MC.,209

sub52159-52983

main52159-52870-D0iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701-202001

SUPER RED 5,3P0

sub52159-52983

main52159-52870-D1iKSP130,NHP130,NSP13#..(F,JEWL)..CBU201701-202001

DK. RED M.M.,3Q3

sub52159-52983

main52159-52870-D2iKSP130,NHP130,NSP13#..(F,JEWL)..CBU201701-202001

DEEP RED M.M.,3R9

sub52159-52983

main52159-52870-D3iKSP130,NHP130,NSP13#..JEWL201701-201910

CHERRY PEARL CS.,3S7

sub52159-52983

main52159-52870-D4iKSP130..F..CBU201901-202001

RED MC.,3T3

sub52159-52983

main52159-52870-E0iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701-201910

ORANGE ME.,4R8

sub52159-52983

main52159-52870-E1iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701-202001

AVANT-GARDE BRONZE ME.,4V8

sub52159-52983

main52159-52870-F0iKSP130,NHP130,NSP13#..(F,U)..CBU201701-202001

LUMINOUS YELLOW,5B5

sub52159-52983

main52159-52870-G0iKSP130,NHP130,NSP13#..JEWL201701-202001

OLIVE M.M.,6T7

sub52159-52983

main52159-52870-G1iKSP130,NHP130,NSP13#..JEWL201701-201910

JADE GREEN METALLIC,6V5

sub52159-52983

main52159-52870-J0iKSP130,NHP130,NSP13#..(F,JEWL)..CBU201701-202001

DK.BLUE MC.,8S6

sub52159-52983

main52159-52870-J1iKSP130,NHP130,NSP13#..(F,U)..CBU201701-202001

BLUE ME.,8T7

sub52159-52983

main52159-52870-J3iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701-202001

CLEAR BLUE CS.,8Y3

sub52159-52983

main52159-52870-K0iKSP130..F..CBU201901-202001

JEWELRY PURPLE M.M.,9AR

sub52159-52983

52161BPIECE, REAR BUMPER

main52161-16010iNCP131..RS201404-201701

main52161-16010iNCP131..RS201404-201701

main52161-16010iNCP131,NHP130..GRS201012-201404

52162DPIECE, REAR BUMPER

main52161-16010iNSP130..CBU201012-201404

main52161-16010iNCP131,NSP130..(F,JEWL,U)..CBU201404-201701

52163APLATE, REAR BUMPER, RH

main52163-52080iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201701

main52163-52120iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

52164APLATE, REAR BUMPER, LH

main52164-52080iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201701

main52164-52120iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

52172BREINFORCEMENT, REAR BUMPER, NO.2

main52172-52020iNCP131,NSP130..(RS,U)..CBU201012-201701

52575RETAINER, REAR BUMPER SIDE, RH

main52575-52170iKSP130,NCP131,NSP13#..CBU201012-201111

sub52575-52171

main52575-52171iKSP130,NCP131,NSP13#..CBU201112-201701

main52575-52210iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

52576RETAINER, REAR BUMPER SIDE, LH

main52576-52150iKSP130,NCP131,NSP13#..CBU201012-201111

sub52576-52151

main52576-52151iNCP131,NHP130..GRS201112-201701

main52576-52190iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

52591SEAL, REAR BUMPER SIDE, RH

main52591-52300iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201701

main52591-52320iNCP131..RS201012-201701

main52591-52350iNCP131,NHP130..GRS201709

main52591-52380iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

52592SEAL, REAR BUMPER SIDE, LH

main52592-52290iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201012-201701

main52592-52310iNCP131..RS201012-201701

main52592-52340iNCP131,NHP130..GRS201709

main52592-52370iKSP130,NHP130,NSP13#..(F,JEWL,U)..CBU201701

58398JCOVER, FLOOR UNDER, NO.1

main58398-52070iNSP130..CBU201012-201404

sub58398-52080

main58398-52080iNHP130,NSP130..(F,JEWL,U)..CBU201404-201701

8115

8116

9010906375

main90109-06375

9011908C64

main90119-08C64

9015950311

main90159-50311

18 parts on this diagram · 5 diagrams in section
