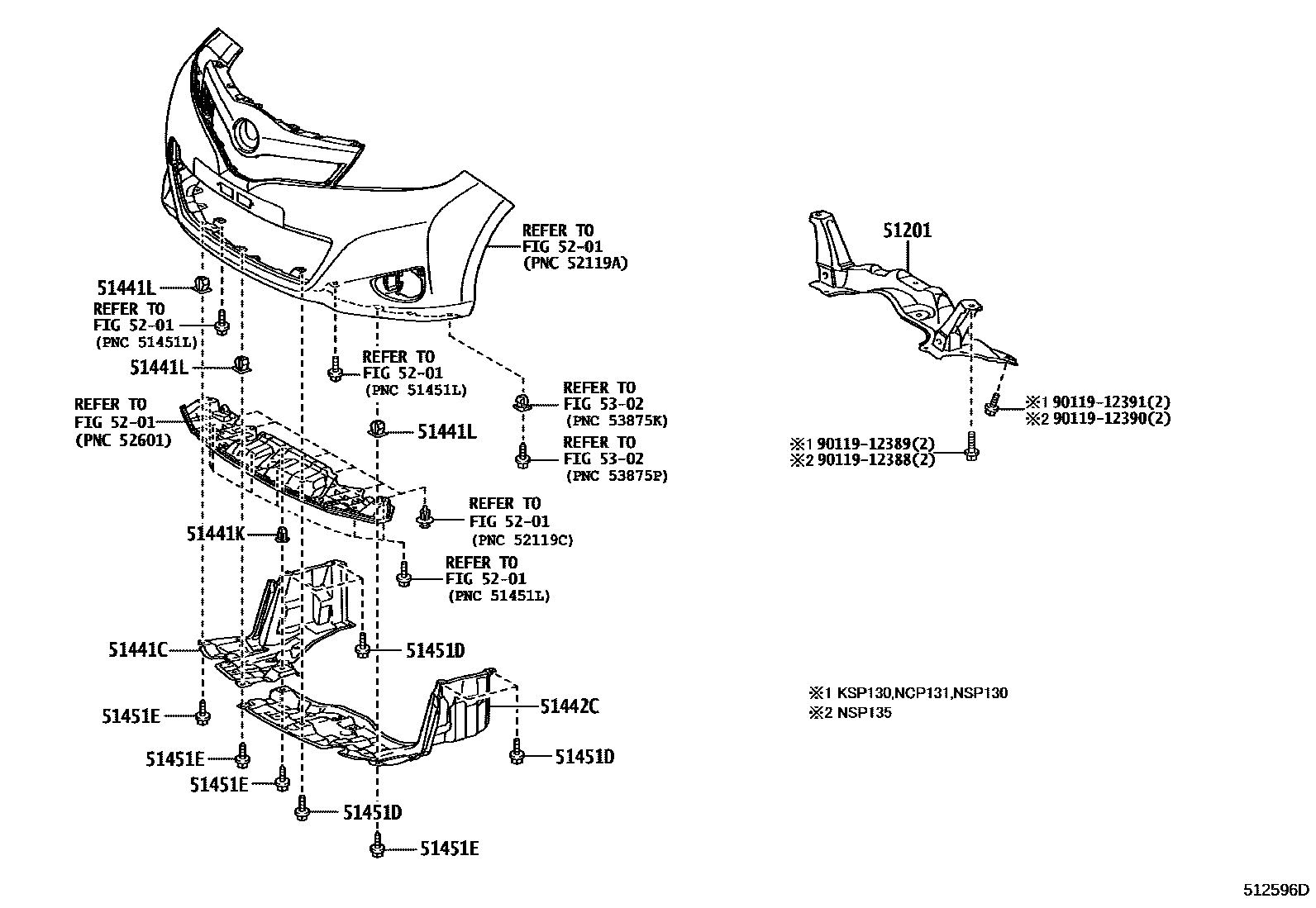

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1G'S 0003 1GRMN 0004 1 0005 1 0006 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52080iKSP130,NCP131,NSP130..CBU201012-201102

sub51201-52083

main51201-52083iKSP130,NCP131,NSP130..CBU201102-201112

sub51201-52084

main51201-52084iKSP130,NCP131,NSP130..CBU201201-201204

sub51201-52085

main51201-52085iKSP130,NCP131,NSP130..CBU201205-201206

sub51201-52086

main51201-52086iKSP130,NCP131,NSP130..CBU201206-201210

sub51201-52087

main51201-52087iKSP130,NCP131,NSP130..CBU201211-201701

main51201-52100iNSP135..CBU201012-201102

sub51201-52103

main51201-52103iNSP135..CBU201102-201105

sub51201-52104

main51201-52104iNSP135..CBU201106-201204

sub51201-52105

main51201-52105iNSP135..CBU201205-201206

sub51201-52106

main51201-52106iNSP135..CBU201206-201210

sub51201-52107

main51201-52107iNSP135..CBU201211-201701

51441CCOVER, ENGINE UNDER, RH

main51441-52180iNCP131,NSP13#..CBU201012-201404

main51441-52270iKSP130..CBU201012-201701

main51441-52310iNHP130..GRS201709

main51441-52330iNCP131,NSP13#..CBU201404-201701

51441KGROMMET(FOR ENGINE UNDER COVER)

main90189-06076iKSP130,NCP131,NHP130,NSP13#..CBU201012-202001

51441LGROMMET, NO.2(FOR ENGINE UNDER COVER)

main90189-06193iKSP130,NCP131,NSP13#..CBU201012-201105

main90189-06237iKSP130,NCP131,NSP13#..CBU201106-202001

51442CCOVER, ENGINE UNDER, LH

main51442-52090iNCP131..RS201404-201701

main51442-52090iNCP131..RS201404-201701

main51442-52090iKSP130..CBU201012-201404

main51442-52150iNHP130..GRS201709

main51442-52160iNCP131,NSP13#..CBU201404-201701

51451DSCREW, NO.1

main90119-06767iKSP130,NCP131,NSP13#..CBU201012-201701

51451ESCREW, NO.2

main90159-60383iKSP130,NCP131,NSP13#..CBU201012-202001

5201

5302

9011912388

main90119-12388

9011912389

main90119-12389

9011912390

main90119-12390

9011912391

main90119-12391

13 parts on this diagram · 6 diagrams in section
