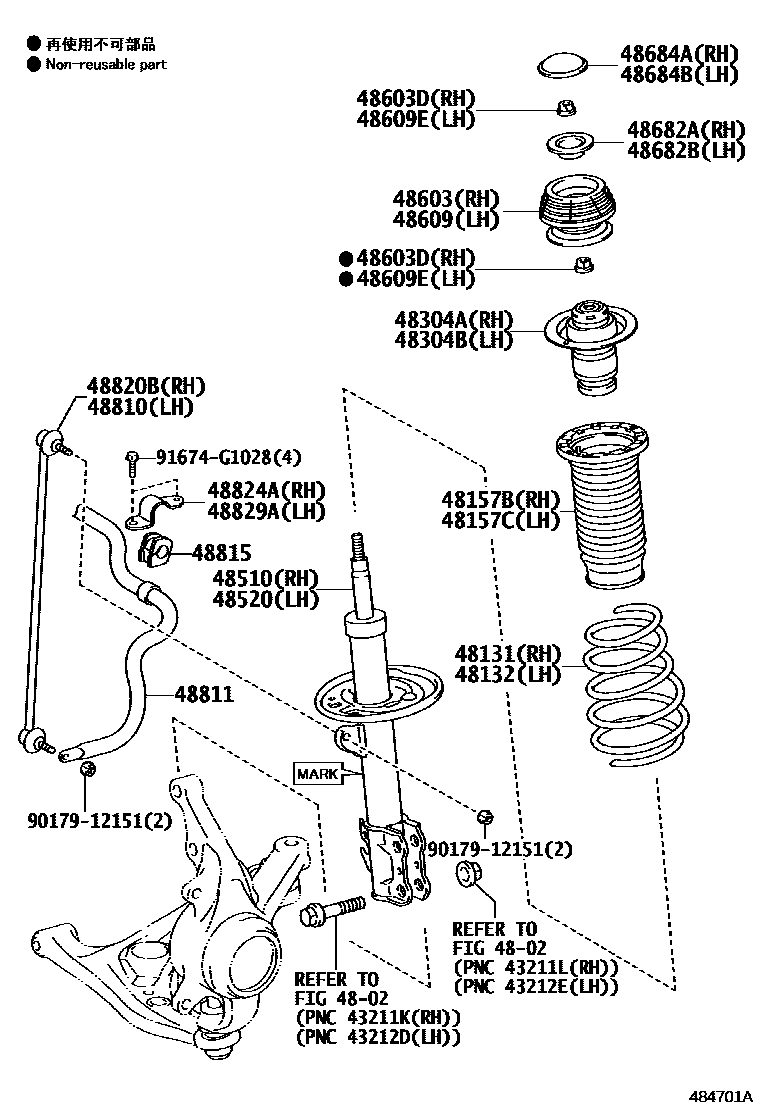

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1G'S

4802

48131SPRING, FRONT COIL, RH

main48131-52B10iNSP135..U..CBU201012-201404

sub48131-52M20

main48131-52B70iNSP135..(F,JEWL)..CBU201012-201404

sub48131-52M30

main48131-52F10iNSP130..(F,JEWL)..CBU201012-201402

sub48131-52F11

main48131-52F11iNSP130..(F,JEWL)..CBU201403-201404

main48131-52F51iNHP130..(F,JEWL,U)..CBU201701-202001

main48131-52F90iNSP130..U..CBU;KSP130,NCP131..(F,JEWL,U)..CBU201012-201404

sub48131-52M50

main48131-52G70iNCP131..RS201012-201402

sub48131-52G71

main48131-52G71iNCP131..RS201403-201404

main48131-52M00iNCP131..RS201404-201607

sub48131-52M01

main48131-52M01iNCP131..RS201608-201701

main48131-52M20iNSP135..U..CBU201404-201606

sub48131-52M21

main48131-52M21iNSP135..(F,JEWL)..CBU201701-202001

main48131-52M21iNSP135..U..CBU201607-201701

main48131-52M30iNSP135..(F,JEWL)..CBU201404-201605

sub48131-52M31

main48131-52M31iNSP135..(F,JEWL)..CBU201606-202001

main48131-52M50iKSP130,NCP131,NSP130..(F,JEWL,U)..CBU201404-201605

sub48131-52M51

main48131-52M51iKSP130,NCP131,NSP130..(F,JEWL,U)..CBU201606-202001

main48131-52N90iNCP131201709-202001

main48131-52P20iNHP130..GRS201709-202001

48132SPRING, FRONT COIL, LH

main48131-52B10iNSP135..(F,JEWL)..CBU201012-201404

sub48131-52M20

main48131-52B70iNSP135..(F,JEWL)..CBU201012-201404

sub48131-52M30

main48131-52F10iNSP130..(F,JEWL)..CBU201012-201402

sub48131-52F11

main48131-52F11iNSP130..(F,JEWL)..CBU201403-201404

main48131-52F51iNHP130..(F,JEWL,U)..CBU201701-202001

main48131-52F90iNSP130..U..CBU;KSP130,NCP131..(F,JEWL,U)..CBU201012-201404

sub48131-52M50

main48131-52G70iNCP131..RS201012-201402

sub48131-52G71

main48131-52G71iNCP131..RS201403-201404

main48131-52M00iNCP131..RS201404-201607

sub48131-52M01

main48131-52M01iNCP131..RS201608-201701

main48131-52M20iNSP135..(F,JEWL)..CBU201404-201606

sub48131-52M21

main48131-52M21iNSP135..(F,JEWL)..CBU201701-202001

main48131-52M21iNSP135..U..CBU201607-201701

main48131-52M30iNSP135..(F,JEWL)..CBU201404-201605

sub48131-52M31

main48131-52M31iNSP135..(F,JEWL)..CBU201606-202001

main48131-52M50iKSP130,NCP131,NSP130..(F,JEWL,U)..CBU201404-201605

sub48131-52M51

main48131-52M51iKSP130,NCP131,NSP130..(F,JEWL,U)..CBU201606-202001

main48131-52N90iNCP131201709-202001

main48131-52P20iNHP130..GRS201709-202001

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-52030iKSP130,NCP131,NSP13#..CBU201012-201401

main48157-52040iNCP131,NSP130..CBU201404-201605

main48157-52040iNCP131,NSP130..CBU201404-201605

main48157-52040iKSP130,NSP135..CBU201404-201604

main48157-52040iKSP130,NCP131,NSP13#..CBU201402-201404

main48157-52040iNCP131..RS201404-201604

main48157-52040iNCP131..RS201404-201604

main48157-52050iNCP131,NSP13#..CBU201605-201701

main48157-52050iKSP130,NCP131,NHP130,NSP13#..CBU201701-202001

main48157-52060iKSP130..CBU201605-201606

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-52030iKSP130,NCP131,NSP13#..CBU201012-201401

main48157-52040iNCP131..RS201404-201604

main48157-52040iKSP130,NCP131,NSP13#..CBU201402-201404

main48157-52040iKSP130,NSP135..CBU201404-201604

main48157-52040iKSP130,NSP135..CBU201404-201604

main48157-52040iNCP131,NSP130..CBU201404-201605

main48157-52040iNCP131,NSP130..CBU201404-201605

main48157-52050iKSP130,NCP131,NHP130,NSP13#..CBU201701-202001

main48157-52050iNCP131,NSP13#..CBU201605-201701

main48157-52060iKSP130..CBU201605-201606

48304ASEAT SUB-ASSY, BUMPER, RH

main48304-52040iKSP130,NSP135..CBU;NSP130..(F,JEWL)..CBU201012-201404

sub48304-52041

main48304-52050iNCP131,NSP130..(RS,U)..CBU201012-201206

sub48304-52051

main48304-52051iKSP130,NSP130..(F,JEWL)..CBU201207-201404

main48304-52101iKSP130,NSP135..CBU201404-202001

main48304-52111iKSP130..CBU201404-201701

main48304-52111iNCP131,NHP130,NSP130..CBU201701-202001

48304BSEAT SUB-ASSY, BUMPER, LH

main48304-52040iKSP130,NSP135..CBU;NSP130..(F,JEWL)..CBU201012-201404

sub48304-52041

main48304-52050iNCP131,NSP130..(RS,U)..CBU201012-201206

sub48304-52051

main48304-52051iNCP131,NSP130..(RS,U)..CBU201207-201404

main48304-52101iKSP130,NSP135..CBU201404-202001

main48304-52111iNCP131,NSP130..CBU201404-201701

main48304-52111iNCP131,NHP130,NSP130..CBU201701-202001

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-52F10iKSP130..CBU201404-201607

main48510-52F70iKSP130,NSP130..(F,JEWL)..CBU201012-201205

main48510-52F71iKSP130,NSP130..(F,JEWL)..CBU201205-201401

sub48510-52F72

main48510-52F72iKSP130,NSP130..(F,JEWL)..CBU201402-201404

main48510-52F80iKSP130,NSP130..(F,JEWL)..CBU201012-201106

sub48510-52F81

main48510-52F80iKSP130,NSP130..(F,JEWL)..CBU201012-201106

sub48510-52F81

main48510-52F81iKSP130,NSP130..(F,JEWL)..CBU201107-201205

main48510-52F81iNCP131,NSP130..U..CBU201107-201205

main48510-52F82iKSP130,NSP130..(F,JEWL)..CBU201205-201401

sub48510-52F83

main48510-52F82iNCP131,NSP130..U..CBU201205-201401

sub48510-52F83

main48510-52F83iNCP131,NSP130..U..CBU201402-201404

sub48510-52C20

main48510-52F83iNCP131,NSP130..U..CBU201402-201404

sub48510-52C20

main48510-52F90iNCP131..RS201012-201101

sub48510-52F91

main48510-52F91iNCP131..RS201102-201401

sub48510-52F92

main48510-52F92iNCP131..RS201402-201404

main48510-52G00iNSP135..CBU201012-201401

sub48510-52G01

main48510-52G01iNSP135..CBU201402-201404

main48510-52J70iNSP130..(F,JEWL)..CBU201404-201605

main48510-52J80iNCP131,NSP130..U..CBU201404-201605

main48510-52J80iKSP130,NSP130..(F,JEWL)..CBU201404-201605

main48510-52J90iNCP131..RS201404-201605

main48510-52K00iNSP135..CBU201404-201605

main48510-52M90iKSP130..CBU201701-201809

sub48510-52S00

main48510-52N00iNSP130..(F,JEWL)..CBU201701-201809

sub48510-52S10

main48510-52N10iNSP130..U..CBU201701-201809

sub48510-52S20

main48510-52N20iNCP131201709-201809

sub48510-52S30

main48510-52N30iNSP135..CBU201701-201809

sub48510-52S40

main48510-52N40iNHP130..(F,JEWL)..CBU201701-201809

sub48510-52S50

main48510-52N50iNHP130..U201701-201809

sub48510-52S60

main48510-52Q10iNSP130..(F,JEWL)..CBU201605-201701

main48510-52Q20iKSP130,NSP130..(F,JEWL)..CBU201605-201701

main48510-52Q20iNCP131,NSP130..U..CBU201605-201701

main48510-52Q30iNCP131..RS201605-201701

main48510-52Q40iNSP135..CBU201605-201701

main48510-52Q60iKSP130..CBU201607-201701

main48510-52R20iNHP130..GRS201709-201809

sub48510-52S70

main48510-52S00iKSP130..CBU201810-202001

main48510-52S10iNSP130..(F,JEWL)..CBU201810-202001

main48510-52S20iNSP130..U..CBU201810-202001

main48510-52S30iNCP131201810-202001

main48510-52S40iNSP135..CBU201810-202001

main48510-52S50iNHP130..(F,JEWL)..CBU201810-202001

sub48510-52S60

main48510-52S60iNHP130..U201810-202001

main48510-52S70iNHP130..GRS201810-202001

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-52410iKSP130..CBU201404-201607

main48520-52470iKSP130,NSP130..(F,JEWL)..CBU201012-201205

main48520-52471iKSP130,NSP130..(F,JEWL)..CBU201205-201401

sub48520-52472

main48520-52472iKSP130,NSP130..(F,JEWL)..CBU201402-201404

main48520-52480iKSP130,NSP130..(F,JEWL)..CBU201012-201106

sub48520-52481

main48520-52480iNCP131,NSP130..U..CBU201012-201106

sub48520-52481

main48520-52481iNCP131,NSP130..U..CBU201107-201205

main48520-52481iKSP130,NSP130..(F,JEWL)..CBU201107-201205

main48520-52482iNCP131,NSP130..U..CBU201205-201401

sub48520-52483

main48520-52482iNCP131,NSP130..U..CBU201205-201401

sub48520-52483

main48520-52483iNCP131,NSP130..U..CBU201402-201404

sub48520-52130

main48520-52483iKSP130,NSP130..(F,JEWL)..CBU201402-201404

sub48520-52130

main48520-52490iNCP131..RS201012-201101

sub48520-52491

main48520-52491iNCP131..RS201102-201401

sub48520-52492

main48520-52492iNCP131..RS201402-201404

main48520-52500iNSP135..CBU201012-201401

sub48520-52501

main48520-52501iNSP135..CBU201402-201404

main48520-52670iNSP130..(F,JEWL)..CBU201404-201605

main48520-52680iNCP131,NSP130..U..CBU201404-201605

main48520-52680iKSP130,NSP130..(F,JEWL)..CBU201404-201605

main48520-52690iNCP131..RS201404-201605

main48520-52700iNSP135..CBU201404-201605

main48520-52A90iKSP130..CBU201701-201809

sub48520-52F00

main48520-52B00iNSP130..(F,JEWL)..CBU201701-201809

sub48520-52F10

main48520-52B10iNSP130..U..CBU201701-201809

sub48520-52F20

main48520-52B20iNCP131201709-201809

sub48520-52F30

main48520-52B30iNSP135..CBU201701-201809

sub48520-52F40

main48520-52B40iNHP130..(F,JEWL)..CBU201701-201809

sub48520-52F50

main48520-52B50iNHP130..U201701-201809

sub48520-52F60

main48520-52D10iNSP130..(F,JEWL)..CBU201605-201701

main48520-52D20iNCP131,NSP130..U..CBU201605-201701

main48520-52D20iNCP131,NSP130..U..CBU201605-201701

main48520-52D30iNCP131..RS201605-201701

main48520-52D40iNSP135..CBU201605-201701

main48520-52D60iKSP130..CBU201607-201701

main48520-52E20iNHP130..GRS201709-201809

sub48520-52F70

main48520-52F00iKSP130..CBU201810-202001

main48520-52F10iNSP130..(F,JEWL)..CBU201810-202001

main48520-52F20iNSP130..U..CBU201810-202001

main48520-52F30iNCP131201810-202001

main48520-52F40iNSP135..CBU201810-202001

main48520-52F50iNHP130..(F,JEWL)..CBU201810-202001

sub48520-52F60

main48520-52F60iNHP130..U201810-202001

main48520-52F70iNHP130..GRS201810-202001

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-52100iKSP130,NCP131,NSP13#..CBU201012-202001

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90179-12145iKSP130,NCP131,NSP13#..CBU201012-202001

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-52100iKSP130,NCP131,NSP13#..CBU201012-202001

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90179-12145iKSP130,NCP131,NSP13#..CBU201012-202001

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-52040iKSP130,NCP131,NSP13#..CBU201012-202001

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-52040iKSP130,NCP131,NSP13#..CBU201012-202001

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-52020iKSP130,NCP131,NSP13#..CBU201012-202001

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-52020iKSP130,NCP131,NSP13#..CBU201012-202001

48810LINK ASSY, FRONT STABILIZER, LH

main48820-52030iKSP130,NCP131,NSP13#..CBU201012-201701

48811BAR, STABILIZER, FRONT

main48811-52160iKSP130,NSP130..(F,JEWL)..CBU201404-201701

main48811-52180iNSP135..CBU201012-201701

main48811-52240iKSP130,NSP130..JEWL201012-201404

main48811-52240iNCP131,NSP130..(RS,U)..CBU201404-201701

main48811-52240iNSP130..U..CBU;NCP131,NHP130..CBU201701

main48811-52250iKSP130,NSP130..(F,JEWL)..CBU201012-201404

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-52080iKSP130,NSP135..CBU;NSP130..(F,JEWL)..CBU201012-201701

main48815-52090iKSP130,NSP130..F..CBU201012-201404

main48815-52090iNSP130..U..CBU;NCP131,NHP130..CBU201701

main48815-52090iNCP131,NSP130..(RS,U)..CBU201404-201701

main48815-52120iKSP130,NSP130..(F,JEWL)..CBU201012-201404

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-52030iKSP130,NCP131,NSP13#..CBU201012-201701

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-52060iKSP130,NCP131,NSP13#..CBU201012-201701

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-52060iKSP130,NCP131,NHP130,NSP13#..CBU201012-201701

9017912151

main90179-12151

91674G1028

main91674-G1028

25 parts on this diagram · 3 diagrams in section
