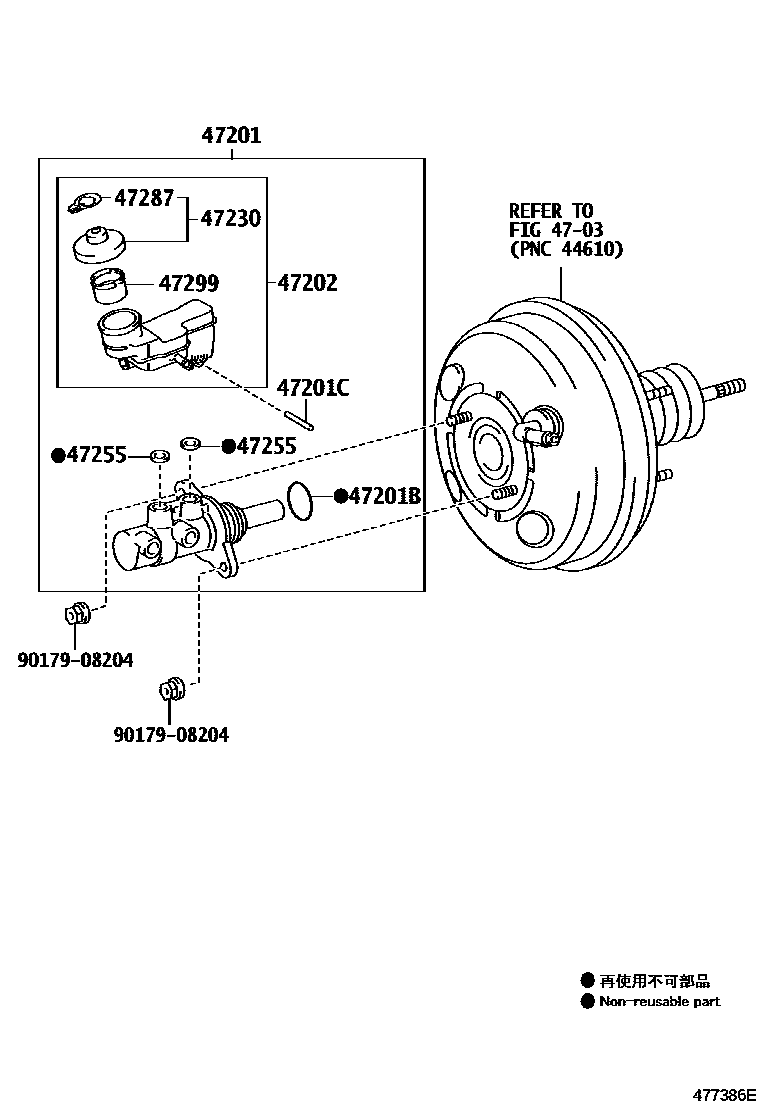

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-52492supersedes 47201-52482iNCP131201709

main47201-52560iKSP130,NSP130..CBU201012-201205

sub47201-52561

main47201-52580iKSP130,NSP130..CBU201205-201404

main47201-52590iKSP130,NCP131,NSP13#..(F,JEWL,U)..CBU201404-201701

main47201-52490supersedes 47201-52492iNCP131..RS201012-201203

main47201-52491supersedes 47201-52481iNCP131..RS201204-201205

main47201-52570iNSP130..F..CBU201012-201205

sub47201-52571

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iKSP130,NCP131,NSP13#..CBU201012-201404

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iKSP130,NCP131,NSP13#..CBU201012-201404

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-52260iKSP130,NCP131,NSP13#..CBU201012-201404

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iKSP130,NCP131,NSP13#..CBU201012-201404

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001×2iKSP130,NCP131,NSP13#..CBU201012-201404

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iKSP130,NCP131,NSP13#..CBU201012-201404

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iKSP130,NCP131,NSP13#..CBU201012-201404

9017908204

main90179-08204
