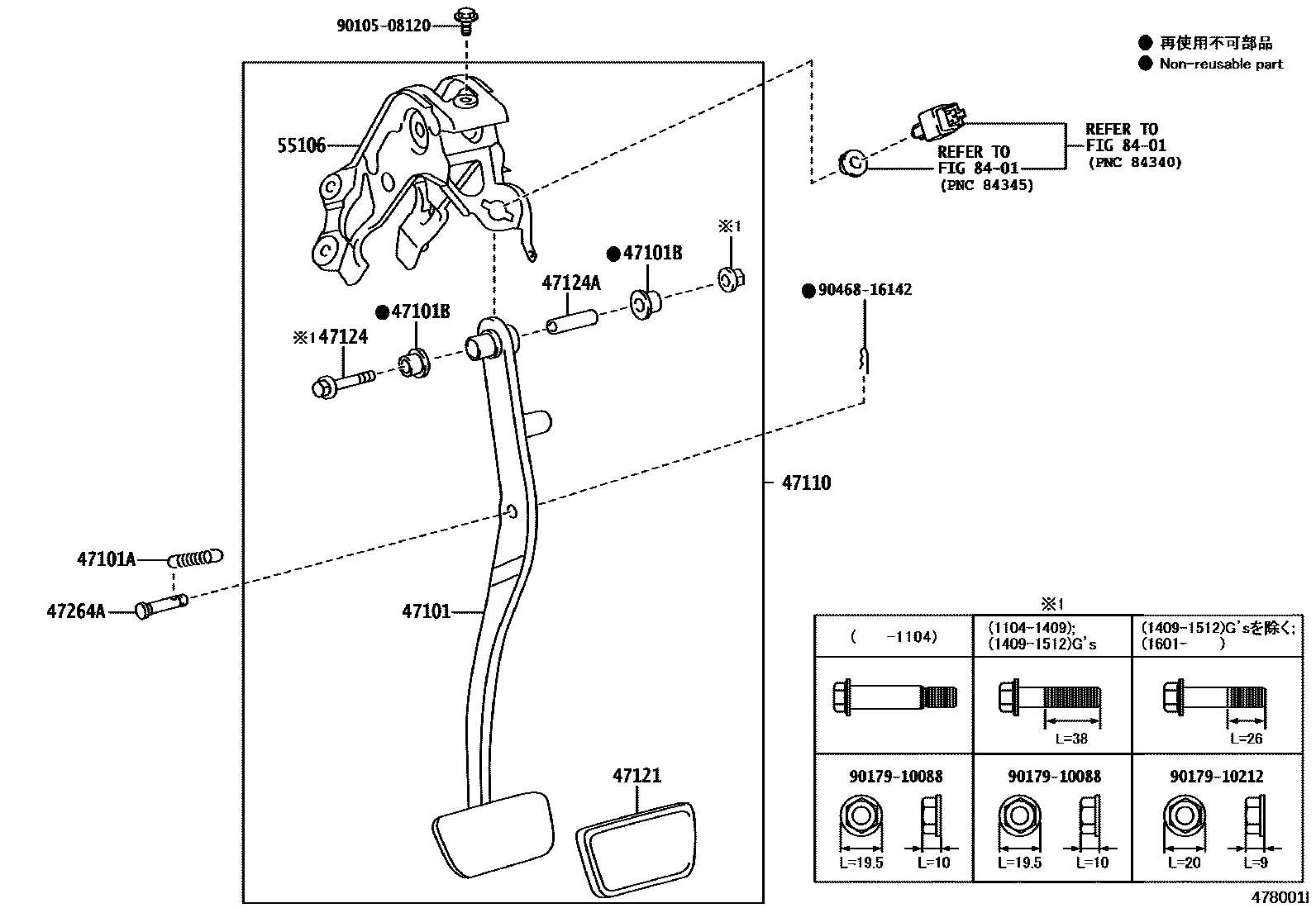

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-52230iNCP131..5F¥2,620201012-201112

main47101-52240iKSP130,NCP131,NSP13#..CVT..CBU¥2,790201012-201112

sub47101-52241¥2,330

main47101-52241iKSP130,NCP131,NSP13#..CVT..CBU¥2,330201201-201404

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iKSP130,NCP131,NSP13#..CBU¥180201012-201205

main90506-14088iKSP130,NCP131,NSP13#..CBU¥120201205-201701

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iKSP130,NCP131,NSP13#..CBU¥120201012-202001

47110SUPPORT ASSY, BRAKE PEDAL

main47110-52261iNCP131..5F¥10,900201201-201404

main47110-52390iNHP130..CBU¥6,800201701-202001

main47110-52400iNCP131..5F¥6,800201404-202001

main47110-52410iKSP130,NCP131,NSP13#..CVT..CBU¥6,800201404-202001

47121PAD, BRAKE PEDAL

main31321-52010iNCP131..5F¥200201012-201501

main31321-52020iNCP131..5F¥200201502-202001

main47121-52010iKSP130,NCP131,NSP13#..CVT..CBU¥260201012-201408

main47121-52020iKSP130,NCP131,NSP13#..CVT..CBU¥260201409-202001

47124SHAFT, BRAKE PEDAL

main90101-10039iNHP130..CBU¥160201701-202001

main90105-10444iKSP130,NCP131,NSP13#..CBU¥160201104-201409

main90109-10167iKSP130,NCP131,NSP13#..CBU¥190201012-201104

main91552-81055iKSP130,NCP131,NSP13#..CBU¥160201409-202001

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iKSP130,NCP131,NSP13#..CBU¥370201104-202001

47264APIN(FOR PUSH ROD)

main90249-08051iKSP130,NCP131,NSP13#..CBU¥170201012-201701

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-52130iKSP130,NCP131,NSP13#..CBU¥3,370201012-201104

sub55106-52H01¥4,120

main55106-52131iKSP130,NCP131,NSP13#..CBU¥2,800201104-201404

8401

9010508120

main90105-08120¥90

9017910088

main90179-10088¥100

9017910212

main90179-10212¥80

9046816142

main90468-16142¥70
