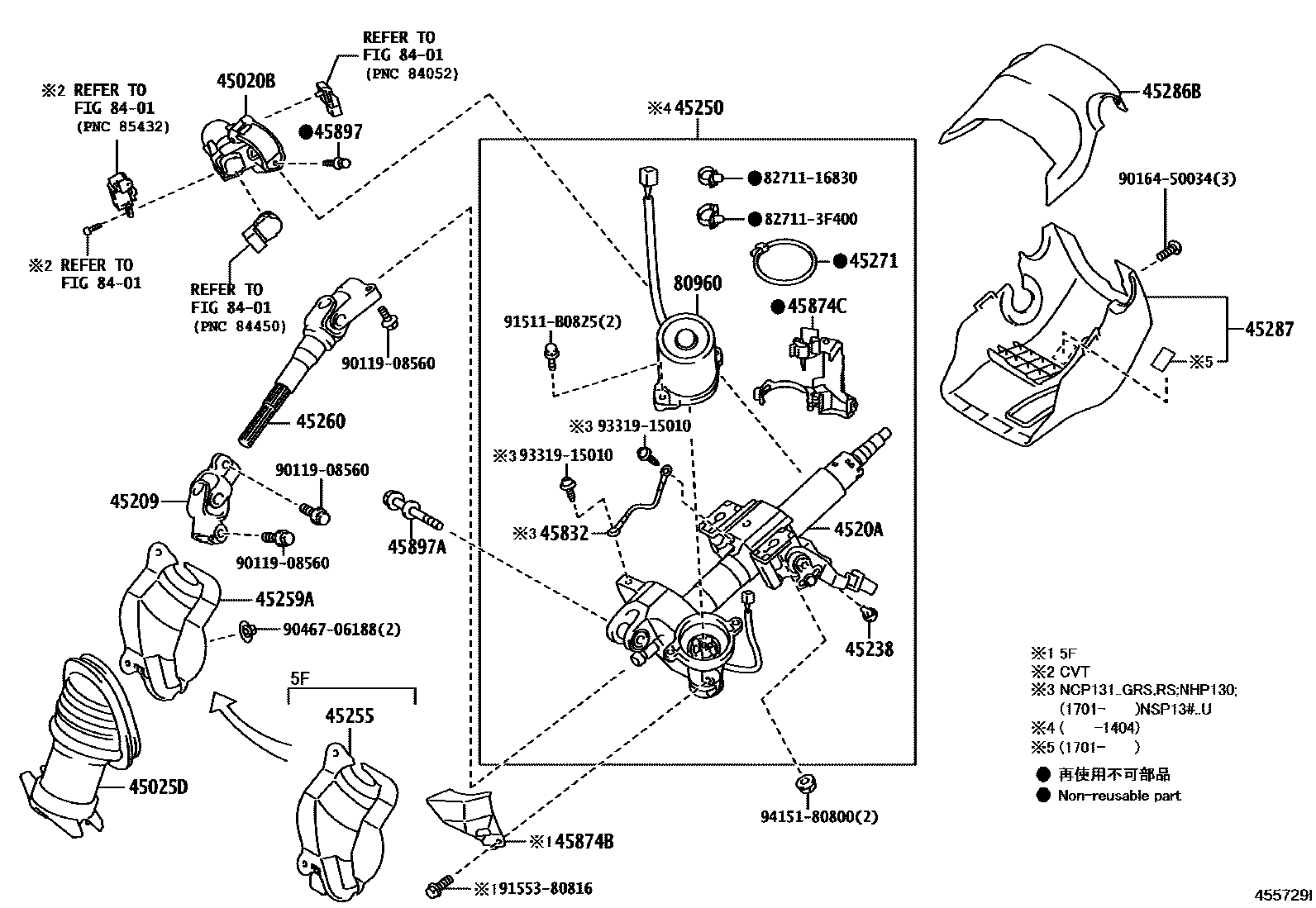

STEERING COLUMN & SHAFT

0001 1W/O(PUSH START) 0002 1W(PUSH START)

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-52100iKSP130,NHP130,NSP13#..(F,JEWL)..CBU201701-202001

main45280-52100iKSP130,NSP13#..(F,JEWL)..CBU201404-201701

main45280-52100iNCP131..CVT..RS201012-201404

main45280-52110iNCP131..5F201012-201701

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-52120iKSP130,NSP130..(F,JEWL)..CBU201012-201701

main45025-52140iNCP131,NSP130..(RS,U)..CBU201012-201401

sub45025-52170

main45025-52160iNSP135..CBU201012-201701

main45025-52170iNCP131,NSP130..(RS,U)..CBU201402-201701

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-52050iKSP130,NCP131,NSP13#..CBU201012-201701

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-52060iKSP130,NSP13#..(F,JEWL)..CBU201012-201104

sub4520A-52061

main4520A-52061iKSP130,NSP13#..(F,JEWL)..CBU201105-201206

sub4520A-52062

main4520A-52062iKSP130,NSP13#..(F,JEWL)..CBU201701-202001

main4520A-52062iKSP130,NSP13#..(F,JEWL)..CBU201207-201701

main4520A-52070iNCP131,NSP13#..U..CBU201012-201104

sub4520A-52071

main4520A-52071iNCP131,NSP13#..U..CBU201105-201206

sub4520A-52072

main4520A-52072iNCP131,NSP13#..U..CBU201404-201701

main4520A-52072iNCP131,NSP13#..U..CBU201207-201404

main4520A-52080iNCP131..5F201012-201104

sub4520A-52081

main4520A-52081iNCP131..5F201105-201206

sub4520A-52082

main4520A-52082iNCP131..CVT..RS201207-201404

main4520A-52082iNCP131..CVT..RS201207-201701

main4520A-52082iNHP130..(F,JEWL)..CBU201701-202001

main4520A-52090iNCP131..CVT..RS201012-201104

sub4520A-52091

main4520A-52091iNCP131..5F201105-201206

sub4520A-52092

main4520A-52092iNCP131..CVT..RS201404-202001

main4520A-52092iNCP131,NHP130,NSP13#..(GRS,U)..CBU201701-202001

main4520A-52092iNCP131..5F201207-201404

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iKSP130,NHP130,NSP13#..(F,JEWL)..CBU201701-202001

main45238-52010iKSP130,NCP131,NSP13#..CBU201012-201701

main45238-52010iKSP130,NCP131,NHP130,NSP13#..CBU201701-202001

45250COLUMN ASSY, STEERING

main45250-52712iKSP130,NSP13#..(F,JEWL)..CBU201012-201104

sub45250-52713

main45250-52713iKSP130,NSP13#..(F,JEWL)..CBU201105-201206

sub45250-52714

main45250-52714iKSP130,NSP13#..(F,JEWL)..CBU201207-201404

sub4520A-52062

sub45271-52040

sub45874-52040

sub80960-52110

sub82711-16830

sub82711-3F400

sub91511-B0825

main45250-52722iNCP131,NSP13#..U..CBU201012-201104

sub45250-52723

main45250-52723iNCP131,NSP13#..U..CBU201105-201206

sub45250-52724

main45250-52724iNCP131,NSP13#..U..CBU201207-201404

sub4520A-52072

sub45271-52040

sub45874-52040

sub80960-52110

sub82711-16830

sub82711-3F400

sub91511-B0825

main45250-52732iNCP131..5F201012-201104

sub45250-52733

main45250-52733iNCP131..CVT..RS201105-201206

sub45250-52734

main45250-52734iNCP131..5F201207-201404

sub4520A-52082

sub45271-52040

sub45874-52040

sub80960-52110

sub82711-16830

sub82711-3F400

sub91511-B0825

main45250-52734iNCP131..CVT..RS201207-201404

sub4520A-52082

sub45271-52040

sub45874-52040

sub80960-52110

sub82711-16830

sub82711-3F400

sub91511-B0825

main45250-52742iNCP131..5F201012-201104

sub45250-52743

main45250-52743iNCP131..5F201105-201206

sub45250-52744

main45250-52744iNCP131..CVT..RS201207-201404

sub4520A-52092

sub45271-52040

sub45874-52040

sub80960-52110

sub82711-16830

sub82711-3F400

sub91511-B0825

45255PLATE, STEERING COLUMN HOLE COVER

main45255-52130iNCP131..5F201012-201701

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-52010iKSP130,NCP131,NSP13#..CVT..CBU201012-201701

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-52201iKSP130,NCP131,NSP13#..CBU201012-201701

45271CLAMP, STEERING COLUMN, UPPER

main45271-52040iNHP130,NSP13#..(GRS,U)..CBU201701-202001

main45271-52040iKSP130,NHP130,NSP13#..(F,JEWL)..CBU201701-202001

main45271-52040iKSP130,NCP131,NSP13#..CBU201012-201701

45286BCOVER, STEERING COLUMN, UPR

main45286-12610-C0iKSP130,NHP130,NSP13#..F..CBU201810-202001

BLACK,TRIM2#

main45286-12610-C0iKSP130,NHP130,NSP13#..F..CBU201810-202001

main45286-12610-C0iKSP130,NHP130,NSP13#..F..CBU201810-202001

main45286-12610-C0iKSP130,NHP130,NSP13#..F..CBU201810-202001

main45286-12610-C0iKSP130,NHP130,NSP13#..F..CBU201810-202001

main45286-12610-C0iKSP130,NHP130,NSP13#..JEWL201810-202001

BLACK,TRIM2#,4#

main45286-12620-C0iKSP130,NHP130,NSP13#..F..CBU201810-202001

BLACK,TRIM0#,2#

main45286-12620-C0iKSP130,NHP130,NSP13#..F..CBU201810-202001

BLACK,TRIM2#,3#

main45286-12620-C0iKSP130,NHP130,NSP13#..F..CBU201810-202001

main45286-12620-C0iKSP130,NHP130,NSP13#..F..CBU201810-202001

main45286-12620-C0iKSP130,NHP130,NSP13#..F..CBU201810-202001

main45286-52160-C0iKSP130,NSP13#..F..CBU201012-201203

sub45286-52180

main45286-52160-C0iKSP130,NSP13#..F..CBU201012-201203

sub45286-52180

main45286-52160-C0iKSP130,NSP13#..F..CBU201012-201203

sub45286-52180

main45286-52160-C0iKSP130,NSP13#..JEWL201012-201203

BLACK,TRIM1#

sub45286-52180

main45286-52160-C0iKSP130,NSP13#..JEWL201012-201203

BLACK,TRIM1#,5#

sub45286-52180

main45286-52160-C0iKSP130,NSP13#..JEWL201012-201203

BLACK,TRIM1#,4#

sub45286-52180

main45286-52160-C0iKSP130,NSP13#..JEWL201012-201203

sub45286-52180

main45286-52190-C0iKSP130,NSP135..F..CBU201404-201701

sub45286-12620

main45286-52190-C0iKSP130,NSP135..F..CBU201404-201701

sub45286-12620

main45286-52190-C0iKSP130,NSP135..F..CBU201404-201701

sub45286-12620

main45286-52190-C0iKSP130,NSP135..F..CBU201404-201701

sub45286-12620

main45286-52190-C0iNSP130..F..CBU201404-201810

BLACK,TRIM2#,4#

sub45286-12620

main45286-52190-C0iNSP130..F..CBU201404-201701

BLACK,TRIM0#,2#,4#

sub45286-12620

main45286-52190-C0iNSP130..F..CBU201404-201809

BLACK,TRIM0#,2#

sub45286-12620

main45286-52190-C0iNSP130..F..CBU201404-201701

BLACK,TRIM2#,3#,4#

sub45286-12620

main45286-52190-C0iNSP130..F..CBU201404-201810

BLACK,TRIM2#

sub45286-12620

main45286-52190-C0iNSP130..F..CBU201404-201701

sub45286-12620

main45286-52190-C0iKSP130,NHP130,NSP13#..F..CBU201701-201809

BLACK,TRIM2#,3#

sub45286-12620

main45286-52190-C0iKSP130,NHP130,NSP13#..F..CBU201701-201809

sub45286-12620

main45286-52190-C0iKSP130,NHP130,NSP13#..F..CBU201701-201809

sub45286-12620

main45286-52190-C0iNHP130,NSP13#..U..CBU201701-201810

sub45286-12620

main45286-52190-C0iNCP131,NHP130..GRS201709-201810

sub45286-12620

main45286-52190-C0iNCP131..5F201203-201404

BLACK,TRIM1#

sub45286-12620

main45286-52190-C0iNCP131..5F201203-201404

BLACK,TRIM1#,5#

sub45286-12620

main45286-52190-C0iNCP131..5F201203-201404

BLACK,TRIM1#,4#

sub45286-12620

main45286-52190-C0iNCP131..5F201203-201404

sub45286-12620

main45286-52190-C0iNCP131..5F201203-201404

sub45286-12620

main45286-52190-C0iNCP131..5F201203-201404

sub45286-12620

main45286-52190-C0iNCP131..5F201203-201404

sub45286-12620

main45286-52190-C0iNCP131..5F201203-201404

sub45286-12620

45287COVER, STEERING COLUMN, LWR

main45024-52090-C0iNCP131,NHP130..GRS201810-202001

BLACK,TRIM0#,2#

main45024-52090-C0iKSP130,NHP130,NSP13#..JEWL201810-202001

main45024-52090-C0iKSP130,NHP130,NSP13#..JEWL201810-202001

main45024-52090-C0iKSP130,NHP130,NSP13#..JEWL201810-202001

main45024-52090-C0iKSP130,NHP130,NSP13#..JEWL201810-202001

BLACK,TRIM2#,3#

main45024-52100-C0iNHP130..GRS201810-202001

main45024-52100-C0iNHP130..GRS201810-202001

BLACK,TRIM2#

main45024-52100-C0iNHP130..GRS201810-202001

main45024-52100-C0iNHP130..GRS201810-202001

main45024-52100-C0iNHP130..GRS201810-202001

main45024-52100-C0iNHP130,NSP13#..U..CBU201810-202001

BLACK,TRIM2#,4#

main45024-52110-C0iNHP130..GRS201709-201810

sub45024-52090

main45024-52110-C0iNHP130..GRS201709-201810

BLACK,TRIM2#

sub45024-52090

main45024-52110-C0iNHP130,NSP13#..U..CBU201701-201810

sub45024-52090

main45024-52110-C0iNHP130,NSP13#..U..CBU201701-201810

BLACK,TRIM2#,4#

sub45024-52090

main45024-52110-C0iKSP130,NHP130,NSP13#..JEWL201701-201809

sub45024-52090

main45024-52110-C0iKSP130,NHP130,NSP13#..JEWL201701-201809

sub45024-52090

main45024-52110-C0iKSP130,NHP130,NSP13#..JEWL201701-201809

BLACK,TRIM2#,3#

sub45024-52090

main45024-52110-C0iKSP130,NHP130,NSP13#..JEWL201701-201809

BLACK,TRIM0#,2#

sub45024-52090

main45287-52190-C0iNCP131,NSP13#..CVT..(RS,U)..CBU201012-201203

sub45287-52260

main45287-52190-C0iNCP131,NSP13#..CVT..(RS,U)..CBU201012-201203

sub45287-52260

main45287-52190-C0iNCP131,NSP13#..CVT..(RS,U)..CBU201012-201203

sub45287-52260

main45287-52190-C0iNCP131..CVT..RS201012-201203

BLACK,TRIM1#

sub45287-52260

main45287-52190-C0iNCP131..CVT..RS201012-201203

BLACK,TRIM1#,5#

sub45287-52260

main45287-52190-C0iNCP131..CVT..RS201012-201203

BLACK,TRIM1#,4#

sub45287-52260

main45287-52190-C0iNCP131..CVT..RS201012-201203

sub45287-52260

main45287-52230-C0iKSP130,NSP13#..JEWL201404-201701

BLACK,TRIM2#,3#,4#

sub45287-52190

main45287-52230-C0iKSP130,NSP13#..JEWL201404-201701

BLACK,TRIM2#

sub45287-52190

main45287-52230-C0iKSP130,NSP13#..JEWL201404-201701

sub45287-52190

main45287-52230-C0iKSP130,NSP13#..JEWL201404-201701

sub45287-52190

main45287-52230-C0iKSP130,NSP13#..JEWL201404-201701

sub45287-52190

main45287-52230-C0iKSP130,NSP13#..JEWL201404-201701

sub45287-52190

main45287-52230-C0iKSP130,NSP13#..JEWL201404-201701

sub45287-52190

main45287-52230-C0iNCP131..5F201404-201701

BLACK,TRIM2#,4#

sub45287-52190

main45287-52230-C0iNCP131..5F201404-201701

BLACK,TRIM0#,2#,4#

sub45287-52190

main45287-52230-C0iNCP131..5F201404-201701

BLACK,TRIM0#,2#

sub45287-52190

main45287-52230-C0iNCP131..5F201203-201404

BLACK,TRIM1#

sub45287-52190

main45287-52230-C0iNCP131..5F201203-201404

BLACK,TRIM1#,5#

sub45287-52190

main45287-52230-C0iNCP131..5F201203-201404

BLACK,TRIM1#,4#

sub45287-52190

main45287-52230-C0iNCP131..5F201203-201404

sub45287-52190

main45287-52230-C0iNCP131..5F201203-201404

sub45287-52190

main45287-52230-C0iNCP131..5F201203-201404

sub45287-52190

main45287-52230-C0iNCP131..5F201203-201404

sub45287-52190

main45287-52230-C0iNCP131..5F201203-201404

sub45287-52190

45832CABLE, TILT STEERING SUPPORT BOND

main45832-52020iNCP131..RS201012-201701

main45832-52020iNSP13#..U..CBU;NCP131,NHP130..CBU201701-202001

main45832-52020iNSP13#..U..CBU;NCP131,NHP130..CBU201701-202001

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-52030iNCP131..5F201012-201701

45874CPROTECTOR, STEERING COLUMN, NO.1

main45874-52040iKSP130,NCP131,NSP13#..CBU201012-201701

main45874-52040iKSP130,NCP131,NHP130,NSP13#..CBU201701-202001

main45874-52040iKSP130,NCP131,NHP130,NSP13#..CBU201701-202001

45897BOLT, STEERING LOCK SET

main45897-12020iNHP130,NSP13#..(GRS,U)..CBU201701-202001

main45897-12020iKSP130,NCP131,NSP13#..CBU201012-201701

main45897-12020iKSP130,NCP131,NHP130,NSP13#..CBU201701-202001

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iKSP130,NCP131,NSP13#..CBU201012-201210

main90119-10980iKSP130,NCP131,NHP130,NSP13#..CBU201211-201701

80960MOTOR ASSY, POWER STEERING

main80960-52070iKSP130,NCP131,NSP13#..CBU201308-201311

sub80960-52110

main80960-52080iKSP130,NCP131,NSP13#..CBU201012-201112

sub80960-52070

main80960-52100iKSP130,NCP131,NSP13#..CBU201112-201307

sub80960-52070

main80960-52110iNHP130,NSP13#..(GRS,U)..CBU201701-202001

main80960-52110iNHP130,NSP13#..(GRS,U)..CBU201701-202001

main80960-52110iKSP130,NCP131,NSP13#..CBU201312-201701

8401

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

827113F400WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F400

9011908560

main90119-08560

9016450034

main90164-50034

9046706188

main90467-06188

91511B0825

main91511-B0825

9155380816

main91553-80816

9331915010

main93319-15010

9415180800

main94151-80800

28 parts on this diagram · 2 diagrams in section
