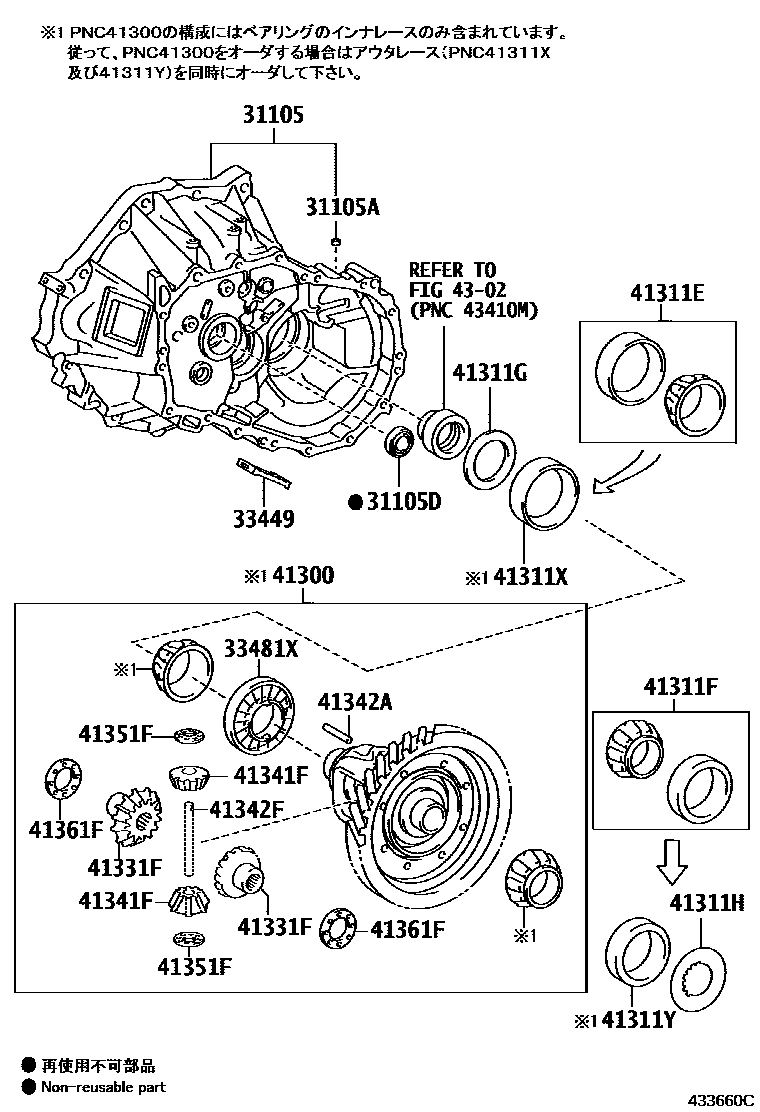

FRONT AXLE HOUSING & DIFFERENTIAL
31105CASE SUB-ASSY, TRANSAXLE(MTM)
31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
33449MAGNET, TRANSMISSION
33481XGEAR, SPEEDOMETER DRIVE
41300CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR
41311CASE, FRONT DIFFERENTIAL
main90560-41003
main90366-38004
main90366-38005
main90368-38010
main90368-38011
main90564-41014
main90564-41015
main90564-41016
main90564-41017
main90564-41018
main90564-41019
main90564-41020
main90564-41021
main90564-41022
main90564-41023
main90564-41024
main90564-41025
main90564-41026
main90564-41027
main90564-41028
main90564-41029
main90564-41030
main90564-41031
main90564-41032
main90366-40094
main90366-40129
main41301-20230
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
41311XOUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRONT)
41311YOUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR)
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
sub41342-20060
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
4302
20 parts on this diagram · 3 diagrams in section
