TRANSFER GEAR
33325ADEFLECTOR, DUST (FOR TRANSFER OUTPUT REAR SHAFT)
3609
36212LRING, SHAFT SNAP
36275EWASHER, TRANSFER OUTPUT SHAFT
41201PGEAR KIT, TRANSFER
41301HBEARING(FOR RING GEAR MOUNTING CASE)
41301JWASHER, PLATE(FOR RING GEAR MOUNTING CASE)
41301XWASHER, TRANSFER RING GEAR MOUNTING CASE, NO.2
41319CASE, TRANSFER RING GEAR MOUNTING
41453ERING, O
9011408081
main90114-08081
9017924013
main90179-24013
9155281030
main91552-81030

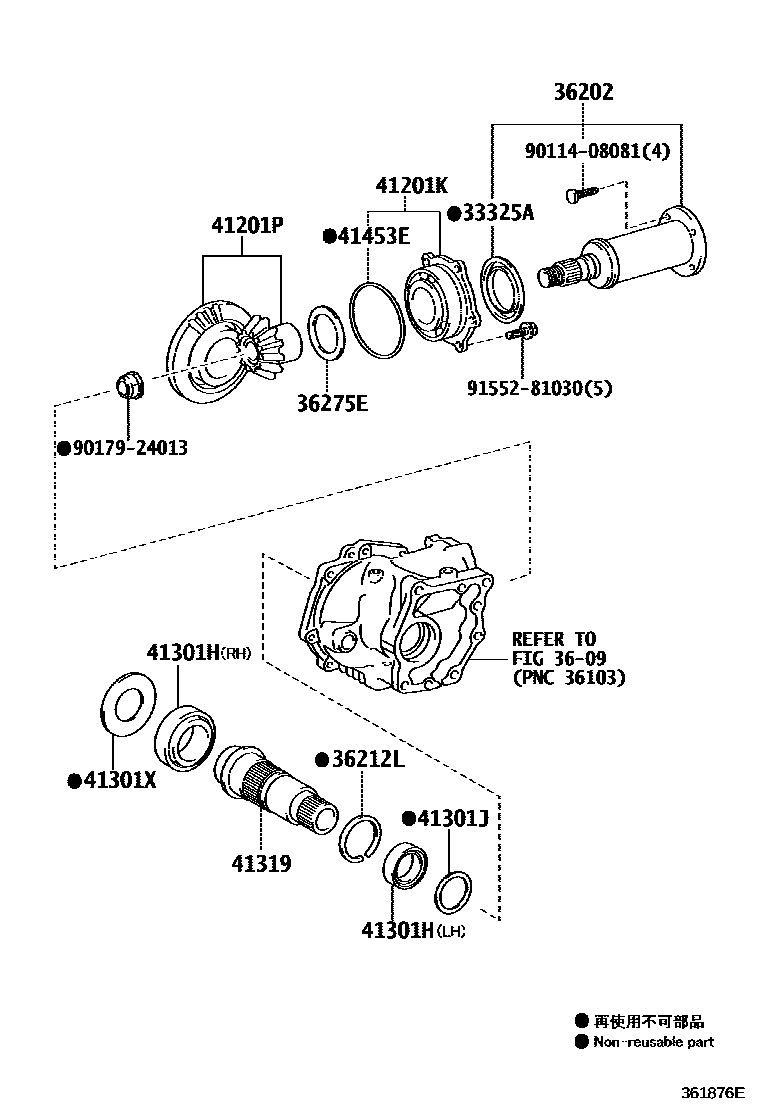

15 parts on this diagram · 1 diagram in section
