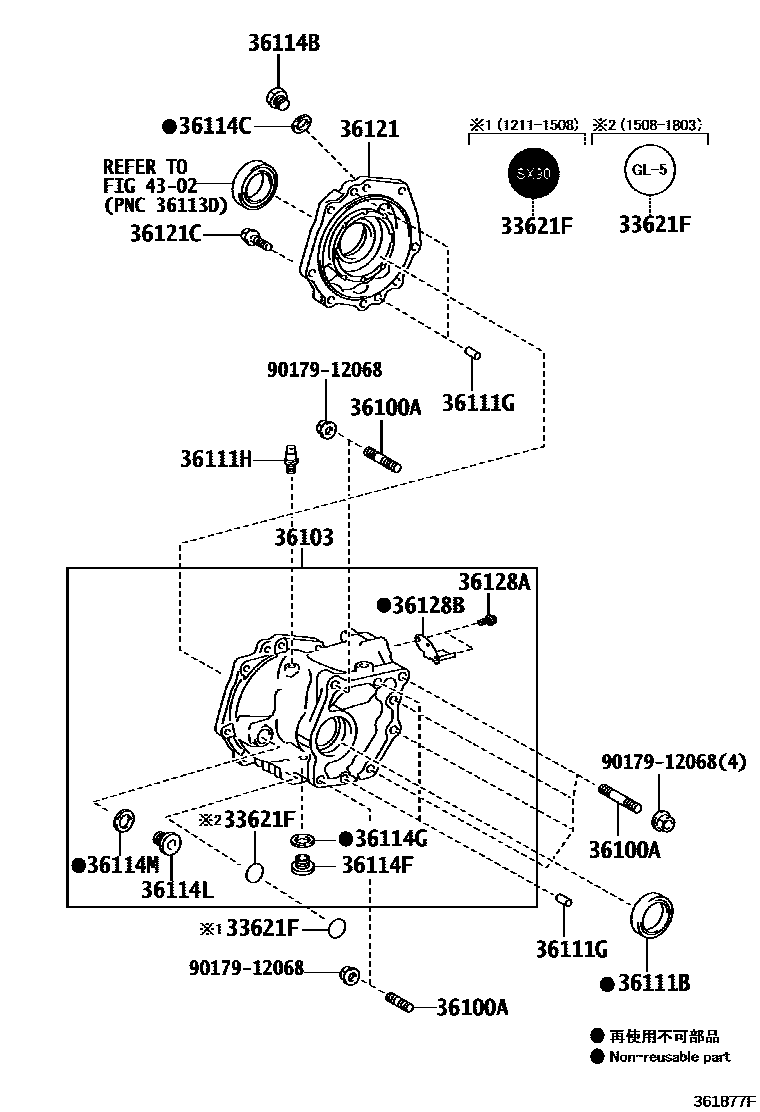

TRANSFER CASE & EXTENSION HOUSING
36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
36111BSEAL, OIL (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36114LPLUG, FILLER(FOR TRANSFER)
36114MGASKET (FOR TRANSFER FILLER PLUG)
36121COVER, TRANSFER CASE, NO.1
36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)
36128ABOLT (FOR BREATHER OIL DEFLECTOR)
36128BDEFLECTOR, BREATHER OIL
4302
9017912068
main90179-12068
18 parts on this diagram · 1 diagram in section
