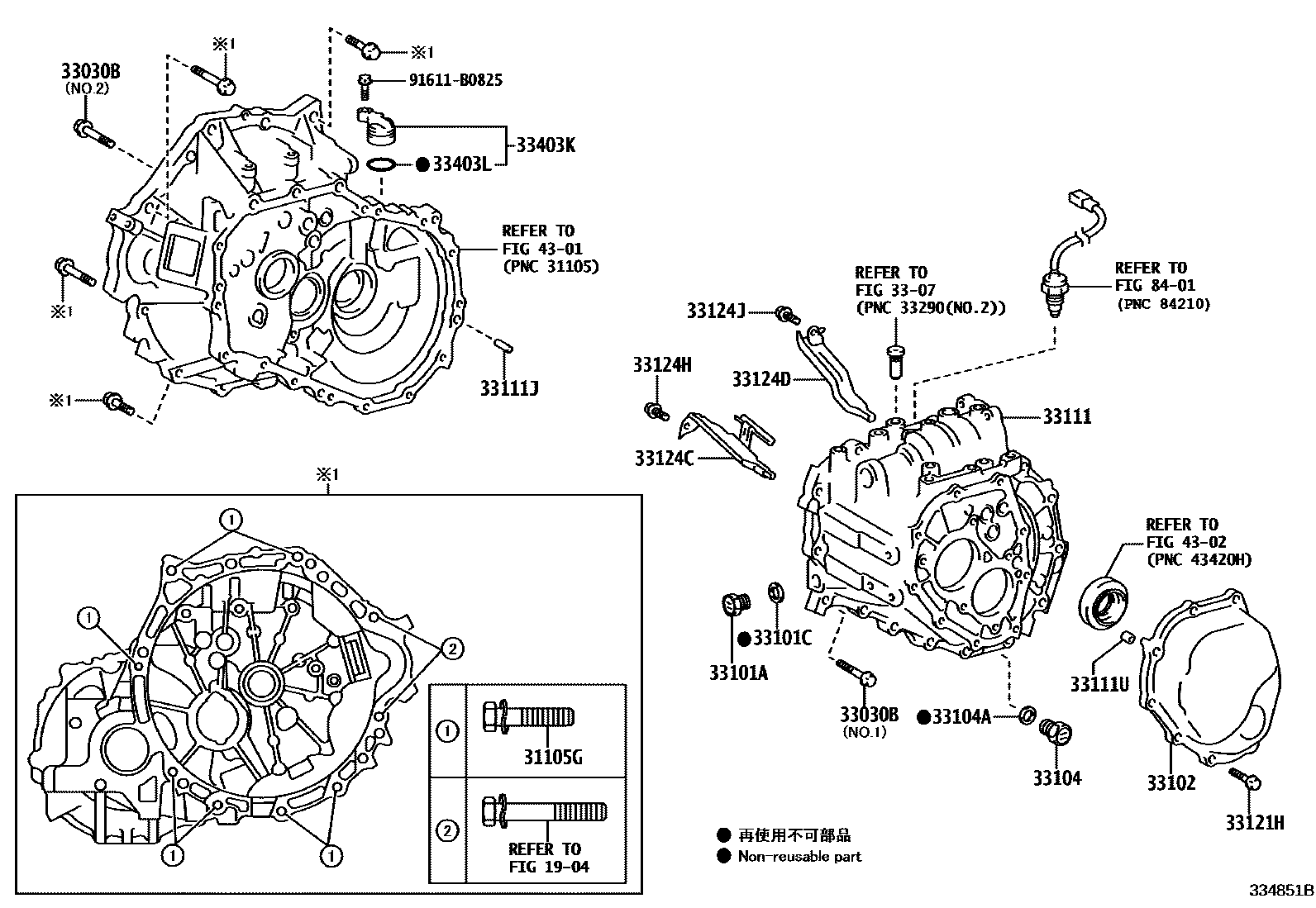

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

1904

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main91612-61045iNCP131..5F201012-201701

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08353iNCP131..5F201012-201701

main90105-08430iNCP131..5F201012-201701

3307

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18033iNCP131..5F201012-201701

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iNCP131..5F201012-201701

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12021iNCP131..5F201012-201701

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18033iNCP131..5F201012-201701

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iNCP131..5F201012-201701

33111CASE, MANUAL TRANSMISSION

main33111-12260iNCP131..5F201012-201701

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iNCP131..5F201012-201701

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iNCP131..5F201012-201701

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08429iNCP131..5F201012-201701

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-20050iNCP131..5F201012-201701

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12021iNCP131..5F201012-201701

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-G0820iNCP131..5F201012-201701

33124JBOLT, W/WASHER

main91611-G0820iNCP131..5F201012-201701

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-35230iNCP131..5F201012-201701

33403LRING, O

main96711-24030iNCP131..5F201012-201701

4301

4302

8401

91611B0825

main91611-B0825

23 parts on this diagram · 1 diagram in section
