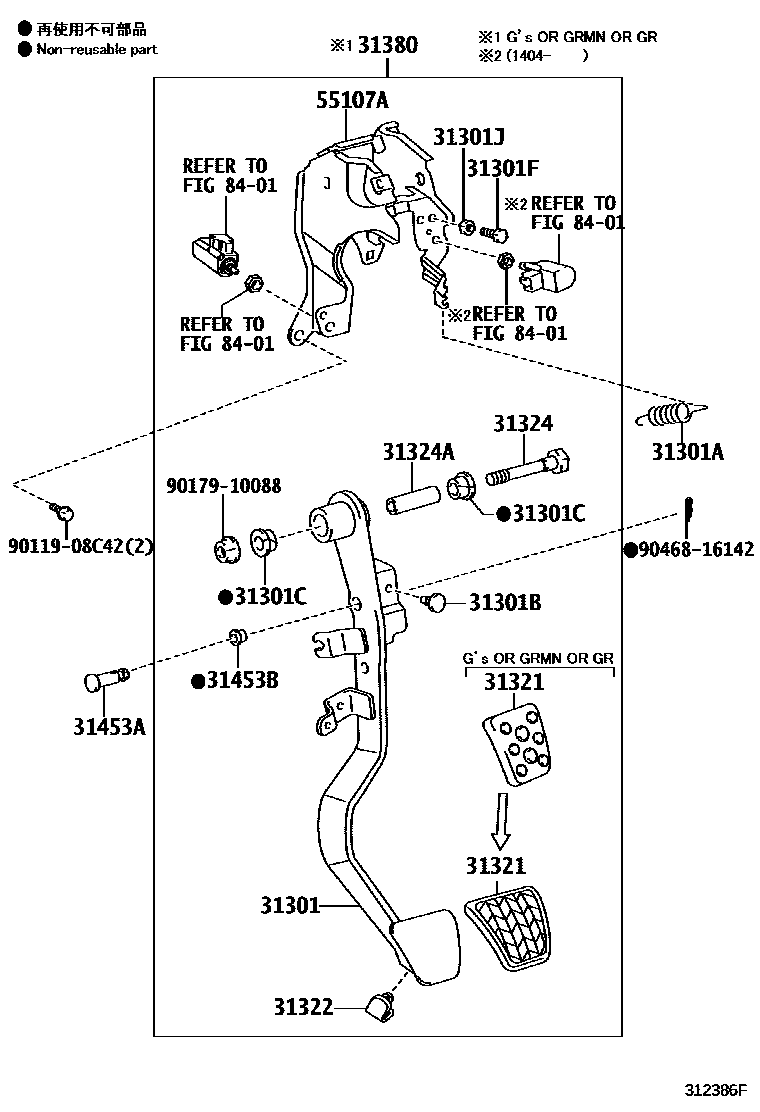

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-52160iNCP131..5F201012-202001

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14055iNCP131..5F201012-201701

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iNCP131..5F201012-202001

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iNCP131..5F201012-202001

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main91112-61025iNCP131..5F201012-202001

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main90170-10017iNCP131..5F201012-202001

31321PAD, CLUTCH PEDAL

main31321-52010iNCP131..5F201012-201501

main31321-52020iNCP131..5F201709-202001

main31321-52020iNCP131..5F201502-201701

main31321-WY010iNCP131..5F201404-201701

main31321-WY010iNCP131..5F201110-201701

main31321-WY010iNCP131..5F201709-202001

main31321-WY010iNCP131..5F201309-201402

31322STOPPER, CLUTCH PEDAL

main31322-52010iNCP131..5F201012-202001

31324SHAFT, CLUTCH PEDAL

main90105-10444iNCP131..5F201012-202001

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iNCP131..5F201012-202001

31380SUPPORT ASSY, PEDAL

main31380-WY010iNCP131..5F201309-201402

main31380-WY010iNCP131..5F201110-201404

main31380-WY020iNCP131..5F201404-201701

main31380-WY020iNCP131..5F201404-201701

main31380-WY020iNCP131..5F201709

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08051iNCP131..5F201012-201701

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iNCP131..5F201012-202001

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-52240iNCP131..5F201012-202001

8401

9011908C42

main90119-08C42

9017910088

main90179-10088

9046816142

main90468-16142

18 parts on this diagram · 2 diagrams in section
