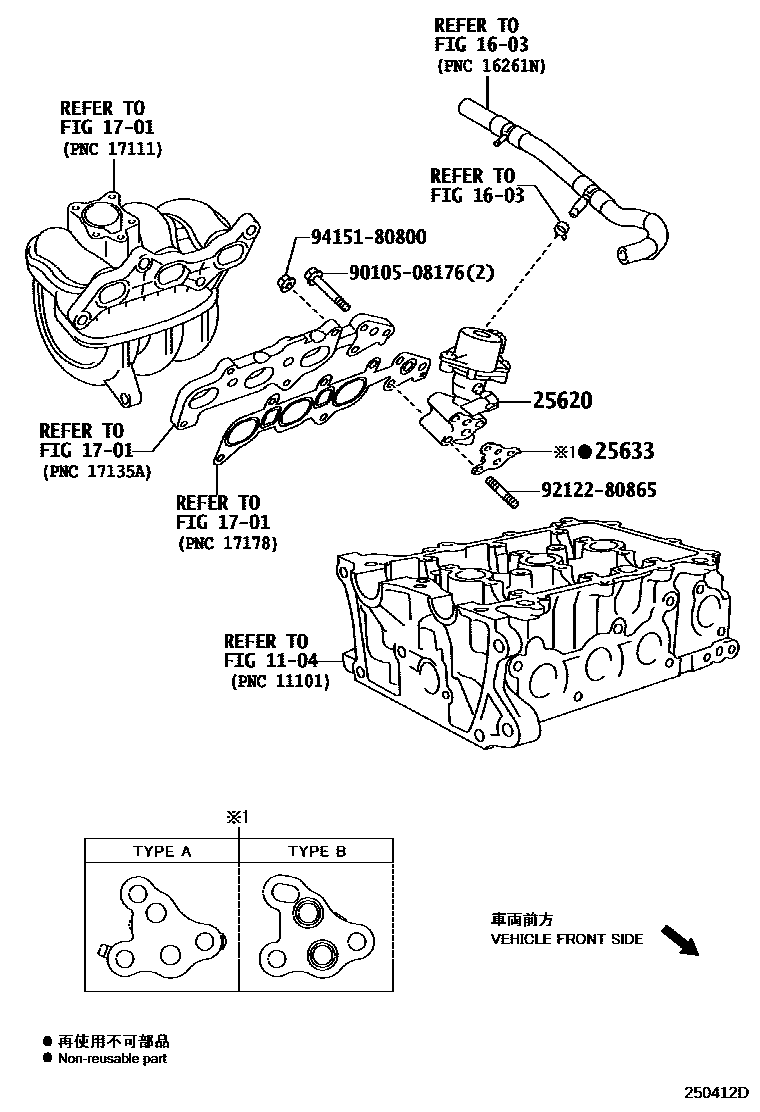

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1104

1603

1701

25620VALVE ASSY, EGR

main25620-21010i1NZFE..NCP131201012-201701

main25620-21021i1NZFXE..NHP130..CBU201701

main25620-21030i1NZFE..NCP131..CVT201404-201701

main25620-40020i1KRFE..KSP130..CBU201012-201404

main25620-40030i1KRFE..KSP130..CBU201404-201701

main25620-47020i1NRFE..NSP135..CBU201012-201701

main25620-47030i1NRFKE..NSP130201404-201906

sub25620-47060

main25620-47060i1NRFKE..NSP130201907

25633GASKET, EGR VALVE

main25633-21010i1NZFXE..NHP130..CBU201701

main25633-21020i1NZFE..NCP131201012-201701

main25633-40020i1KRFE..KSP130..CBU201012-201403

main25633-40030i1KRFE..KSP130..CBU201404-201701

main25633-40030i1KRFE..KSP130..CBU201403-201404

main25633-47010i1NRFE..NSP13#..CBU201012-201701

main25633-47020i1NRFKE..NSP130201404-201701

9010508176

main90105-08176

9212280865

main92122-80865

9415180800

main94151-80800

8 parts on this diagram · 6 diagrams in section
