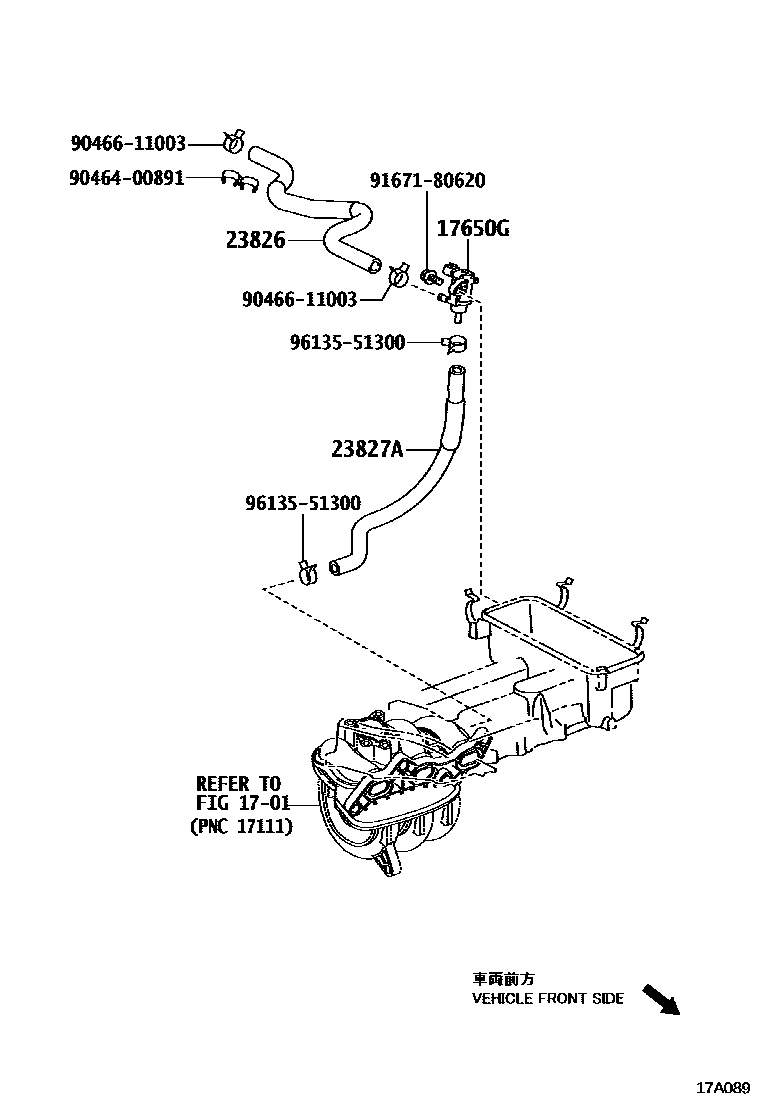

VACUUM PIPING

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1GRMN 0009 1

1701

17650VALVE ASSY, VACUUM SWITCHING

main25860-47030i1NRFKE..NSP130201404-201701

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12280i1KRFE..KSP130..CBU201012-201701

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-21200i1NZFXE..NHP130..CBU201701

main23826-40010i1KRFE..KSP130..CBU201012-201404

main23826-40030i1KRFE..KSP130..CBU201404-201701

main23826-47030i1NRFE..NSP135..CBU201012-201701

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-21150i1NZFE..NCP131201012-201701

main23827-21170i1NZFXE..NHP130..CBU201701

main23827-40011i1KRFE..KSP130..CBU201012-201404

main23827-40050i1KRFE..KSP130..CBU201404-201701

main23827-47030i1NRFE..NSP13#..CBU201012-201701

main23827-47090i1NRFKE..NSP130201404-201701

9046400891

main90464-00891

9046611003

main90466-11003

9167180620

main91671-80620

9613551300

main96135-51300

9 parts on this diagram · 8 diagrams in section
