EPC Data

CAMSHAFT & VALVE

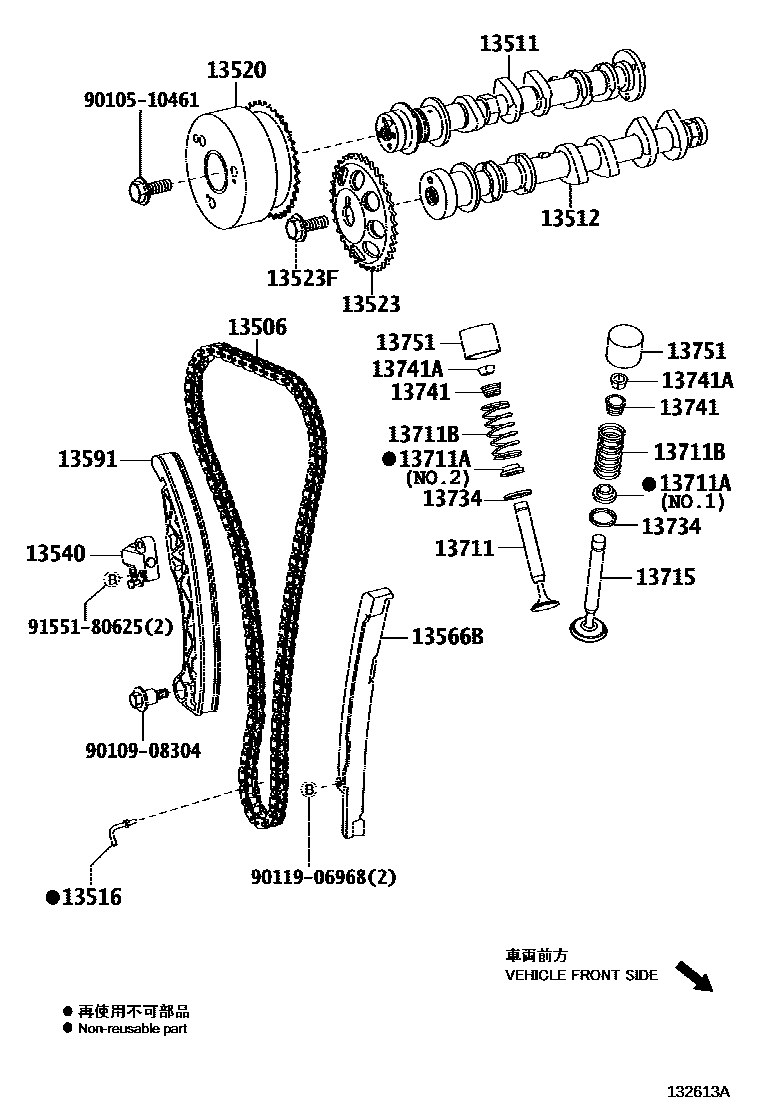

Parts diagram
13506CHAIN SUB-ASSY
main13506-21050i201701
main13506-21060i201012-201202
sub13506-21061
main13506-21061i201202-201701
main13506-40010i201012-201404
sub13506-40020
main13506-40020i201404-201701
main13506-47010i201012-201210
sub13506-47030
main13506-47030i201210-201701
13511CAMSHAFT
main13501-21051i201012-201111
sub13501-21052
main13501-21052i201111-202001
main13501-21080i201404-202001
main13501-21100i201701-202001
main13501-40040i201012-201403
sub13501-40041
main13501-40041i201403-201404
main13501-40070i201404-201701
main13501-47020i201012-202001
main13501-47041i201404-202001
13512CAMSHAFT, NO.2
main13502-21041i201012-201111
sub13502-21042
main13502-21042i201111-202001
main13502-21050i201404-202001
main13502-21070i201701-202001
main13502-40010i201012-201403
sub13502-40011
main13502-40011i201403-201404
main13502-40040i201404-201701
main13502-47010i201012-202001
main13502-47030i201404-202001
13516JET, OIL
main13516-40010i201012-201701
13520SPROCKET ASSY, CAMSHAFT TIMING
main13520-40020i201012-201705
sub13520-40021
main13520-40021i201706
13523GEAR OR SPROCKET, CAMSHAFT TIMING
main13523-22020i201012-201701
13523FBOLT(FOR CAMSHAFT TIMING GEAR)
main90119-10889i201012-201701
13540TENSIONER ASSY, CHAIN, NO.1
main13540-21020i201012-201701
main13540-47010i201012-201312
sub13540-47011
main13540-47011i201312-201701
13566BGUIDE, TIMING CHAIN
main13566-40020i201012-201404
sub13566-40030
main13566-40030i201404-201903
sub13566-40031
main13566-40031i201904
main13566-47010i201012-201210
sub13566-47030
main13566-47030i201210-201701
13591ARM, TIMING CHAIN TENSION
main13591-40020i201012-201404
main13591-40040i201404-201903
sub13591-40041
main13591-40041i201904
main13591-47010i201012-201210
sub13591-47030
main13591-47030i201210-201803
sub13591-47050
main13591-47040i201404-201803
sub13591-47060
main13591-47050i201804
main13591-47060i201804
13711VALVE, INTAKE
main13711-21010i201701
main13711-21040i201012-201701
main13711-40040i201012-201402
sub13711-40050
main13711-40050i201403-201701
main13711-47010i201012-201701
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
main90913-02092i201012-201808
sub90913-02128
main90913-02093i201012-201701
main90913-02128i201809
13711BSPRING, COMPRESSION(FOR INNER)
main90501-25063i201012-201404
main90501-25069i201404-201701
13715VALVE, EXHAUST
main13715-21010i201701
main13715-21040i201012-201701
main13715-40040i201012-201402
sub13715-40050
main13715-40050i201403-201701
main13715-47010i201012-201701
13734SEAT, VALVE SPRING
main13734-40010i201012-201701
main13734-62020i201012-201701
main13734-74010i201701
13741RETAINER, VALVE SPRING
main13741-20021i201012-201701
main13741-20021i201012-201401
main13741-22021i201012-201701
main13741-36010i201404-201701
main13741-36010i201401-201404
13741ALOCK, VALVE SPRING RETAINER
main90913-03028i201012-201701
main90913-03031i201012-201701
13751LIFTER, VALVE
main13751-21380i201701-202001
sub13751-21020
main13751-21390i201701-202001
sub13751-21030
main13751-21400i201701-202001
sub13751-21040
main13751-21410i201701-202001
sub13751-21050
main13751-21420i201701-202001
sub13751-21060
main13751-21430i201701-202001
sub13751-21070
main13751-21440i201701-202001
sub13751-21080
main13751-21450i201701-202001
sub13751-21090
main13751-21460i201701-202001
sub13751-21100
main13751-21470i201701-202001
sub13751-21110
main13751-21480i201701-202001
sub13751-21120
main13751-21490i201701-202001
sub13751-21130
main13751-21500i201701-202001
sub13751-21140
main13751-21510i201701-202001
sub13751-21150
main13751-21520i201701-202001
sub13751-21160
main13751-21530i201701-202001
sub13751-21170
main13751-21540i201701-202001
sub13751-21180
main13751-21550i201701-202001
sub13751-21190
main13751-21560i201701-202001
sub13751-21200
main13751-21570i201701-202001
sub13751-21210
main13751-21580i201701-202001
sub13751-21220
main13751-21590i201701-202001
sub13751-21230
main13751-21600i201701-202001
sub13751-21240
main13751-21610i201701-202001
sub13751-21250
main13751-21620i201701-202001
sub13751-21260
main13751-21630i201701-202001
sub13751-21270
main13751-21640i201701-202001
sub13751-21280
main13751-21650i201701-202001
sub13751-21290
main13751-21660i201701-202001
sub13751-21300
main13751-21670i201701-202001
sub13751-21310
main13751-21680i201701-202001
sub13751-21320
main13751-21690i201701-202001
sub13751-21330
main13751-21700i201701-202001
sub13751-21340
main13751-21710i201701-202001
sub13751-21350
main13751-21720i201701-202001
sub13751-21360
main13751-23030i201012-201404
main13751-23040i201012-201404
main13751-23050i201012-201404
main13751-23060i201012-201404
main13751-23070i201012-201404
main13751-23080i201012-201404
main13751-23090i201012-201404
main13751-23100i201012-201404
main13751-23110i201012-201404
main13751-23120i201012-201404
main13751-23130i201012-201404
main13751-23140i201012-201404
main13751-23150i201012-201404
main13751-23160i201012-201404
main13751-23170i201012-201404
main13751-23180i201012-201404
main13751-23190i201012-201404
main13751-23200i201012-201404
main13751-23210i201012-201404
main13751-23220i201012-201404
main13751-23230i201012-201404
main13751-23240i201012-201404
main13751-23250i201012-201404
main13751-23260i201012-201404
main13751-23270i201012-201404
main13751-23280i201012-201404
main13751-23290i201012-201404
main13751-23300i201012-201404
main13751-23310i201012-201404
main13751-40030i201404-201809
sub13751-40630
main13751-40040i201404-201809
sub13751-40640
main13751-40050i201404-201809
sub13751-40650
main13751-40060i201404-201809
sub13751-40660
main13751-40070i201404-201809
sub13751-40670
main13751-40080i201404-201809
sub13751-40680
main13751-40090i201404-201809
sub13751-40690
main13751-40100i201404-201809
sub13751-40700
main13751-40110i201404-201809
sub13751-40710
main13751-40120i201404-201809
sub13751-40720
main13751-40130i201404-201809
sub13751-40730
main13751-40140i201404-201809
sub13751-40740
main13751-40150i201404-201809
sub13751-40750
main13751-40160i201404-201809
sub13751-40760
main13751-40170i201404-201809
sub13751-40770
main13751-40180i201404-201809
sub13751-40780
main13751-40190i201404-201809
sub13751-40790
main13751-40200i201404-201809
sub13751-40800
main13751-40210i201404-201809
sub13751-40810
main13751-40220i201404-201809
sub13751-40820
main13751-40230i201404-201809
sub13751-40830
main13751-40240i201404-201809
sub13751-40840
main13751-40250i201404-201809
sub13751-40850
main13751-40260i201404-201809
sub13751-40860
main13751-40270i201404-201809
sub13751-40870
main13751-40280i201404-201809
sub13751-40880
main13751-40290i201404-201809
sub13751-40890
main13751-40300i201404-201809
sub13751-40A10
main13751-40310i201404-201809
sub13751-40A20
main13751-40630i201810
main13751-40640i201810
main13751-40650i201810
main13751-40660i201810
main13751-40670i201810
main13751-40680i201810
main13751-40690i201810
main13751-40700i201810
main13751-40710i201810
main13751-40720i201810
main13751-40730i201810
main13751-40740i201810
main13751-40750i201810
main13751-40760i201810
main13751-40770i201810
main13751-40780i201810
main13751-40790i201810
main13751-40800i201810
main13751-40810i201810
main13751-40820i201810
main13751-40830i201810
main13751-40840i201810
main13751-40850i201810
main13751-40860i201810
main13751-40870i201810
main13751-40880i201810
main13751-40890i201810
main13751-40A10i201810
main13751-40A20i201810
9010510461
main90105-10461
9010908304
main90109-08304
9011906968
main90119-06968
9155180625
main91551-80625

22 parts on this diagram · 6 diagrams in section
