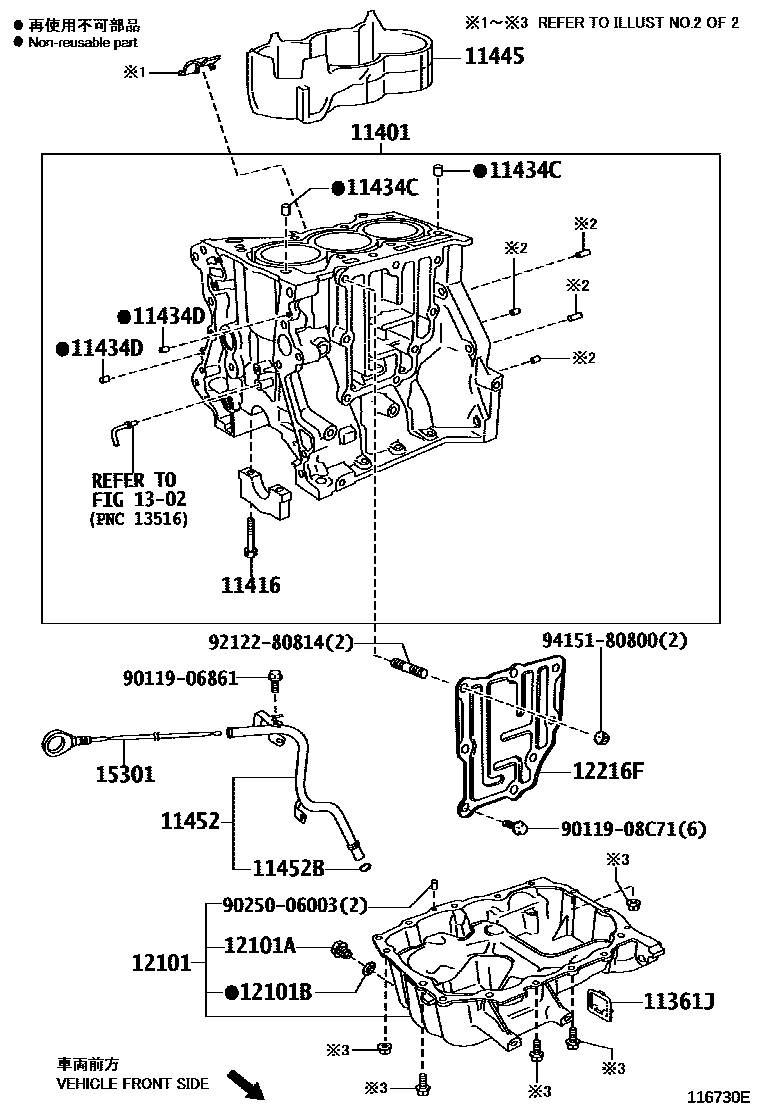

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1GRMN 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-21011i1NZFE..NCP131201012-201701

main11361-23020i1KRFE..KSP130..CBU201012-201701

11401BLOCK SUB-ASSY, CYLINDER

main11401-29866i1NZFE..NCP131201012-201111

sub11401-29867

main11401-29867i1NZFE..NCP131201111-201204

sub11401-29868

sub12315-21044

sub15100-21062

sub91551-80635

sub91551-C0830

main11401-29868i1NZFE..NCP131201204-201512

sub11401-80882

main11401-40041i1KRFE..KSP130..CBU201012-201311

sub11401-40060

main11401-40060i1KRFE..KSP130..CBU201311-201404

main11401-40080i1KRFE..KSP130..CBU201404-201701

main11401-80882i1NZFE..NCP131201512-201701

main11401-80883i1NZFXE..NHP130..CBU201701

main11410-49025i1NRFE..NSP13#..CBU201012-201307

sub11410-49026

main11410-49026i1NRFE..NSP13#..CBU201307-201309

sub11410-49028

sub13011-47033

sub13101-47022

main11410-49028i1NRFE..NSP13#..CBU201309-201404

sub11410-49045

main11410-49045i1NRFE..NSP135..CBU201404-201701

main11410-49055i1NRFKE..NSP130201404-201609

sub11410-49056

main11410-49056i1NRFKE..NSP130201610-201903

sub11410-49057

main11410-49057i1NRFKE..NSP130201903

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10531i1KRFE..KSP130..CBU201012-201701

main90910-02125i1NZFE..NCP131201012-201903

sub90910-02207

main90910-02175i1NRFE..NSP13#..CBU201012-201701

main90910-02207i1NZ#..NCP131,NHP130..CBU201904

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i1NZFE..NCP131201012-201701

main90253-12002i1KRFE..KSP130..CBU201012-201701

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i1KRFE..KSP130..CBU201012-201701

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-21010i1NZFXE..NHP130..CBU201701

main11445-40010i1KRFE..KSP130..CBU201012-201404

main11445-40020i1KRFE..KSP130..CBU201404-201603

main11445-40021i1KRFE..KSP130..CBU201604-201701

main11445-47010i1NRFE..NSP135..CBU201012-201701

main11445-47020i1NRFKE..NSP130201404-201701

main11445-47030i1NRFKE..NSP130201404-201701

11452GUIDE, OIL LEVEL GAGE

main11409-40050i1KRFE..KSP130..CBU201012-201404

main11409-40080i1KRFE..KSP130..CBU201404-201701

main11409-47011i1NRFE..NSP13#..CBU201012-201207

sub11409-47012

main11409-47012i1NR#..NSP13#..CBU201207-201701

main11452-21030i1NZFE..NCP131201012-201701

main11452-21041i1NZFXE..NHP130..CBU201701

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1KRFE..KSP130..CBU201012-201701

main96741-19010i1NRFE..NSP13#..CBU201012-201701

12101PAN SUB-ASSY, OIL

main12101-40120i1KRFE..KSP130..CBU201012-201404

main12101-40130i1KRFE..KSP130..CBU201404-201701

main12101-47070i1NRFKE..NSP130201404-201701

main12101-47100i1NRFE..NSP130..CBU201012-201207

sub12101-47101

sub91551-F0855

main12101-47101i1NRFE..NSP130..CBU201207-201404

main12101-47130i1NRFE..NSP135..CBU201107-201112

sub12101-47131

sub91551-F0855

main12101-47131i1NRFE..NSP135..CBU201112-201701

main12101-47150i1NRFE..NSP135..CBU201012-201107

sub12101-47130

main12111-21033i1NZFE..NCP131..5F201012-201701

main12111-21070i1NZFXE..NHP130..CBU201701

sub12111-21090

main12111-21080i1NZFE..NCP131..CVT201404-201701

sub12111-21100

main12111-21100i1NZFE..NCP131..CVT201709

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1NZ#..NCP131,NHP130..CBU201012-201701

main90341-12032i1NRFE..NSP13#..CBU201012-201701

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1NZ#,1NR#..NCP131,NHP130,NSP13#..CBU201012-201701

12216FPLATE, VENTILATION BAFFLE

main12216-40020i1KRFE..KSP130..CBU201012-201404

1302

15301GAGE SUB-ASSY, OIL LEVEL

main15301-21040i1NZFE..NCP131201012-201203

sub15301-21060

main15301-21051i1NZFXE..NHP130..CBU201701

main15301-21060i1NZFE..NCP131201203-201701

sub15301-21061

main15301-21062i1NZFE..NCP131201709

main15301-40080i1KRFE..KSP130..CBU201404-201701

main15301-40100i1KRFE..KSP130..CBU201012-201404

main15301-47050i1NRFE..NSP135..CBU201012-201701

main15301-47060i1NRFKE..NSP130201404-201701

9011906861

main90119-06861

9011908C71

main90119-08C71

9025006003

main90250-06003

9212280814

main92122-80814

9415180800

main94151-80800

19 parts on this diagram · 13 diagrams in section
