HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

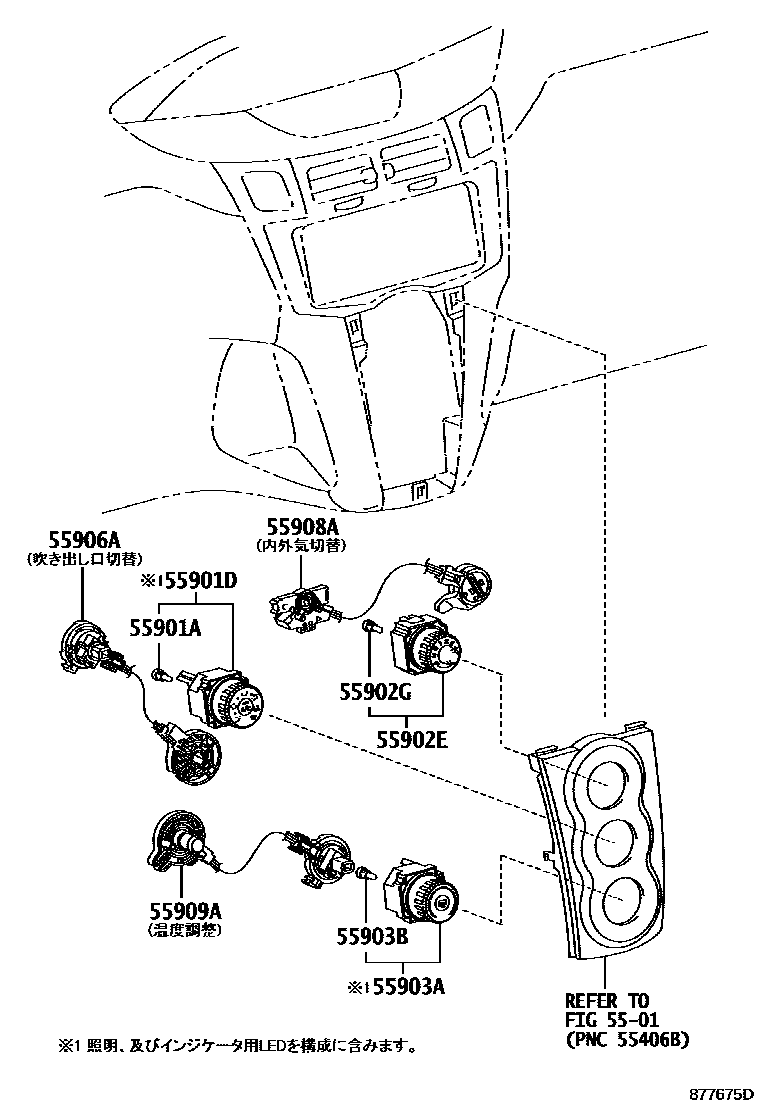

Parts diagram
5501
55901ABULB, HEATER CONTROL SUB-ASSY, NO.1
main90010-01112i200808-201012
main90010-01112i200501-200809
main90010-01113i200501-200708
55901DCONTROL SUB-ASSY, HEATER, NO.1
main55901-52090i200501-200708
main55901-52130i200501-200708
sub55901-52090
main55901-52260i200708-200809
main55901-52260i200808-201012
55902ECONTROL SUB-ASSY, HEATER, NO.2
main55902-52010i200501-200708
main55902-52030i200501-200708
main55902-52110i200708-200809
sub55902-52030
main55902-52140i200808-201012
55902GBULB, HEATER CONTROL SUB-ASSY, NO.2
main90010-01112i200501-200809
main90010-01112i200808-201012
main90010-01113i200501-200708
55903ACONTROL SUB-ASSY, HEATER, NO.3
main55903-52010i200501-200708
sub55903-52040
main55903-52090i200501-200708
main55903-52280i200708-200809
main55903-52280i200808-201012
main55903-52280i200808-201012
55903BBULB, HEATER CONTROL SUB-ASSY, NO.3
main90010-01112i200501-200809
main90010-01112i200808-201012
main90010-01112i200808-201012
main90010-01113i200501-200708
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
main55906-52131i200501-200502
sub55906-52132
main55906-52132i200503-200708
main55906-52132i200708-200809
main55906-52132i200808-201012
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
main55908-52130i200501-200708
main55908-52130i200708-200809
main55908-52130i200808-201012
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
main55909-52120i200501-200708
main55909-52120i200708-200809
main55909-52120i200808-201012

10 parts on this diagram · 4 diagrams in section
