WINDSHIELD WIPER

85012ACRANK SUB-ASSY, FRONT WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-1A080iKSP90,NCP9#,SCP90200808-201012

main85110-52280iKSP90,NCP9#,SCP90200501-200708

sub85110-52330

sub85110-52490

main85110-52490iNCP91,SCP90..RS200708-200809

85160LINK ASSY, WINDSHIELD WIPER

main85150-52230iKSP90,NCP9#,SCP90200501-201012

85211BARM, FRONT WIPER, RH

main85211-52210iKSP90,NCP9#,SCP90200501-201012

85212ABLADE, FR WIPER, RH

main85212-30370iKSP90,NCP9#,SCP90200501-201012

85214ARUBBER, WIPER, RH

main85214-50100iKSP90,NCP9#,SCP90200501-201012

85214BRUBBER, WIPER, LH

main85214-68010iKSP90,NCP9#,SCP90200501-200511

sub85214-68011

main85214-68011iKSP90,NCP9#,SCP90200512-201012

85221BARM, FRONT WIPER, LH

main85221-52210iKSP90,NCP9#,SCP90200501-201012

85222ABLADE, FR WIPER, LH

main85222-68010iKSP90,NCP9#,SCP90200501-200511

sub85222-68011

main85222-68011iKSP90,NCP9#,SCP90200512-201012

85291ABLADE, FRONT WIPER, WINTER, RH

85291BBLADE, FRONT WIPER, WINTER, LH

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iKSP90,NCP9#,SCP90200501-201012

9011906864

main90119-06864

9018210006

main90182-10006

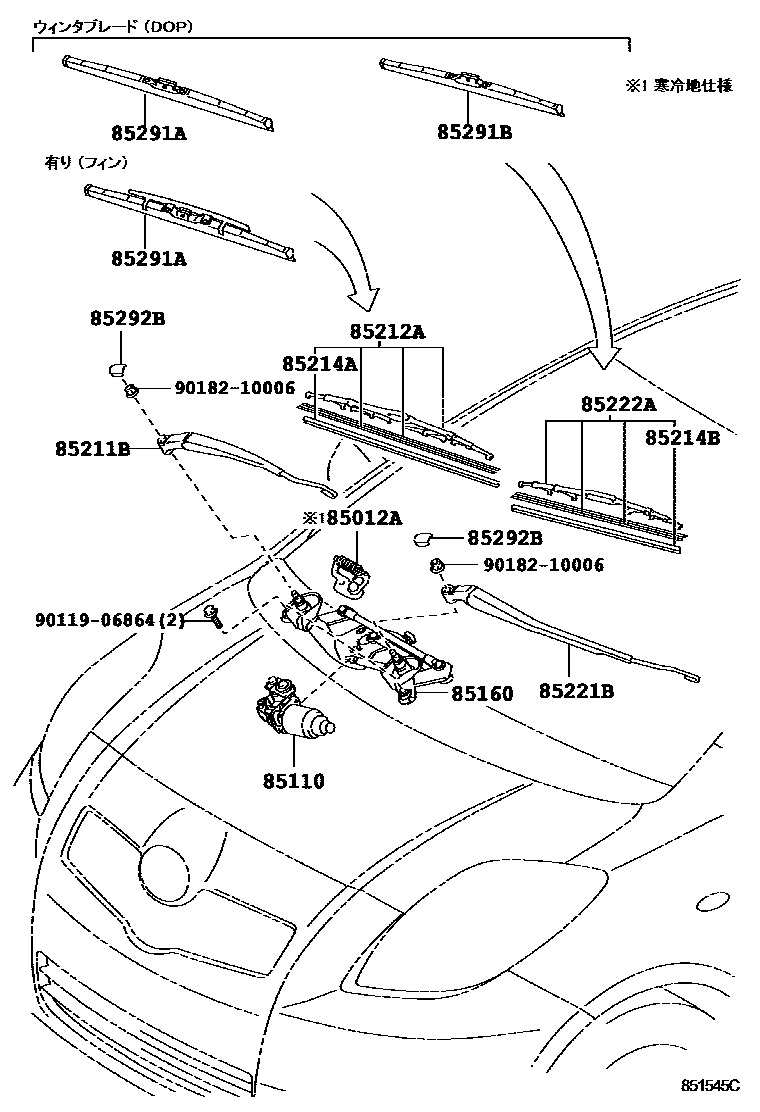

14 parts on this diagram · 1 diagram in section
