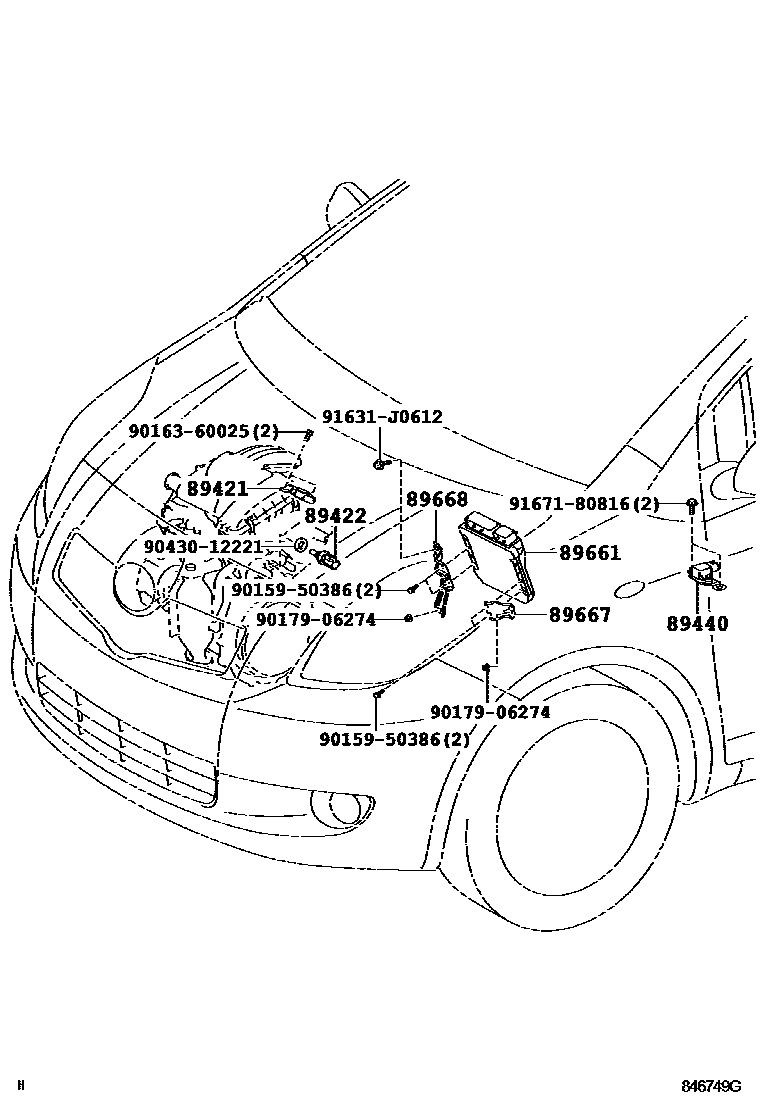

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-52010iKSP90200501-201012

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iKSP90,NCP9#,SCP90..B,F,ILL,U200501-201012

89440SENSOR ASSY, DECELERATION

main89440-52020iKSP90,NCP91,SCP90..CVFC200501-200603

sub89440-52050

main89440-52050iKSP90,NCP91,SCP90..CVFC200604-200706

main89440-52070iKSP90,NCP91,SCP90..CVFC200707-201012

main89441-12060iNCP95200704-201012

main89441-60010iNCP95200501-200703

89661COMPUTER, ENGINE CONTROL

main89661-52A90iSCP90200501-200708

main89661-52B00iNCP91..CVFC200501-200512

main89661-52B10iNCP91..5F200501-200708

main89661-52B20iNCP95..F200501-201008

main89661-52C70iKSP90200501-200502

sub89661-52C71

main89661-52C71iKSP90200503-200609

sub89661-52C72

main89661-52C72iKSP90200610-200908

main89661-52D50iNCP95..F200501-201008

main89661-52D50iNCP95..ILL,U200501-201008

main89661-52F20iNCP91..CVFC200512-200708

main89661-52G00iSCP90200708-200908

main89661-52G10iNCP91..5F200708-201008

main89661-52G20iNCP91..CVFC..RS200708-201008

main89661-52M60iKSP90200908-201008

main89661-52M70iSCP90200908-201008

main89661-52Q00iSCP90201008-201012

sub89661-52Q01

main89661-52Q10iNCP95..F201008-201012

sub89661-52Q11

main89661-52Q20iNCP95..ILL,U201008-201012

sub89661-52Q21

main89661-52Q20iNCP95..ILL,U201008-201012

sub89661-52Q21

main89661-52Q60iKSP90201008-201012

sub89661-52Q61

main89661-52U50iNCP91201008-201012

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-52190iKSP90,NCP9#,SCP90200501-201012

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52210iKSP90,NCP9#,SCP90200501-201012

9015950386

main90159-50386

9016360025

main90163-60025

9017906274

main90179-06274

9043012221

main90430-12221

91631J0612

main91631-J0612

9167180816

main91671-80816

12 parts on this diagram · 3 diagrams in section
