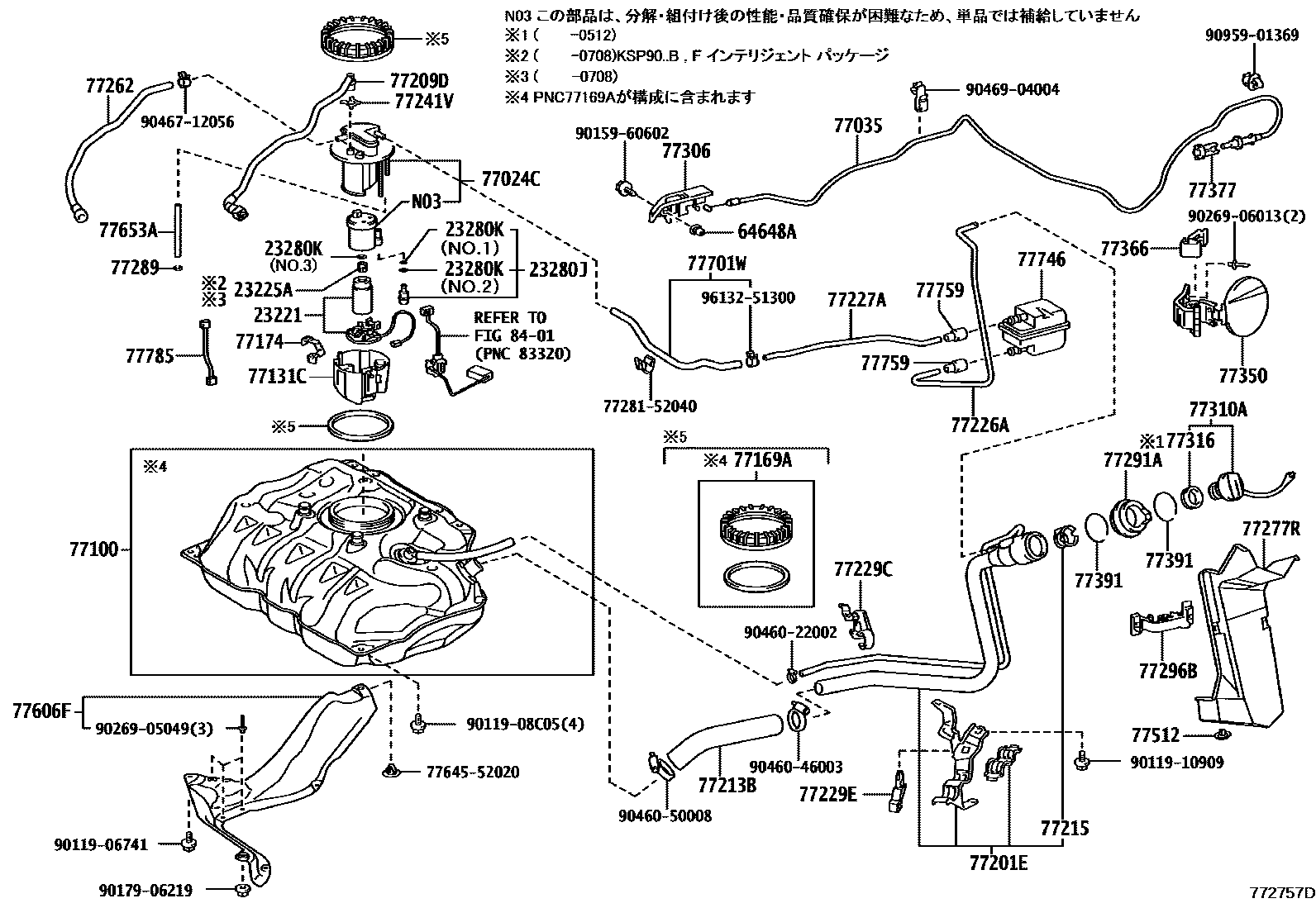

FUEL TANK & TUBE

0001 1����� ��� 0002 1����� ��� 0003 1����� ��� 0004 1����� ��� 0005 1����� ����� 0006 1����� ����� 0007 1����� �����(��������� �������

23221PUMP, FUEL

main23220-21131i1KRFE,1NZFE,2SZFE..KSP90,NCP91,SCP90200501-200608

sub23220-21132

main23220-21132i1KRFE,1NZFE,2SZFE..KSP90,NCP91,SCP90200609-200708

main23220-21141i2NZFE..NCP95200501-200608

sub23220-21142

main23220-21142i2NZFE..NCP95200609-200708

main23220-21200i1KRFE,1NZFE,2SZFE..KSP90,NCP91,SCP90200904-201012

sub23220-21211

sub77785-52110

main23220-21210i1NZFE,2SZFE..NCP91,SCP90..RS200708-200903

sub23220-21211

sub77785-12010

sub77785-52101

sub77785-52110

main23220-21220i2NZFE..NCP95200708-201012

sub23220-21221

sub77785-52110

23225ASPACER, FUEL PUMP

main23225-21020i1KRFE,1NZFE,2NZFE,2SZFE..KSP90,NCP9#,SCP90..B,F,ILL,U200708-201012

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2NZFE..NCP95200501-201012

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i1NZFE,2SZFE..NCP91,SCP90..RS200501-201012

main90301-08020i1NZFE,2SZFE..NCP91,SCP90..RS200501-201012

main90301-08022i1KRFE,1NZFE,2NZFE,2SZFE..KSP90,NCP9#,SCP90200708-200710

sub90301-08020

main90301-15024i1KRFE,1NZFE,2NZFE,2SZFE..KSP90,NCP9#,SCP90200501-201012

64648AGROMMET, LUGGAGE DOOR LOCK OPENER

main64648-32020iKSP90,NCP9#,SCP90..B,F,ILL,U200501-201012

77024CPLATE SUB-ASSY, FUEL SUCTION W/FUEL FILTER

main77024-52120iKSP90,NCP91,SCP90200501-200704

sub77024-52121

main77024-52121iKSP90,NCP91,SCP90200705-200708

sub77024-52122

main77024-52140iNCP95200501-200704

sub77024-52141

main77024-52141iNCP95200705-200708

main77024-52170iKSP90,NCP91,SCP90200708-200910

sub77024-52171

main77024-52171iKSP90,NCP91,SCP90200910-201012

main77024-52190iNCP95200708-200910

sub77024-52191

main77024-52191iNCP95200910-201012

sub77024-52192

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-52161iKSP90,NCP9#,SCP90..B,F,ILL,U200501-201012

77100TANK ASSY, FUEL

main77001-52160iNCP95200501-200809

sub77001-52161

main77001-52161iNCP95200810-201012

main77001-52200iKSP90,NCP91,SCP90200501-200710

sub77001-52201

main77001-52201iKSP90,NCP91,SCP90200710-201012

77131CSUB-TANK, FUEL, NO.1

main77131-52070iKSP90,NCP91,SCP90200501-200507

sub77131-52071

main77131-52071iNCP91,SCP90..RS200508-201012

sub77131-52110

main77131-52080iNCP95200501-200507

sub77131-52081

main77131-52081iNCP95200508-200610

sub77131-52082

main77131-52082iNCP95200611-201012

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iNCP95200501-201012

main77169-52040iKSP90,NCP91,SCP90200501-201012

77174SUPPORT, FUEL SUCTION, NO.1

main77174-52050iKSP90,NCP9#,SCP90200501-200708

main77174-52070iKSP90,NCP9#,SCP90..B,F,ILL,U200708-201012

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-52210iKSP90,NCP91,SCP90200501-200801

main77201-52211iNCP91,SCP90..RS200801-201012

main77201-52240iNCP95200501-200801

sub77201-52440

main77201-52241iNCP95200801-201012

sub77201-52242

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-52090iKSP90,NCP91,SCP90200501-200801

sub77209-52091

main77209-52091iKSP90,NCP91,SCP90200802-201012

main77209-52110iNCP95200501-201012

sub77209-52111

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-52130iKSP90,NCP91,SCP90200501-200908

sub77213-52190

main77213-52150iNCP95200501-201012

main77213-52190iKSP90,NCP91,SCP90200909-201012

77215PLATE, FUEL TANK FILLER PIPE FLANGE

main77215-51010iKSP90,NCP91,SCP90200501-201012

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-52050iKSP90,NCP91,SCP90200501-200801

main77226-52051iKSP90,NCP91,SCP90..B,F,ILL,U200801-201012

77227ATUBE, FUEL TANK EVAPORATION VENT

main77226-52071iNCP95200801-201012

main77227-52020iKSP90,NCP91,SCP90200501-200801

main77227-52040iNCP95200501-200801

77229CCLAMP, BREATHER TUBE

main77285-52080iKSP90,NCP91,SCP90200501-201012

77229ECLAMP, BREATHER TUBE

main77229-52040iKSP90,NCP9#,SCP90200501-201012

77241VCLIP, TUBE JOINT

main77241-32060iNCP95200501-201012

main77241-33011iKSP90,NCP91,SCP90201005-201012

main77241-60320iKSP90,NCP91,SCP90200501-201004

77262TUBE, FUEL EMISSION, NO.2

main77028-52010iKSP90,NCP91,SCP90200501-201011

sub77028-52020

main77028-52020iKSP90,NCP91,SCP90201011-201012

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-52030iKSP90,NCP9#,SCP90200501-200801

main77277-52031iKSP90,NCP9#,SCP90..B,F,ILL,U200801-201012

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52110iKSP90,NCP9#,SCP90200501-201012

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-52010iKSP90,NCP9#,SCP90200501-201012

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77296-52020iNCP95200501-201012

main77296-52030iKSP90,NCP91,SCP90200501-201012

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-52030iKSP90,NCP9#,SCP90200501-201009

main77306-52050iKSP90,NCP9#,SCP90201009-201012

77310ACAP ASSY, FUEL TANK

main77300-52030iKSP90,NCP9#,SCP90200501-201012

77316GASKET, FUEL TANK CAP

main77316-52020iKSP90,NCP9#,SCP90200501-200512

sub77316-52040

main77316-52040iKSP90,NCP9#,SCP90200808-201012

77350LID ASSY, FUEL FILLER OPENING

main77350-52130iKSP90,NCP9#,SCP90200501-201012

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-52010iKSP90,NCP9#,SCP90200501-201012

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-52020iKSP90,NCP9#,SCP90200501-201012

77391RING, FUEL INLET BOX

main77391-12020iKSP90,NCP9#,SCP90200501-201012

77512BRACKET, FUEL TANK, REAR

main77512-35140iKSP90,NCP9#,SCP90200501-201012

77606FCASE SUB-ASSY, FUEL TANK COVER VENT

main77606-52060iKSP90,NCP91,SCP90200501-201012

77653ACUSHION, FUEL TANK, NO.3

main77652-52040iKSP90,NCP9#,SCP90200501-201012

77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1

main77701-52010iKSP90,NCP91,SCP90200501-201012

77746FILTER, CHARCOAL CANISTER, NO.2

main77746-33010iKSP90,NCP9#,SCP90200501-200801

77759HOSE, CHARCOAL CANISTER

main77759-52010iNCP95200501-200801

77785HARNESS, FUEL PUMP

main77785-52060iKSP90,NCP9#,SCP90200501-201012

8401

7728152040BRACKET, FUEL MAIN TUBE, NO.1

main77281-52040

7764552020PACKING, FUEL TANK BRACKET UPPER, B

main77645-52020

9011906741

main90119-06741

9011908C05

main90119-08C05

9011910909

main90119-10909

9015960602

main90159-60602

9017906219

main90179-06219

9026905049

main90269-05049

9026906013

main90269-06013

9046022002

main90460-22002

9046046003

main90460-46003

9046050008

main90460-50008

9046712056

main90467-12056

9046904004

main90469-04004

9095901369

main90959-01369

9613251300

main96132-51300

56 parts on this diagram · 7 diagrams in section
