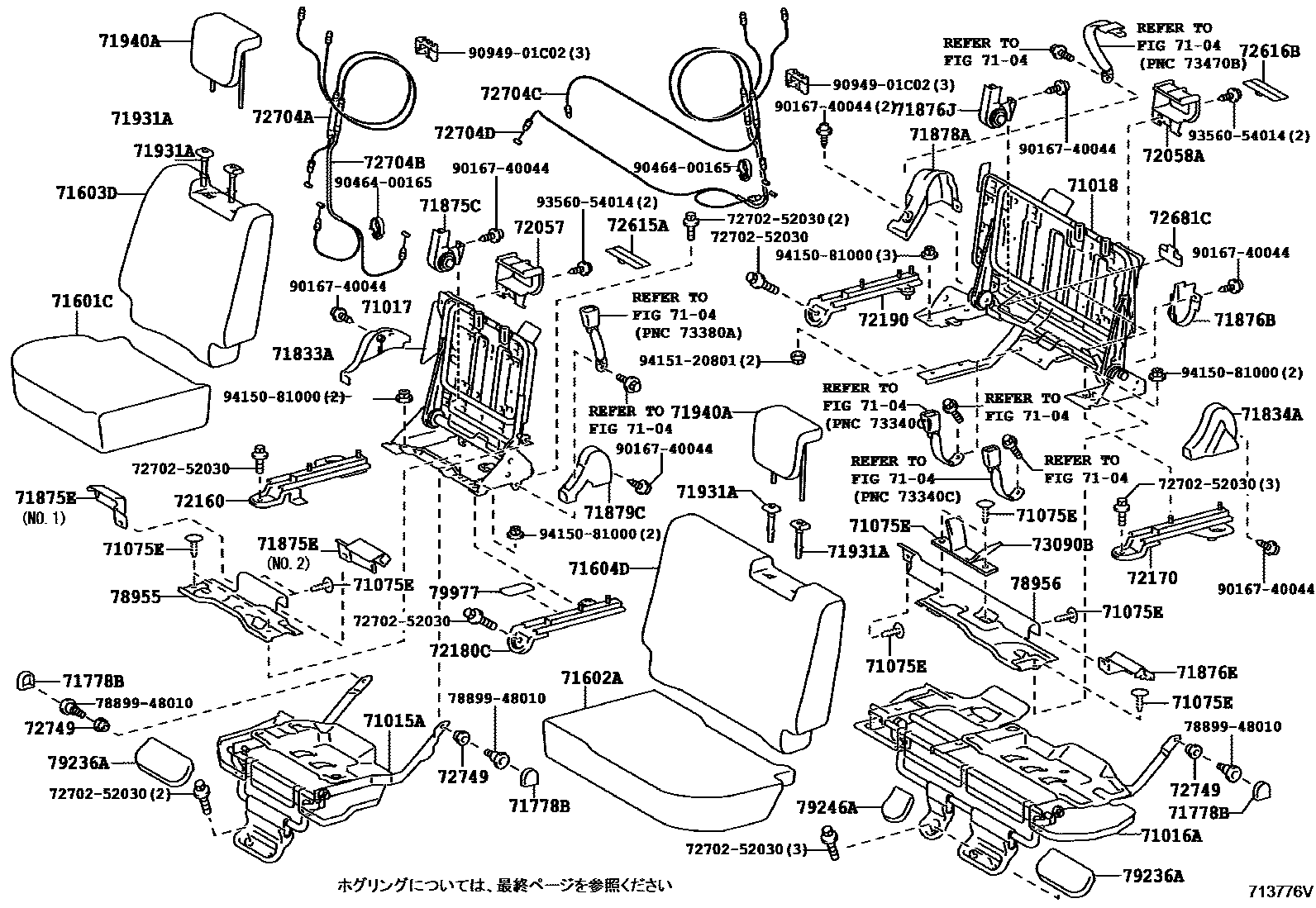

REAR SEAT & SEAT TRACK

0001 1���������� 0002 1�������� 0003 1���������� 0004 1�������� 0006 1�������� 0007 1��������(RH) 0008 1����������(LH) 0009 1�������� 0010 1����������(RH) 0011 1����������(LH) 0012 16:4 ����������(������� ������0013 1�������

71015FRAME SUB-ASSY, REAR SEAT CUSHION

main71015-52390iKSP90..ILL200512-200708

71015AFRAME SUB-ASSY, REAR SEAT CUSHION, RH

main71015-52310iNCP91,SCP90..ILL,U¥19,400200501-201012

main71015-52320iNCP95¥7,500200501-201012

71016AFRAME SUB-ASSY, REAR SEAT CUSHION, LH

main71016-52060iNCP91,SCP90..ILL,U¥22,300200501-201012

main71016-52070iNCP95¥8,700200501-201012

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-52400iNCP91,SCP90..F,U,X¥22,900200501-200511

sub71017-52401¥22,900

main71017-52401iNCP91,SCP90..F,ILL,U,X¥22,900200512-201012

main71017-52410iNCP95¥19,300200501-200511

sub71017-52411¥19,300

main71017-52411iNCP95¥19,300200512-201012

main71017-52570iKSP90..U;NCP91,SCP90..F,RS¥19,300200708-201012

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-52320iNCP95¥24,300200501-200512

sub71018-52321¥24,400

main71018-52321iNCP95¥24,400200512-201012

main71018-52330iNCP91,SCP90..F,U,X¥35,400200501-200512

sub71018-52331¥35,500

main71018-52331iNCP91,SCP90..ILL,U¥35,500200512-201012

main71018-52430iKSP90..U;NCP91,SCP90..F,RS¥24,400200708-201012

7104

71075ECLIP(FOR REAR SEAT)

main90467-06085-B2iNCP91,SCP90..U200708-200808

DK.GRAY,TRIM1#,42

sub90467-06085¥60

main90467-06085-B2iNCP91,SCP90..U200808-201012

DK.GRAY,TRIM1#

sub90467-06085¥60

main90467-06085-B2iNCP91,SCP90..F,U,X200501-200708

DK.GRAY,TRIM1#,4#

sub90467-06085¥60

main90467-06085-B2iSCP90..ILL200512-200708

DK.GRAY,TRIM4#

sub90467-06085¥60

main90467-06085-E1iNCP91,SCP90..ILL200708-200808

GREGE,TRIM42

sub90467-06085¥60

main90467-06085-E1iNCP91,SCP90..U200708-201012

GREGE,TRIM4#

sub90467-06085¥60

71601CPAD SUB-ASSY, REAR SEAT CUSHION W/COVER, RH

main71601-52B00-C2iNCP91,SCP90..F,X200501-200708

BLACK,TRIM1#

sub71601-52B00¥30,300

sub71601-52B01¥30,300

main71601-52B00-E0iNCP91,SCP90..F,X200508-200708

GREGE,TRIM4#

sub71601-52B00¥30,300

sub71601-52B01¥30,300

main71601-52B20-C2iSCP90..U200501-200708

BLACK,TRIM1#

sub71601-52B20¥33,300

main71601-52B20-E0iSCP90..U200512-200603

GREGE,TRIM4#

sub71601-52B20¥33,300

main71601-52B20-E1iSCP90..U200603-200708

GREGE,TRIM4#

sub71601-52B20¥33,300

main71601-52B30-C3iNCP95..F200501-200708

BLACK,TRIM1#

sub71601-52B31¥30,300

main71601-52B30-E1iNCP95..F200501-200708

GREGE,TRIM4#

sub71601-52B31¥30,300

main71601-52B40-C3iNCP95..U200501-200708

BLACK,TRIM1#

sub71601-52B40¥33,300

main71601-52B40-E0iNCP95..U200512-200603

GREGE,TRIM4#

sub71601-52B40¥33,300

main71601-52B40-E1iNCP95..U200603-200708

GREGE,TRIM4#

sub71601-52B40¥33,300

main71601-52G40-B0iNCP95..F200708-201012

DK.GRAY,TRIM1#

sub71601-52G41¥30,200

main71601-52G40-E0iNCP95..F200708-201012

GREGE,TRIM4#

sub71601-52G41¥30,200

main71601-52J10-B1iNCP91,SCP90..U200708-201012

DK. GRAY,TRIM1#

main71601-52J10-E1iNCP91,SCP90..U200708-201012

GREGE,TRIM4#

main71601-52J20-B1iNCP95..U200708-201012

DK. GRAY,TRIM1#

main71601-52J20-E1iNCP95..U200708-201012

GREGE,TRIM4#

71602APAD SUB-ASSY, REAR SEAT CUSHION W/COVER, LH

main71602-52200-C2iNCP91,SCP90..F,X200501-200708

BLACK,TRIM1#

sub71602-52200¥41,500

main71602-52200-E0iNCP91,SCP90..F,X200508-200708

GREGE,TRIM4#

sub71602-52200¥41,500

main71602-52220-C2iSCP90..U200501-200708

BLACK,TRIM1#

sub71602-52220¥45,100

main71602-52220-E0iSCP90..U200512-200603

GREGE,TRIM4#

sub71602-52220¥45,100

main71602-52220-E1iSCP90..U200603-200708

GREGE,TRIM4#

sub71602-52220¥45,100

main71602-52230-C3iNCP95..F200501-200708

BLACK,TRIM1#

main71602-52230-E1iNCP95..F200501-200708

GREGE,TRIM4#

main71602-52240-C3iNCP95..U200501-200708

BLACK,TRIM1#

sub71602-52240¥46,400

main71602-52240-E0iNCP95..U200512-200603

GREGE,TRIM4#

sub71602-52240¥46,400

main71602-52240-E1iNCP95..U200603-200708

GREGE,TRIM4#

sub71602-52240¥46,400

main71602-52470-B0iNCP95..F200708-201012

DK.GRAY,TRIM1#

sub71602-52471¥42,700

main71602-52470-E0iNCP95..F200708-201012

GREGE,TRIM4#

sub71602-52471¥42,700

main71602-52480-B1iNCP91,SCP90..U200708-201012

DK. GRAY,TRIM1#

main71602-52480-E1iNCP91,SCP90..U200708-201012

GREGE,TRIM4#

main71602-52490-B1iNCP95..U200708-201012

DK. GRAY,TRIM1#

main71602-52490-E1iNCP95..U200708-201012

GREGE,TRIM4#

71603DPAD SUB-ASSY, REAR SEATBACK W/COVER, RH

main71603-52A90-C2iNCP91,SCP90..F,X200501-200708

BLACK,TRIM1#

sub71603-52A92¥30,700

main71603-52A90-E0iNCP91,SCP90..F,X200508-200708

GREGE,TRIM4#

sub71603-52A92¥30,700

main71603-52B10-C2iNCP95..F200501-200708

BLACK,TRIM1#

sub71603-52B11¥29,600

main71603-52B10-E0iNCP95..F200508-200708

GREGE,TRIM4#

sub71603-52B11¥29,600

main71603-52B20-C2iNCP95..U200501-200708

BLACK,TRIM1#

sub71603-52B20¥32,700

main71603-52B20-E0iNCP95..U200512-200603

GREGE,TRIM4#

sub71603-52B20¥32,700

main71603-52B20-E1iNCP95..U200603-200708

GREGE,TRIM4#

sub71603-52B20¥32,700

main71603-52B50-C2iSCP90..U200501-200708

BLACK,TRIM1#

sub71603-52B50¥32,700

main71603-52B50-E0iSCP90..U200512-200603

GREGE,TRIM4#

sub71603-52B50¥32,700

main71603-52B50-E1iSCP90..U200603-200708

GREGE,TRIM4#

sub71603-52B50¥32,700

main71603-52K00-B0iNCP95..F200708-201012

DK.GRAY,TRIM1#

sub71603-52K01¥29,600

sub71603-52K00¥29,600

main71603-52K00-E0iNCP95..F200708-201012

GREGE,TRIM4#

sub71603-52K01¥29,600

sub71603-52K00¥29,600

main71603-52K30-C0iNCP91,SCP90..RS200708-201012

BLACK,TRIM1#

sub71603-52K30¥30,400

main71603-52K40-B0iSCP90..F200708-201012

DK.GRAY,TRIM1#

sub71603-52K41¥30,700

sub71603-52K40¥30,700

main71603-52K40-E0iSCP90..F200708-201012

GREGE,TRIM4#

sub71603-52K41¥30,700

sub71603-52K40¥30,700

main71603-52K90-B0iNCP95..U200708-201012

DK. GRAY,TRIM1#

sub71603-52K90¥32,700

main71603-52K90-E0iNCP95..U200708-201012

GREGE,TRIM4#

sub71603-52K90¥32,700

main71603-52L00-B0iNCP91,SCP90..U200708-201012

DK. GRAY,TRIM1#

sub71603-52L00¥32,700

main71603-52L00-E0iNCP91,SCP90..U200708-201012

GREGE,TRIM4#

sub71603-52L00¥32,700

main71603-52L10-B0iKSP90..U200708-201012

DK. GRAY,TRIM1#

sub71603-52L10¥32,700

main71603-52L10-E0iKSP90..U200708-201012

GREGE,TRIM4#

sub71603-52L10¥32,700

71604DPAD SUB-ASSY, REAR SEATBACK W/COVER, LH

main71604-52A50-C2iNCP91,SCP90..F,X200501-200708

BLACK,TRIM1#

sub71604-52A52¥40,100

main71604-52A50-E0iNCP91,SCP90..F,X200508-200708

GREGE,TRIM4#

sub71604-52A52¥40,100

main71604-52A70-C2iSCP90..U200501-200708

BLACK,TRIM1#

sub71604-52A70¥44,100

main71604-52A70-E0iSCP90..U200512-200603

GREGE,TRIM4#

sub71604-52A70¥44,100

main71604-52A70-E1iSCP90..U200603-200708

GREGE,TRIM4#

sub71604-52A70¥44,100

main71604-52A80-C2iNCP95..F200501-200708

BLACK,TRIM1#

sub71604-52A81¥40,100

main71604-52A80-E0iNCP95..F200508-200708

GREGE,TRIM4#

sub71604-52A81¥40,100

main71604-52A90-C2iNCP95..U200501-200708

BLACK,TRIM1#

sub71604-52A90¥44,100

main71604-52A90-E0iNCP95..U200512-200603

GREGE,TRIM4#

sub71604-52A90¥44,100

main71604-52A90-E1iNCP95..U200603-200708

GREGE,TRIM4#

sub71604-52A90¥44,100

main71604-52G50-C0iNCP91,SCP90..RS200708-201012

BLACK,TRIM1#

sub71604-52G50¥40,100

main71604-52G60-B0iSCP90..F200708-201012

DK.GRAY,TRIM1#

sub71604-52G61¥40,100

sub71604-52G60¥40,100

main71604-52G60-E0iSCP90..F200708-201012

GREGE,TRIM4#

sub71604-52G61¥40,100

sub71604-52G60¥40,100

main71604-52G70-B0iNCP95..F200708-200808

DK.GRAY,TRIM1#

sub71604-52G70¥40,100

sub71604-52G71¥40,100

main71604-52G70-B1iNCP95..F200808-201012

DK.GRAY,TRIM1#

sub71604-52G70¥40,100

sub71604-52G71¥40,100

main71604-52G70-E0iNCP95..F200708-200808

GREGE,TRIM4#

sub71604-52G70¥40,100

sub71604-52G71¥40,100

main71604-52G70-E1iNCP95..F200808-201012

GREGE,TRIM4#

sub71604-52G70¥40,100

sub71604-52G71¥40,100

main71604-52J00-B0iKSP90..U200708-200808

DK. GRAY,TRIM1#

sub71604-52J00¥44,000

main71604-52J00-B1iKSP90..U200808-201012

DK. GRAY,TRIM1#

sub71604-52J00¥44,000

main71604-52J00-E0iKSP90..U200708-200808

GREGE,TRIM4#

sub71604-52J00¥44,000

main71604-52J00-E1iKSP90..U200808-201012

GREGE,TRIM4#

sub71604-52J00¥44,000

main71604-52J10-B0iNCP91,SCP90..U200708-200808

DK. GRAY,TRIM1#

sub71604-52J10¥44,000

main71604-52J10-B1iNCP91,SCP90..U200808-201012

DK. GRAY/MD.GRAY,TRIM1#

sub71604-52J10¥44,000

main71604-52J10-E0iNCP91,SCP90..U200708-200808

GREGE,TRIM4#

sub71604-52J10¥44,000

main71604-52J10-E1iNCP91,SCP90..U200808-201012

GREGE/IVORY,TRIM4#

sub71604-52J10¥44,000

main71604-52J20-B0iNCP95..U200708-200808

DK. GRAY,TRIM1#

sub71604-52J20¥44,000

main71604-52J20-B1iNCP95..U200808-201012

DK. GRAY,TRIM1#

sub71604-52J20¥44,000

main71604-52J20-E0iNCP95..U200708-200808

GREGE,TRIM4#

sub71604-52J20¥44,000

main71604-52J20-E1iNCP95..U200808-201012

GREGE,TRIM4#

sub71604-52J20¥44,000

71778BCOVER, REAR SEAT SIDE HINGE MALE, RH

main71778-52010-B0iNCP91,SCP90..F,U,X200501-200708

sub71778-52010¥370

main71778-52010-B0iNCP91,SCP90..F,U,X200501-200708

DK.GRAY,TRIM1#,4#

sub71778-52010¥370

main71778-52010-B0iSCP90..ILL200512-200708

DK.GRAY,TRIM4#

sub71778-52010¥370

main71778-52010-B0iNCP91,SCP90..U200708-200808

DK.GRAY,TRIM1#,42

sub71778-52010¥370

main71778-52010-B0iNCP91,SCP90..F,U,X200501-200708

sub71778-52010¥370

main71778-52010-B0iNCP91,SCP90..U200808-201012

DK.GRAY,TRIM1#

sub71778-52010¥370

main71778-52010-E0iNCP91,SCP90..ILL200708-200808

GREGE,TRIM42

sub71778-52010¥370

main71778-52010-E0iNCP91,SCP90..U200708-201012

GREGE,TRIM4#

sub71778-52010¥370

71833ACOVER, REAR SEAT RECLINING, NO.1 RH

main71833-52040-B1iKSP90..B,F200501-201012

DK.GRAY,TRIM1#

main71833-52040-B1iKSP90..B,F200501-200708

DK.GRAY,TRIM1#,4#

main71833-52040-B1iKSP90..ILL200512-200708

DK.GRAY,TRIM4#

main71833-52040-B1iKSP90..B,F200708-200808

DK.GRAY,TRIM1#,42

main71833-52040-E0iKSP90..B200808-201012

GREGE,TRIM4#

main71833-52040-E0iKSP90..B,F200708-200808

GREGE,TRIM42

main71833-52050-B1iNCP95..F,U200501-200708

DK.GRAY,TRIM1#,4#

main71833-52050-B1iNCP95..F,U200708-200808

DK.GRAY,TRIM1#,42

main71833-52050-B1iNCP95..F,U200808-201012

DK.GRAY,TRIM1#

main71833-52050-B1iNCP95..ILL200512-200708

DK.GRAY,TRIM4#

main71833-52050-E0iNCP95..ILL200708-200808

GREGE,TRIM42

main71833-52050-E0iNCP95..ILL200708-201012

GREGE,TRIM4#

main71833-52060-B1iNCP91,SCP90..U200708-200808

DK.GRAY,TRIM1#,42

main71833-52060-B1iNCP91,SCP90..U200808-201012

DK.GRAY,TRIM1#

main71833-52060-B1iNCP91,SCP90..F,U,X200501-200708

DK.GRAY,TRIM1#,4#

main71833-52060-B1iSCP90..ILL200512-200708

DK.GRAY,TRIM4#

main71833-52060-E0iNCP91,SCP90..U200708-201012

GREGE,TRIM4#

main71833-52060-E0iNCP91,SCP90..ILL200708-200808

GREGE,TRIM42

main71833-52110-B0iKSP90..U;NCP91,SCP90..F,RS200708-201012

DK.GRAY,TRIM1#

main71833-52110-B0iKSP90..U;SCP90..F200708-200808

DK.GRAY,TRIM1#,42

main71833-52110-E0iKSP90..U;SCP90..F200808-201012

GREGE,TRIM4#

main71833-52110-E0iKSP90..U;SCP90..F200708-200808

GREGE,TRIM42

71834ACOVER, REAR SEAT RECLINING, NO.1 LH

main71834-52040-B1iKSP90..B,F200501-200708

DK.GRAY,TRIM1#,4#

main71834-52040-B1iKSP90..B,F200501-201012

DK.GRAY,TRIM1#

main71834-52040-B1iKSP90..B,F200708-200808

DK.GRAY,TRIM1#,42

main71834-52040-B1iKSP90..ILL200512-200708

DK.GRAY,TRIM4#

main71834-52040-E0iKSP90..F200808-201012

GREGE,TRIM4#

main71834-52040-E0iKSP90..B,F200708-200808

GREGE,TRIM42

main71834-52050-B1iNCP95..ILL200512-200708

DK.GRAY,TRIM4#

main71834-52050-B1iNCP95..F,U200808-201012

DK.GRAY,TRIM1#

main71834-52050-B1iNCP95..F,U200501-200708

DK.GRAY,TRIM1#,4#

main71834-52050-B1iNCP95..F,U200708-200808

DK.GRAY,TRIM1#,42

main71834-52050-E0iNCP95..ILL200708-201012

GREGE,TRIM4#

main71834-52050-E0iNCP95..F,U200708-200808

GREGE,TRIM42

main71834-52060-B1iNCP91,SCP90..F,U,X200501-200708

DK.GRAY,TRIM1#,4#

main71834-52060-B1iNCP91,SCP90..U200808-201012

DK.GRAY,TRIM1#

main71834-52060-B1iSCP90..ILL200512-200708

DK.GRAY,TRIM4#

main71834-52060-B1iNCP91,SCP90..U200708-200808

DK.GRAY,TRIM1#,42

main71834-52060-E0iNCP91,SCP90..ILL200708-201012

GREGE,TRIM4#

main71834-52060-E0iNCP91,SCP90..ILL200708-200808

GREGE,TRIM42

main71834-52110-B0iNCP91,SCP90..RS200708-201012

DK.GRAY,TRIM1#

main71834-52110-B0iKSP90..U;SCP90..F200708-200808

DK.GRAY,TRIM1#,42

main71834-52110-E0iKSP90..U;SCP90..F200708-200808

GREGE,TRIM42

main71834-52110-E0iKSP90..U;SCP90..F200808-201012

GREGE,TRIM4#

71875CCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-52100-B0iNCP91..RS200501-200708

DK.GRAY,TRIM1#,4#

sub71875-52100¥590

main71875-52100-B0iKSP90..B,F200501-201012

DK.GRAY,TRIM1#

sub71875-52100¥590

main71875-52100-B0iKSP90..ILL200512-200708

DK.GRAY,TRIM4#

sub71875-52100¥590

main71875-52100-B0iKSP90..B,F200708-200808

DK.GRAY,TRIM1#,42

sub71875-52100¥590

main71875-52100-E0iKSP90..B,F200708-200808

GREGE,TRIM42

sub71875-52100¥590

main71875-52100-E0iKSP90..B200808-201012

GREGE,TRIM4#

sub71875-52100¥590

main71875-52120-B0iNCP91,SCP90..F,U,X200501-200708

DK.GRAY,TRIM1#,4#

sub71875-52120¥590

main71875-52120-B0iSCP90..ILL200512-200708

DK.GRAY,TRIM4#

sub71875-52120¥590

main71875-52121-B0iSCP90..ILL200609-200708

DK.GRAY,TRIM1#,4#

sub71875-52121¥940

main71875-52121-B0iSCP90..ILL200609-200708

DK.GRAY,TRIM4#

sub71875-52121¥940

main71875-52121-B0iNCP9#,SCP90..U200708-201012

DK.GRAY,TRIM1#

sub71875-52121¥940

main71875-52121-B0iNCP95..F200808-201012

sub71875-52121¥940

main71875-52121-E1iNCP9#,SCP90..U200808-201012

sub71875-52121¥940

main71875-52121-E1iSCP90..ILL,U;NCP9#..F,ILL,U200708-201012

GREGE,TRIM4#

sub71875-52121¥940

main71875-52320-B0iKSP90..U;NCP91,SCP90..F,RS200708-201012

DK.GRAY,TRIM1#

sub71875-52320¥740

main71875-52320-B0iKSP90..U;SCP90..F200708-200808

DK.GRAY,TRIM1#,42

sub71875-52320¥740

main71875-52320-E0iKSP90..U;SCP90..F200708-200808

GREGE,TRIM42

sub71875-52320¥740

main71875-52320-E0iKSP90..U;SCP90..F200808-201012

GREGE,TRIM4#

sub71875-52320¥740

71875ECOVER, RECLINING ADJUSTER INSIDE, RH

main71875-52130-B0iNCP91,SCP90..U200808-201012

sub71875-52130¥1,530

main71875-52130-B0iSCP90..ILL200512-200708

sub71875-52130¥1,530

main71875-52130-B0iNCP91,SCP90..F,U,X200501-200708

sub71875-52130¥1,530

main71875-52130-B0iNCP91,SCP90..U200708-200808

sub71875-52130¥1,530

main71875-52130-E0iNCP91,SCP90..ILL200708-200808

sub71875-52130¥1,530

main71875-52130-E0iNCP91,SCP90..ILL,U200708-201012

sub71875-52130¥1,530

main71875-52230-B0iNCP95..F200808-201012

DK.GRAY,TRIM1#

sub71875-52230¥740

main71875-52230-B0iNCP95..F200808-201012

sub71875-52230¥740

main71875-52230-B0iNCP95..F,U200501-200708

DK.GRAY,TRIM1#,4#

sub71875-52230¥740

main71875-52230-B0iNCP95..ILL200512-200708

DK.GRAY,TRIM4#

sub71875-52230¥740

main71875-52230-B0iNCP95..F,U200708-200808

DK.GRAY,TRIM1#,42

sub71875-52230¥740

main71875-52230-E0iNCP95..ILL200708-200808

GREGE,TRIM42

sub71875-52230¥740

main71875-52230-E0iNCP95..ILL200708-201012

GREGE,TRIM4#

sub71875-52230¥740

main71875-52230-E0iNCP95..F,ILL200808-201012

sub71875-52230¥740

main71876-52140-B0iNCP91,SCP90..U200708-200808

sub71876-52140¥1,010

main71876-52140-B0iSCP90..ILL200512-200708

sub71876-52140¥1,010

main71876-52140-B0iNCP91,SCP90..U200808-201012

sub71876-52140¥1,010

main71876-52140-B0iNCP91,SCP90..F,U,X200501-200708

sub71876-52140¥1,010

main71876-52140-E0iNCP91,SCP90..U200708-200808

sub71876-52140¥1,010

main71876-52140-E0iNCP91,SCP90..ILL200708-201012

sub71876-52140¥1,010

71876BCOVER, RECLINING ADJUSTER INSIDE, LH

main71876-52100-B0iKSP90..B,F200501-201012

DK.GRAY,TRIM1#

sub71876-52100¥590

main71876-52100-B0iKSP90..B,F200708-200808

DK.GRAY,TRIM1#,42

sub71876-52100¥590

main71876-52100-B0iKSP90..B,F200501-200708

DK.GRAY,TRIM1#,4#

sub71876-52100¥590

main71876-52100-B0iKSP90..ILL200512-200708

DK.GRAY,TRIM4#

sub71876-52100¥590

main71876-52100-E0iKSP90..F200808-201012

GREGE,TRIM4#

sub71876-52100¥590

main71876-52100-E0iKSP90..B,F200708-200808

GREGE,TRIM42

sub71876-52100¥590

main71876-52120-B0iNCP95..F,U200501-200708

DK.GRAY,TRIM1#,4#

sub71876-52120¥590

main71876-52120-B0iSCP90..ILL200512-200708

DK.GRAY,TRIM4#

sub71876-52120¥590

main71876-52121-B0iNCP91,SCP90..F,U,X200609-200708

DK.GRAY,TRIM4#

sub71876-52121¥940

main71876-52121-B0iSCP90..ILL200609-200708

DK.GRAY,TRIM1#,4#

sub71876-52121¥940

main71876-52121-B0iSCP90..U;NCP9#..F,U200708-201012

DK.GRAY,TRIM1#

sub71876-52121¥940

main71876-52121-E1iSCP90..ILL,U;NCP9#..F,ILL,U200708-201012

GREGE,TRIM4#

sub71876-52121¥940

main71876-52290-B0iNCP91,SCP90..RS200708-201012

DK.GRAY,TRIM1#

sub71876-52290¥740

main71876-52290-B0iKSP90..U;SCP90..F200708-200808

DK.GRAY,TRIM1#,42

sub71876-52290¥740

main71876-52290-E0iKSP90..U;SCP90..F200708-200808

GREGE,TRIM42

sub71876-52290¥740

main71876-52290-E0iKSP90..U;SCP90..F200808-201012

GREGE,TRIM4#

sub71876-52290¥740

71876ECOVER, RECLINING ADJUSTER INSIDE, LH

main71875-52210-B0iNCP95..F,U200808-201012

sub71875-52210¥630

main71875-52210-B0iNCP95..F,U200501-200708

sub71875-52210¥630

main71875-52210-B0iNCP95..ILL200512-200708

sub71875-52210¥630

main71875-52210-B0iNCP95..F,U200708-200808

sub71875-52210¥630

main71875-52210-E0iNCP95..ILL200708-201012

sub71875-52210¥630

main71875-52210-E0iNCP95..F,U200708-200808

sub71875-52210¥630

main71876-52130-B0iSCP90..ILL200512-200708

DK.GRAY,TRIM4#

sub71876-52130¥1,530

main71876-52130-B0iNCP91,SCP90..U200808-201012

DK.GRAY,TRIM1#

sub71876-52130¥1,530

main71876-52130-B0iNCP91,SCP90..F,U,X200501-200708

DK.GRAY,TRIM1#,4#

sub71876-52130¥1,530

main71876-52130-B0iNCP91,SCP90..U200708-200808

DK.GRAY,TRIM1#,42

sub71876-52130¥1,530

main71876-52130-E0iNCP91,SCP90..U200708-200808

GREGE,TRIM42

sub71876-52130¥1,530

main71876-52130-E0iNCP91,SCP90..ILL200708-201012

GREGE,TRIM4#

sub71876-52130¥1,530

main71876-52230-B0iNCP95..ILL200512-200708

sub71876-52230¥740

main71876-52230-B0iNCP95..F,U200501-200708

sub71876-52230¥740

main71876-52230-B0iNCP95..F,U200808-201012

sub71876-52230¥740

main71876-52230-B0iNCP95..F,U200708-200808

sub71876-52230¥740

main71876-52230-E0iNCP95200708-201012

sub71876-52230¥740

main71876-52230-E0iNCP95..F,U200708-200808

sub71876-52230¥740

71876JCOVER, RECLINING ADJUSTER INSIDE, LH

main71875-52140-B0iNCP91,SCP90..F,U,X200501-200708

DK.GRAY,TRIM1#,4#

sub71875-52140¥940

main71875-52140-B0iSCP90..ILL200512-200708

DK.GRAY,TRIM4#

sub71875-52140¥940

main71875-52141-B0iNCP91,SCP90..F,U,X200609-200708

DK.GRAY,TRIM1#,4#

sub71875-52141¥940

main71875-52141-B0iNCP91,SCP90..F,U,X200609-200708

DK.GRAY,TRIM4#

sub71875-52141¥940

main71875-52141-B0iSCP90..U;NCP9#..F,U200708-201012

DK.GRAY,TRIM1#

sub71875-52141¥940

main71875-52141-E1iSCP90..ILL,U;NCP9#..F,ILL,U200708-201012

GREGE,TRIM4#

sub71875-52141¥940

main71875-52340-B0iKSP90..U;NCP91,SCP90..F,RS200708-201012

DK.GRAY,TRIM1#

sub71875-52340¥1,070

main71875-52340-B0iKSP90..U;SCP90..F200708-200808

DK.GRAY,TRIM1#,42

sub71875-52340¥1,070

main71875-52340-E0iKSP90..U;SCP90..F200808-201012

GREGE,TRIM4#

sub71875-52340¥1,070

main71875-52340-E0iKSP90..U;SCP90..F200708-200808

GREGE,TRIM42

sub71875-52340¥1,070

71878ACOVER, REAR SEAT RECLINING, INNER RH

main71878-52070-B2iNCP91,SCP90..U200708-200808

DK.GRAY,TRIM1#,42

sub71878-52070¥2,400

main71878-52070-B2iNCP91,SCP90..F,U,X200501-200708

DK.GRAY,TRIM1#,4#

sub71878-52070¥2,400

main71878-52070-B2iNCP91,SCP90..U200808-201012

DK.GRAY,TRIM1#

sub71878-52070¥2,400

main71878-52070-B2iSCP90..ILL200512-200708

DK.GRAY,TRIM4#

sub71878-52070¥2,400

main71878-52070-E0iNCP91,SCP90..ILL200708-201012

GREGE,TRIM4#

sub71878-52070¥2,400

main71878-52070-E0iNCP91,SCP90..ILL200708-200808

GREGE,TRIM42

sub71878-52070¥2,400

main71878-52080-B1iNCP95..F,U200708-200808

DK.GRAY,TRIM1#,42

sub71878-52080¥2,330

main71878-52080-B1iNCP95..ILL200512-200708

DK.GRAY,TRIM4#

sub71878-52080¥2,330

main71878-52080-B1iNCP95..F,U200501-200708

DK.GRAY,TRIM1#,4#

sub71878-52080¥2,330

main71878-52080-B1iNCP95..F,U200808-201012

DK.GRAY,TRIM1#

sub71878-52080¥2,330

main71878-52080-E0iNCP95..ILL200708-201012

GREGE,TRIM4#

sub71878-52080¥2,330

main71878-52080-E0iNCP95..F,U200708-200808

GREGE,TRIM42

sub71878-52080¥2,330

71879CCOVER, REAR SEAT RECLINING, INNER LH

main71879-52080-B1iNCP95..F,U200808-201012

DK.GRAY,TRIM1#

sub71879-52080¥1,780

main71879-52080-B1iNCP95..F,U200501-200708

DK.GRAY,TRIM1#,4#

sub71879-52080¥1,780

main71879-52080-B1iNCP95..ILL200512-200708

DK.GRAY,TRIM4#

sub71879-52080¥1,780

main71879-52080-B1iNCP95..F,U200708-200808

DK.GRAY,TRIM1#,42

sub71879-52080¥1,780

main71879-52080-E0iNCP95..F,U200708-200808

GREGE,TRIM42

sub71879-52080¥1,780

main71879-52080-E0iNCP95..F,U200708-201012

GREGE,TRIM4#

sub71879-52080¥1,780

main71879-52090-B2iSCP90..ILL200512-200708

DK.GRAY,TRIM4#

sub71879-52090¥1,540

main71879-52090-B2iNCP91,SCP90..F,U,X200501-200708

DK.GRAY,TRIM1#,4#

sub71879-52090¥1,540

main71879-52090-B2iNCP91,SCP90..U200808-201012

DK.GRAY,TRIM1#

sub71879-52090¥1,540

main71879-52090-B2iNCP91,SCP90..U200708-200808

DK.GRAY,TRIM1#,42

sub71879-52090¥1,540

main71879-52090-E0iNCP91,SCP90..ILL200708-201012

GREGE,TRIM4#

sub71879-52090¥1,540

main71879-52090-E0iNCP91,SCP90..ILL200708-200808

GREGE,TRIM42

sub71879-52090¥1,540

71931ASUPPORT, REAR SEAT HEADREST

main71930-42020-B4iKSP90,NCP9#,SCP90..B,F,RS,U,X200512-200706

sub71930-52030¥950

sub71930-42020¥1,260

sub71930-44020¥1,260

main71930-42020-E1iKSP90,NCP95,SCP90..ILL200512-200708

sub71930-52030¥950

sub71930-42020¥1,260

sub71930-44020¥1,260

main71930-47010-B2iNCP9#,SCP90200501-200512

sub71930-47010¥780

sub71930-44020¥1,260

main71930-47010-E3iKSP90,NCP9#,SCP90..B,F,X200508-200512

sub71930-47010¥780

sub71930-44020¥1,260

main71930-52030-B0iKSP90,NCP9#,SCP90..B,F,RS,U,X200707-201012

sub71930-52030¥950

main71930-52030-E0iKSP90,NCP9#,SCP90..B,F,U,X200707-201012

sub71930-52030¥950

main71931-42020-B4iKSP90,NCP9#,SCP90..B,F,RS,U200512-201012

sub71931-42020¥590

main71931-42020-E1iKSP90,NCP9#,SCP90..B,F,ILL,U,X200512-201012

sub71931-42020¥590

main71931-47010-B2iNCP9#,SCP90200501-200512

sub71931-47010¥480

sub71931-42020¥590

main71931-47010-E4iKSP90,NCP9#,SCP90..B,F,X200508-200512

sub71931-47010¥480

sub71931-42020¥590

71940AHEADREST ASSY, REAR SEAT

main71940-52240-C0iNCP9#,SCP90..F,X200501-200708

BLACK,TRIM1#

sub71940-52240¥27,600

main71940-52240-E0iNCP9#,SCP90..F,X200508-200708

GREGE,TRIM4#

sub71940-52240¥27,600

main71940-52260-C0iNCP95,SCP90..U200501-200708

BLACK,TRIM1#

sub71940-52260¥27,600

main71940-52260-E0iNCP95,SCP90..U200512-200603

GREGE,TRIM4#

sub71940-52260¥27,600

main71940-52260-E1iNCP95,SCP90..U200603-200708

GREGE,TRIM4#

sub71940-52260¥27,600

main71940-52270-C0iKSP90..B,F200501-200708

BLACK,TRIM1#

sub71940-52270¥27,600

main71940-52270-E0iKSP90..B,F200508-200708

GREGE,TRIM4#

sub71940-52270¥27,600

main71940-52280-C0iNCP91..RS200501-200708

BLACK,TRIM1#

sub71940-52280¥27,600

main71940-52430-E1iNCP95,SCP90..ILL200512-200708

GRAGE,TRIM4#

main71940-52480-E0iKSP90..ILL200512-200708

GRAGE,TRIM4#

main71940-52550-C1iNCP91,SCP90..RS200708-201012

BLACK,TRIM1#

main71940-52560-C1iNCP95..F200708-201009

BLACK,TRIM1#

main71940-52560-E2iNCP95..F200708-201009

GREGE,TRIM4#

main71940-52561-C1iNCP95..F201010-201012

BLACK,TRIM1#

sub71940-52560¥27,600

main71940-52561-E2iNCP95..F201010-201012

GREGE,TRIM4#

sub71940-52560¥27,600

main71940-52640-B0iKSP90..U200708-201012

DK. GRAY,TRIM1#

main71940-52640-E0iKSP90..U200708-201012

GREGE,TRIM4#

main71940-52650-C0iSCP90..F200708-201009

BLACK,TRIM1#

main71940-52650-E0iSCP90..F200708-201009

GREGE,TRIM4#

main71940-52651-C0iSCP90..F201010-201012

BLACK,TRIM1#

sub71940-52650¥27,600

main71940-52651-E0iSCP90..F201010-201012

GREGE,TRIM4#

sub71940-52650¥27,600

main71940-52660-C0iKSP90..B,F200708-201012

BLACK,TRIM1#

main71940-52660-E0iKSP90..F200708-201012

GREGE,TRIM4#

main71940-52670-B0iNCP9#,SCP90..U200708-201012

DK. GRAY,TRIM1#

sub71940-52670¥27,600

main71940-52670-E0iNCP9#,SCP90..U200708-201012

GREGE,TRIM4#

sub71940-52670¥27,600

main71940-52680-E0iNCP9#,SCP90..ILL200708-201009

GRAGE,TRIM4#

sub71940-52680¥14,100

main71940-52681-E1iNCP9#,SCP90..ILL201010-201012

GRAGE,TRIM4#

sub71940-52680¥14,100

72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

main72057-52010-B0iNCP91,SCP90..U200501-201012

DK.GRAY,TRIM1#

main72057-52010-E0iNCP91,SCP90..ILL,U200508-201012

GREGE,TRIM4#

main72057-52020-B0iKSP90,NCP95..B,F,U200501-201012

DK.GRAY,TRIM1#

sub72057-52020¥1,290

main72057-52020-B0iKSP90,NCP95..B,F,U200501-200808

DK.GRAY,TRIM1#,42

sub72057-52020¥1,290

main72057-52020-E1iKSP90..B200512-201012

GREGE,TRIM4#

sub72057-52020¥1,290

main72057-52020-E1iKSP90,NCP95..B,F,U200501-200808

GREGE,TRIM42

sub72057-52020¥1,290

72058ALEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH

main72057-52020-B0iNCP95..F,U200501-200808

DK.GRAY,TRIM1#,42

sub72057-52020¥1,290

main72057-52020-B0iKSP90..U;NCP95..F,U;NCP91,SCP90..F,RS200708-201012

DK.GRAY,TRIM1#

sub72057-52020¥1,290

main72057-52020-E1iNCP95..ILL200512-201012

GREGE,TRIM4#

sub72057-52020¥1,290

main72057-52020-E1iKSP90..U;SCP90..F;NCP95..F,U200501-200808

GREGE,TRIM42

sub72057-52020¥1,290

main72058-52010-B0iNCP91,SCP90..U200501-201012

DK.GRAY,TRIM1#

main72058-52010-E0iNCP91,SCP90..F,ILL,X200508-201012

GREGE,TRIM4#

72160TRACK ASSY, REAR SEAT, OUTER RH

main72160-52020iNCP91,SCP90..F,ILL,U,X¥10,000200501-201012

72170TRACK ASSY, REAR SEAT, OUTER LH

main72170-52030iNCP91,SCP90..ILL,U¥18,700200501-201012

72180CTRACK ASSY, REAR SEAT, INNER RH

main72160-52030iNCP91,SCP90..ILL,U¥18,700200501-201012

72190TRACK ASSY, REAR SEAT INNER, LH

main72170-52020iNCP91,SCP90..ILL,U¥10,000200501-201012

72615ACOVER, REAR SEATBACK LOCK STRIKER, RH

main72615-52070-B0iSCP90..F;KSP90,NCP95..B,F,U200501-200808

DK.GRAY,TRIM1#,42

sub72615-52070¥360

main72615-52070-B0iKSP90,NCP95..B,F,U200501-201012

DK.GRAY,TRIM1#

sub72615-52070¥360

main72615-52070-E1iSCP90..F;KSP90,NCP95..B,F,U200508-201012

GREGE,TRIM4#

sub72615-52070¥360

main72615-52070-E1iNCP95..ILL;NCP91,SCP90..U200501-200808

GREGE,TRIM42

sub72615-52070¥360

72616BCOVER, REAR SEAT LOCK STRIKER

main72615-52070-B0iNCP91,SCP90..F,U,X200501-201012

DK.GRAY,TRIM1#

sub72615-52070¥360

main72615-52070-B0iNCP95..F,U200501-200808

DK.GRAY,TRIM1#,42

sub72615-52070¥360

main72615-52070-E1iKSP90..U;SCP90..F;NCP95..F,U200508-201012

GREGE,TRIM4#

sub72615-52070¥360

main72615-52070-E1iKSP90..U;SCP90..F;NCP95..F,U200501-200808

GREGE,TRIM42

sub72615-52070¥360

72681CHOOK, REAR SEATBACK LOCK, LOWER

main72681-52010iNCP91,SCP90..ILL,U¥260200501-201012

72704ACABLE, REAR SEAT RECLINING CONTROL

main72704-52020iKSP90..B,F¥2,530200501-201012

main72704-52030iNCP95,SCP90;KSP90,NCP91..ILL,RS,U¥2,530200501-201012

72704BCABLE, REAR SEAT RECLINING CONTROL, NO.2

main72704-52050iNCP91,SCP90..ILL,U¥3,150200501-201012

72704CCABLE, REAR NO.2 SEAT RECLINING CONTROL

main72704-52040iNCP9#,SCP90..F,ILL,U,X¥2,730200501-201012

72704DCABLE, REAR NO.2 SEAT RECLINING CONTROL

main72704-52060iNCP91,SCP90..ILL,U¥3,340200501-201012

72749SPACER, REAR SEAT RECLINING

main72749-48010iNCP91,SCP90..F,ILL,U,X¥90200501-201012

73090BPLATE ASSY, SEAT BELT ANCHOR

main73090-52010iNCP91,SCP90..ILL,U¥450200501-201012

78955COVER, REAR SEAT UNDER TRAY RH

main78955-52010iNCP91,SCP90..ILL,U¥390200802-201012

main78955-52010-B0iNCP91,SCP90..F,U,X200501-200802

DK.GRAY,TRIM1#

sub78955-52010¥390

main78955-52010-E0iNCP91,SCP90..F,ILL,X200508-200802

GREGE,TRIM4#

sub78955-52010¥390

78956COVER, REAR SEAT UNDER TRAY LH

main78955-52020iNCP91,SCP90..ILL,U¥940200802-201012

main78955-52020-B0iNCP91,SCP90..F,U,X200501-200708

DK.GRAY,TRIM1#,4#

sub78955-52020¥940

main78955-52020-B0iSCP90..ILL200512-200708

DK.GRAY,TRIM4#

sub78955-52020¥940

main78955-52020-B2iNCP91,SCP90..ILL200708-200802

DARK GRAY,TRIM1#,4#

sub78955-52020¥940

main78955-52020-B2iNCP91,SCP90..ILL200708-200802

DARK GRAY,TRIM4#

sub78955-52020¥940

79236ACOVER, NO.2 SEAT LEG

main79236-52020-C0iNCP91,SCP90..ILL200501-201012

BLACK,TRIM1#,4#

main79236-52020-C0iNCP91,SCP90..U200512-201012

BLACK,TRIM4#

79246ACOVER, NO.2 SEAT LEG, NO.2

main79246-52020-C0iNCP91,SCP90..F,U,X200501-201012

BLACK,TRIM1#,4#

main79246-52020-C0iSCP90..ILL200512-201012

BLACK,TRIM4#

79977FELT, SEATBACK

main79977-52060iNCP91,SCP90..ILL,U¥220200708-201012

7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-52030¥110

7889948010BOLT, FRONT SEAT

main78899-48010¥80

9016740044

main90167-40044¥70

9046400165

main90464-00165¥160

9094901C02

main90949-01C02¥120

9356054014

main93560-54014¥60

9415081000

main94150-81000¥100

9415120801

main94151-20801¥80

51 parts on this diagram · 12 diagrams in section
