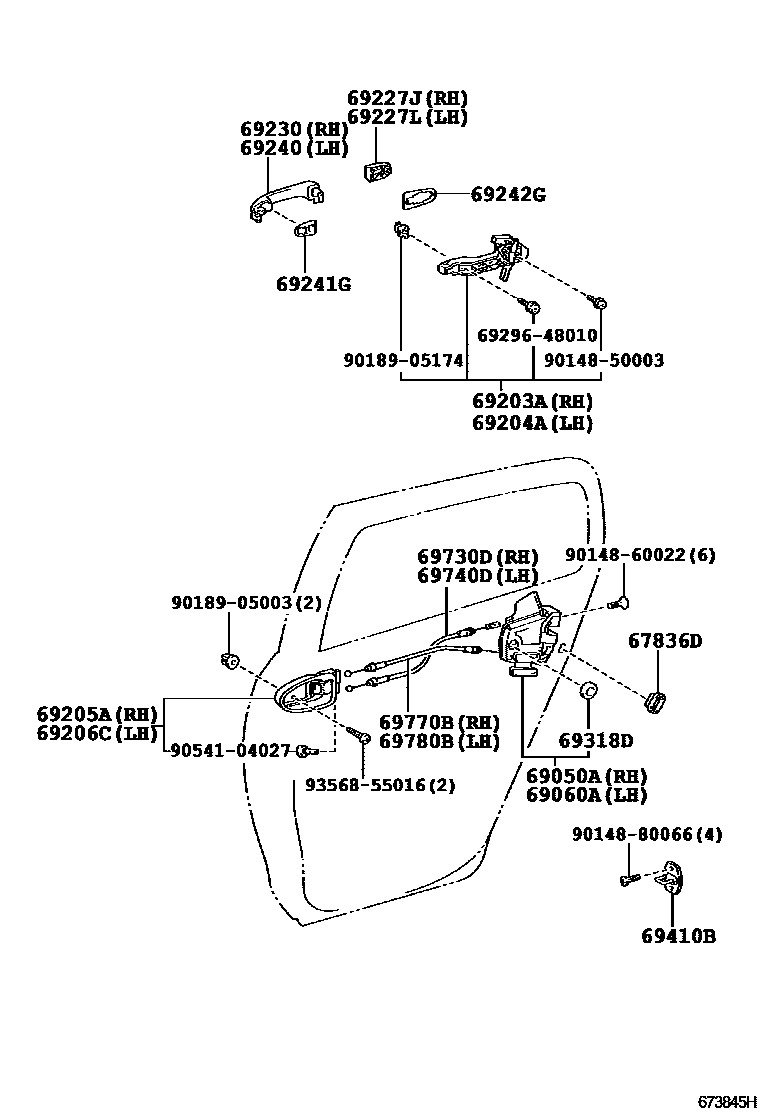

REAR DOOR LOCK & HANDLE

67836DCOVER, REAR DOOR LOCK CHILD PROTECTION

main67836-12040iKSP90,NCP9#,SCP90200501-201012

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-52190iKSP90,NCP9#,SCP90200501-201012

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-52200iKSP90,NCP9#,SCP90200501-201012

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-52040iNCP91..5F200501-201012

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-52050iKSP90,NCP9#,SCP90..ATM200501-201012

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-52070-B1iKSP90,NCP9#,SCP90..B,F,RS,U,X200501-201012

DK.GRAY,TRIM1#

main69205-52070-E0iKSP90,NCP9#,SCP90..B,F,U200508-201012

GREGE,TRIM4#

main69205-52120-B5iNCP91,SCP90..RS200708-201012

DK.GRAY,TRIM1#

main69205-52130-E0iKSP90,NCP95,SCP90..ILL200512-201012

GREGE,TRIM4#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-52110-B1iKSP90,NCP9#,SCP90..B,F,U200501-201012

DK.GRAY,TRIM1#

main69206-52110-E0iKSP90,NCP9#,SCP90..B,F,U,X200508-201012

GREGE,TRIM4#

main69206-52120-B5iNCP91,SCP90..CVFC..RS200708-201012

DK.GRAY,TRIM1#

main69206-52130-E0iNCP9#,SCP90..ILL200512-201012

GREGE,TRIM4#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-42070-03iKSP90,NCP9#,SCP90..F,ILL,U200708-201012

WHITE PEARL CS.,070

sub69227-42070

main69227-42070-50iKSP90,NCP95,SCP90..F200808-201012

SILKY GOLD M.M.,5A7

sub69227-42070

main69227-42070-A3iKSP90,NCP9#,SCP90..ATM..(B,F,RS,U)200808-201012

SUPER WHITE 2,040 ,068

sub69227-42070

main69227-42070-A3iNCP91..5F200712-201007

SUPER WHITE 2,068

sub69227-42070

main69227-42070-A8iKSP90,NCP9#,SCP90..B,F,RS,U,X200501-200712

WHITE,068

sub69227-42070

main69227-42070-C2iNCP91..5F200501-201012

BLACK MC.,209

sub69227-42070

main69227-42070-E8iKSP90,NCP9#,SCP90..B,F,U,X200501-200512

PALE ORANGE MICA METALLIC,4S3

sub69227-42070

main69227-42070-E9iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200708

BEIGE PM.,4S8

sub69227-42070

main69227-42070-F9iKSP90,NCP9#,SCP90..F,U200808-201008

YELLOW,5A6

sub69227-42070

main69227-42070-G0iNCP9#,SCP90..ILL200512-200807

DK.GREEN M.M.,6S3

sub69227-42070

main69227-42070-G6iKSP90,NCP9#,SCP90200501-200512

GREEN M.M.,6U1

sub69227-42070

main69227-42070-H4iKSP90,NCP9#,SCP90..F,U200708-201008

TURQUOISE ME.,777

sub69227-42070

main69227-42070-H8iKSP90,NCP95,SCP90..F200902-201007

FROSTY GREEN MC.,781

sub69227-42070

main69227-42070-J2iKSP90,NCP9#,SCP90..B,F,U,X200501-200712

DK.BLUE M.M.,8P4

sub69227-42070

main69227-42070-K1iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200609

REDDISH PURPLE M.M.,9AC

sub69227-42070

main69227-42070-K4iKSP90,NCP9#,SCP90..B,F,U200708-201011

LT.PURPLE M.M.,9AE

sub69227-42070

main69227-42070-L4iKSP90,NCP9#,SCP90..F,U200708-200803

COPPER ME.,4T4

sub69227-42070

main69227-42070-P0iKSP90,NCP9#,SCP90..B,F,U,X200501-201008

SILVER M.M.,1E7

sub69227-42070

main69227-42070-P3iKSP90,NCP9#,SCP90..F,ILL,RS,U200501-201012

MEDIUM SILVER ME.,1F8

sub69227-42070

main69227-42070-P5iNCP91,SCP90..CVFC..RS200809-201012

GRAY ME.,1G3

sub69227-42070

main69227-42070-P6iKSP90,NCP9#,SCP90..B,F,U201008-201012

SILVER ME.,1F7

sub69227-42070

main69227-42070-P7iNCP91,SCP90..RS200611-200809

DK.GRAY M.M.,1F6

sub69227-42070

main69227-42070-Q3iKSP90,NCP9#,SCP90..B,F,U,X200512-200708

LT.GREEN ME.,6U0

sub69227-42070

main69227-42070-R4iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

LT. BLUE M.M.,8S9

sub69227-42070

main69227-42070-R5iKSP90,NCP9#,SCP90..F,RS,U,X200501-201012

BLUE M.M.,8T0

sub69227-42070

main69227-42070-R6iKSP90,NCP95,SCP90..ILL200512-201012

GRAYISH BLUE M.M.,8T1

sub69227-42070

main69227-42070-R8iKSP90,NCP9#,SCP90..B,F,U200712-201008

DK.BLUE MC.,8P4

sub69227-42070

main69227-42070-X0iNCP91..5F200501-201012

SUPER RED 5,3P0

sub69227-42070

main69227-42070-X1iKSP90,NCP95,SCP90..B,F200508-201012

ROSE ME.OP.,3P3

sub69227-42070

main69227-42070-X6iKSP90,NCP9#,SCP90..B,F,ILL200512-201011

DARK RED MC.,3Q8

sub69227-42070

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-42070-03iKSP90,NCP9#,SCP90..F,ILL,U200708-201012

WHITE PEARL CS.,070

sub69227-42070

main69227-42070-50iKSP90,NCP95,SCP90..F200808-201012

SILKY GOLD M.M.,5A7

sub69227-42070

main69227-42070-A3iKSP90,NCP9#,SCP90..B,F,RS,U200712-201007

SUPER WHITE 2,068

sub69227-42070

main69227-42070-A3iKSP90,NCP9#,SCP90..ATM..(B,F,RS,U)200808-201012

SUPER WHITE 2,040 ,068

sub69227-42070

main69227-42070-A8iKSP90,NCP9#,SCP90..B,F,RS,U,X200501-200712

WHITE,068

sub69227-42070

main69227-42070-C2iNCP91..5F200501-201012

BLACK MC.,209

sub69227-42070

main69227-42070-E8iKSP90,NCP9#,SCP90..B,F,U,X200501-200512

PALE ORANGE MICA METALLIC,4S3

sub69227-42070

main69227-42070-E9iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200708

BEIGE PM.,4S8

sub69227-42070

main69227-42070-F9iKSP90,NCP9#,SCP90..F,U200808-201008

YELLOW,5A6

sub69227-42070

main69227-42070-G0iKSP90,NCP95,SCP90..ILL200512-200807

DK.GREEN M.M.,6S3

sub69227-42070

main69227-42070-G6iKSP90,NCP9#,SCP90200501-200512

GREEN M.M.,6U1

sub69227-42070

main69227-42070-H4iKSP90,NCP9#,SCP90..F,U200708-201008

TURQUOISE ME.,777

sub69227-42070

main69227-42070-H8iKSP90,NCP95,SCP90..F200902-201007

FROSTY GREEN MC.,781

sub69227-42070

main69227-42070-J2iKSP90,NCP9#,SCP90..B,F,U,X200501-200712

DK.BLUE M.M.,8P4

sub69227-42070

main69227-42070-K1iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200609

REDDISH PURPLE M.M.,9AC

sub69227-42070

main69227-42070-K4iKSP90,NCP9#,SCP90..B,F,U200708-201011

LT.PURPLE M.M.,9AE

sub69227-42070

main69227-42070-L4iKSP90,NCP9#,SCP90..F,U200708-200803

COPPER ME.,4T4

sub69227-42070

main69227-42070-P0iKSP90,NCP9#,SCP90..B,F,U,X200501-201008

SILVER M.M.,1E7

sub69227-42070

main69227-42070-P3iKSP90,NCP9#,SCP90..ATM..(F,ILL,RS,U)200501-201012

MEDIUM SILVER ME.,1F8

sub69227-42070

main69227-42070-P5iNCP91,SCP90..CVFC..RS200809-201012

GRAY ME.,1G3

sub69227-42070

main69227-42070-P6iKSP90,NCP9#,SCP90..B,F,U201008-201012

SILVER ME.,1F7

sub69227-42070

main69227-42070-P7iNCP91..RS200611-200809

DK.GRAY M.M.,1F6

sub69227-42070

main69227-42070-Q3iKSP90,NCP9#,SCP90..B,F,U,X200512-200708

LT.GREEN ME.,6U0

sub69227-42070

main69227-42070-R4iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

LT. BLUE M.M.,8S9

sub69227-42070

main69227-42070-R5iKSP90,NCP9#,SCP90..F,RS,U200501-201012

BLUE M.M.,8T0

sub69227-42070

main69227-42070-R6iKSP90,NCP95,SCP90..ILL200512-201012

GRAYISH BLUE M.M.,8T1

sub69227-42070

main69227-42070-R8iKSP90,NCP9#,SCP90..B,F,U200712-201008

DK.BLUE MC.,8P4

sub69227-42070

main69227-42070-X0iKSP90,NCP9#,SCP90..F,RS,U200501-201012

SUPER RED 5,3P0

sub69227-42070

main69227-42070-X1iKSP90,NCP9#,SCP90..B,F,U,X200508-201012

ROSE ME.OP.,3P3

sub69227-42070

main69227-42070-X6iKSP90,NCP95,SCP90..ILL200512-201011

DARK RED MC.,3Q8

sub69227-42070

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-12220-03iKSP90,NCP9#,SCP90..F,ILL,U200708-201012

WHITE PEARL CS.,070

sub69211-12220

sub69211-52090

main69211-12220-50iKSP90,NCP95,SCP90..F200808-201012

SILKY GOLD M.M.,5A7

sub69211-12220

sub69211-52090

main69211-12220-A0iNCP91..5F200712-201007

SUPER WHITE 2,068

sub69211-12220

sub69211-52090

main69211-12220-A0iKSP90,NCP9#,SCP90..ATM..(B,F,RS,U)200808-201012

SUPER WHITE 2,040 ,068

sub69211-12220

sub69211-52090

main69211-12220-A8iKSP90,NCP9#,SCP90..B,F,RS,U200501-200712

WHITE,068

sub69211-12220

sub69211-52090

main69211-12220-C2iKSP90,NCP9#,SCP90..B,F,RS,U,X200501-201012

BLACK MC.,209

sub69211-12220

sub69211-52090

main69211-12220-E8iKSP90,NCP9#,SCP90..B,F,U,X200501-200512

PALE ORANGE MICA METALLIC,4S3

sub69211-12220

sub69211-52090

main69211-12220-E9iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200708

BEIGE PM.,4S8

sub69211-12220

sub69211-52090

main69211-12220-F9iKSP90,NCP9#,SCP90..F,U200808-201008

YELLOW,5A6

sub69211-12220

sub69211-52090

main69211-12220-G1iKSP90,NCP95,SCP90..ILL200512-200807

DK.GREEN M.M.,6S3

sub69211-12220

sub69211-52090

main69211-12220-G6iKSP90,NCP9#,SCP90200501-200512

GREEN M.M.,6U1

sub69211-12220

sub69211-52090

main69211-12220-H8iKSP90,NCP95,SCP90..F200902-201007

FROSTY GREEN MC.,781

sub69211-12220

sub69211-52090

main69211-12220-J0iKSP90,NCP9#,SCP90..B,F,U,X200501-200712

DK.BLUE M.M.,8P4

sub69211-12220

sub69211-52090

main69211-12220-K1iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200609

REDDISH PURPLE M.M.,9AC

sub69211-12220

sub69211-52090

main69211-12220-K4iKSP90,NCP9#,SCP90..B,F,U200708-201011

LT.PURPLE M.M.,9AE

sub69211-12220

sub69211-52090

main69211-12220-L4iKSP90,NCP9#,SCP90..F,U200708-200803

COPPER ME.,4T4

sub69211-12220

sub69211-52090

main69211-12220-P0iKSP90,NCP9#,SCP90..B,F,U200501-201008

SILVER M.M.,1E7

sub69211-12220

sub69211-52090

main69211-12220-P3iKSP90,NCP9#,SCP90200501-201012

MEDIUM SILVER ME.,1F8

sub69211-12220

sub69211-52090

main69211-12220-P5iNCP91..5F200809-201012

GRAY ME.,1G3

sub69211-12220

sub69211-52090

main69211-12220-P6iKSP90,NCP9#,SCP90..B,F,U201008-201012

SILVER ME.,1F7

sub69211-12220

sub69211-52090

main69211-12220-P7iNCP91..RS200701-200809

DK.GRAY M.M.,1F6

sub69211-12220

sub69211-52090

main69211-12220-Q3iKSP90,NCP9#,SCP90..B,F,U,X200512-200708

LT.GREEN ME.,6U0

sub69211-12220

sub69211-52090

main69211-12220-R4iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

LT. BLUE M.M.,8S9

sub69211-12220

sub69211-52090

main69211-12220-R5iKSP90,NCP9#,SCP90..F,RS,U200501-201012

BLUE M.M.,8T0

sub69211-12220

sub69211-52090

main69211-12220-R6iNCP9#,SCP90..ILL200512-201012

GRAYISH BLUE M.M.,8T1

sub69211-12220

sub69211-52090

main69211-12220-R8iKSP90,NCP9#,SCP90..B,F,U200712-201008

DK.BLUE MC.,8P4

sub69211-12220

sub69211-52090

main69211-12220-X0iNCP91..5F200501-201012

SUPER RED 5,3P0

sub69211-12220

sub69211-52090

main69211-12220-X1iKSP90,NCP95,SCP90..B,F200508-201012

ROSE ME.OP.,3P3

sub69211-12220

sub69211-52090

main69211-12220-X6iKSP90,NCP95,SCP90..ILL200512-201011

DARK RED MC.,3Q8

sub69211-12220

sub69211-52090

main69211-52090-H1iKSP90,NCP9#,SCP90..F,U200708-201008

TURQUOISE ME.,777

sub69211-52090

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-12220-03iKSP90,NCP9#,SCP90..F,ILL,U200708-201012

WHITE PEARL CS.,070

sub69211-12220

sub69211-52090

main69211-12220-50iKSP90,NCP95,SCP90..F200808-201012

SILKY GOLD M.M.,5A7

sub69211-12220

sub69211-52090

main69211-12220-A0iKSP90,NCP9#,SCP90..ATM..(B,F,RS,U)200808-201012

SUPER WHITE 2,040 ,068

sub69211-12220

sub69211-52090

main69211-12220-A0iKSP90,NCP9#,SCP90..B,F,RS,U200712-201007

SUPER WHITE 2,068

sub69211-12220

sub69211-52090

main69211-12220-A8iKSP90,NCP9#,SCP90..B,F,RS,U200501-200712

WHITE,068

sub69211-12220

sub69211-52090

main69211-12220-C2iKSP90,NCP9#,SCP90..ATM..(B,F,RS,U)200501-201012

BLACK MC.,209

sub69211-12220

sub69211-52090

main69211-12220-E8iKSP90,NCP9#,SCP90..B,F,U,X200501-200512

PALE ORANGE MICA METALLIC,4S3

sub69211-12220

sub69211-52090

main69211-12220-E9iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200708

BEIGE PM.,4S8

sub69211-12220

sub69211-52090

main69211-12220-F9iKSP90,NCP9#,SCP90..F,U200808-201008

YELLOW,5A6

sub69211-12220

sub69211-52090

main69211-12220-G1iKSP90,NCP95,SCP90..ILL200512-200807

DK.GREEN M.M.,6S3

sub69211-12220

sub69211-52090

main69211-12220-G6iKSP90,NCP9#,SCP90200501-200512

GREEN M.M.,6U1

sub69211-12220

sub69211-52090

main69211-12220-H8iKSP90,NCP95,SCP90..F200902-201007

FROSTY GREEN MC.,781

sub69211-12220

sub69211-52090

main69211-12220-J0iKSP90,NCP9#,SCP90..B,F,U,X200501-200712

DK.BLUE M.M.,8P4

sub69211-12220

sub69211-52090

main69211-12220-K1iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200609

REDDISH PURPLE M.M.,9AC

sub69211-12220

sub69211-52090

main69211-12220-K4iKSP90,NCP9#,SCP90..F,U200708-201011

LT.PURPLE M.M.,9AE

sub69211-12220

sub69211-52090

main69211-12220-L4iKSP90,NCP9#,SCP90..F,U200708-200803

COPPER ME.,4T4

sub69211-12220

sub69211-52090

main69211-12220-P0iKSP90,NCP9#,SCP90..B,F,U,X200501-201008

SILVER M.M.,1E7

sub69211-12220

sub69211-52090

main69211-12220-P3iNCP91..5F200501-201012

MEDIUM SILVER ME.,1F8

sub69211-12220

sub69211-52090

main69211-12220-P5iNCP91..5F200809-201012

GRAY ME.,1G3

sub69211-12220

sub69211-52090

main69211-12220-P6iKSP90,NCP9#,SCP90..B,F,U201008-201012

SILVER ME.,1F7

sub69211-12220

sub69211-52090

main69211-12220-P7iNCP91..RS200701-200809

DK.GRAY M.M.,1F6

sub69211-12220

sub69211-52090

main69211-12220-Q3iKSP90,NCP9#,SCP90..B,F,U,X200512-200708

LT.GREEN ME.,6U0

sub69211-12220

sub69211-52090

main69211-12220-R4iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

LT. BLUE M.M.,8S9

sub69211-12220

sub69211-52090

main69211-12220-R5iNCP91..5F200501-201012

BLUE M.M.,8T0

sub69211-12220

sub69211-52090

main69211-12220-R6iKSP90,NCP95,SCP90..ILL200512-201012

GRAYISH BLUE M.M.,8T1

sub69211-12220

sub69211-52090

main69211-12220-R8iKSP90,NCP9#,SCP90..B,F,U200712-201008

DK.BLUE MC.,8P4

sub69211-12220

sub69211-52090

main69211-12220-X0iKSP90,NCP9#,SCP90..F,RS,U200501-201012

SUPER RED 5,3P0

sub69211-12220

sub69211-52090

main69211-12220-X1iKSP90,NCP9#,SCP90..B,F,U,X200508-201012

ROSE ME.OP.,3P3

sub69211-12220

sub69211-52090

main69211-12220-X6iNCP9#,SCP90..ILL200512-201011

DARK RED MC.,3Q8

sub69211-12220

sub69211-52090

main69211-52090-H1iKSP90,NCP9#,SCP90..F,U200708-201008

TURQUOISE ME.,777

sub69211-52090

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-48020iKSP90,NCP9#,SCP90200501-201012

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-42010iKSP90,NCP9#,SCP90200501-200610

main69242-52020iKSP90,NCP9#,SCP90200611-201012

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-47010iKSP90,NCP9#,SCP90200501-201012

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-33010iKSP90,NCP9#,SCP90200501-201012

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-52110iKSP90,NCP9#,SCP90200501-200701

sub69730-52150

main69730-52150iKSP90,NCP9#,SCP90200702-201012

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-52110iKSP90,NCP9#,SCP90200501-200701

sub69730-52150

main69730-52150iKSP90,NCP9#,SCP90200702-201012

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-52030iKSP90,NCP9#,SCP90200501-201012

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-52030iKSP90,NCP9#,SCP90200501-201012

6929648010SCREW, DOOR INSIDE HANDLE

main69296-48010

9014850003

main90148-50003

9014860022

main90148-60022

9014880066

main90148-80066

9018905003

main90189-05003

9018905174

main90189-05174

9054104027

main90541-04027

9356855016

main93568-55016

27 parts on this diagram · 1 diagram in section
