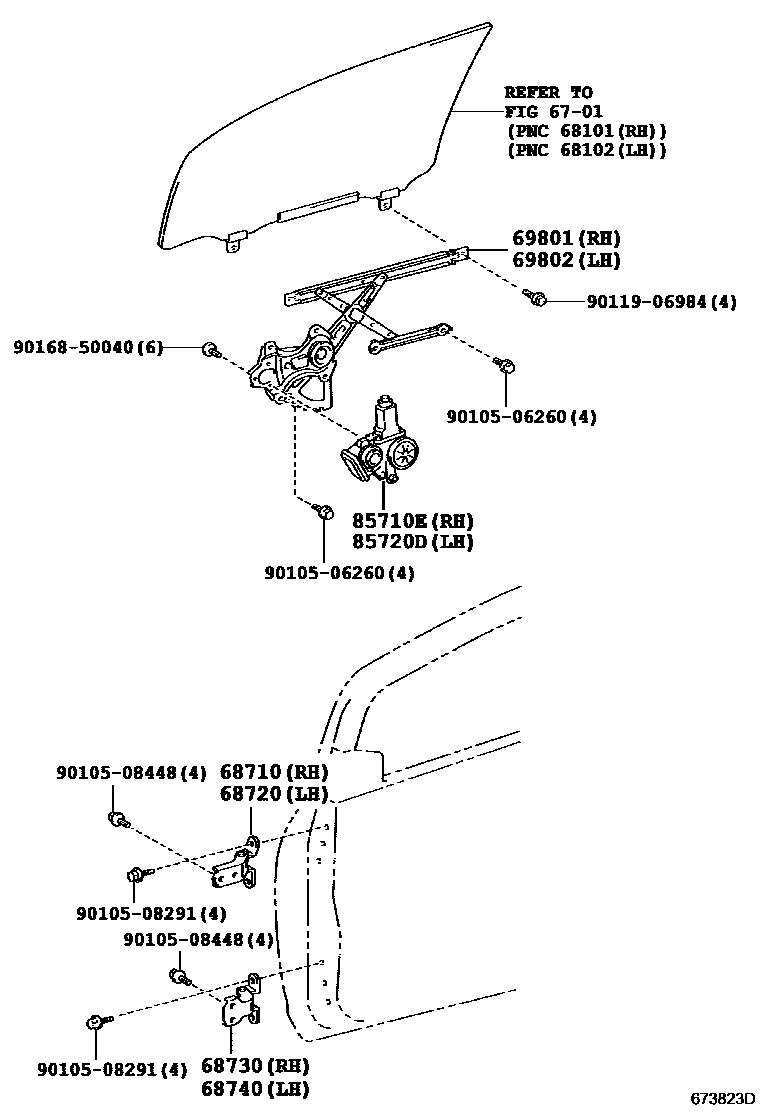

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12150iKSP90,NCP9#,SCP90200501-200609

main68710-12151iKSP90,NCP9#,SCP90200610-201012

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12150iKSP90,NCP9#,SCP90200501-200609

main68720-12151iKSP90,NCP9#,SCP90200610-201012

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-33020iKSP90,NCP9#,SCP90200501-200609

main68730-33021iKSP90,NCP9#,SCP90200610-201012

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-33020iKSP90,NCP9#,SCP90200501-200609

sub68740-33021

main68740-33021iKSP90,NCP9#,SCP90200610-201012

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-52120iKSP90,NCP9#,SCP90200501-201012

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-52110iKSP90,NCP9#,SCP90200501-201012

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-52140iKSP90,NCP9#,SCP90200501-201012

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-35140iKSP90,NCP9#,SCP90200501-201012

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9011906984

main90119-06984

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
