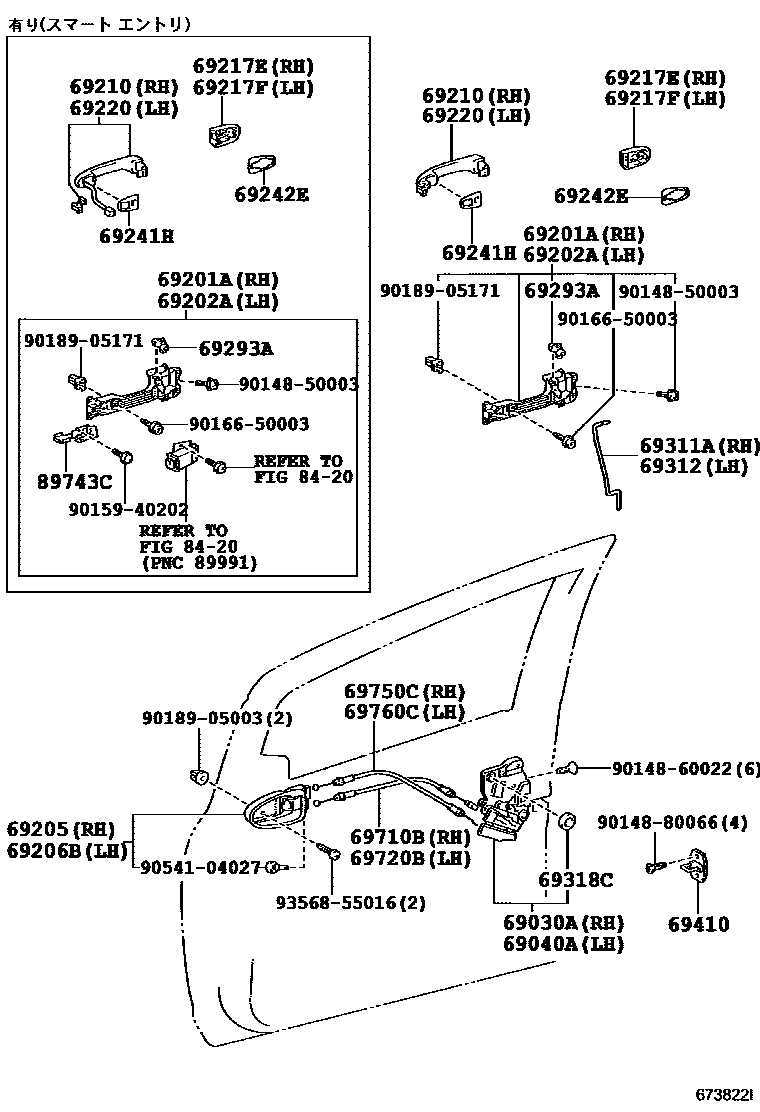

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-52290iKSP90,NCP9#,SCP90200501-201012

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-47090iNCP9#,SCP90..ILL,U200808-201012

main69040-47090iKSP90,NCP9#,SCP90..F,ILL,RS,X200501-200708

main69040-47090iKSP90,NCP9#,SCP90..ILL,U200708-200808

main69040-52360iKSP90..U200501-201012

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-52040iKSP90,NCP9#,SCP90..B,F,RS200501-201012

main69201-52060iNCP9#,SCP90..ILL,U200808-201012

main69201-52060iNCP95,SCP90..U200501-200708

main69201-52060iKSP90,NCP9#,SCP90..ILL,U200708-200808

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-52020iKSP90,NCP9#,SCP90..B,F,RS200501-201012

main69202-52040iNCP9#,SCP90..ATM..(F,RS)200808-201012

main69202-52040iNCP95,SCP90..U200501-200708

main69202-52040iKSP90,NCP9#,SCP90..ILL,U200708-200808

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-52070-B1iKSP90,NCP9#,SCP90..B,F,RS,U,X200501-201012

DK.GRAY,TRIM1#

main69205-52070-E0iKSP90,NCP9#,SCP90..B,F,U,X200508-201012

GREGE,TRIM4#

main69205-52120-B5iNCP91,SCP90..CVFC..RS200708-201012

DK.GRAY,TRIM1#

main69205-52130-E0iNCP9#,SCP90..ILL200512-201012

GREGE,TRIM4#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-52110-B1iKSP90,NCP9#,SCP90..B,F,RS,U,X200501-201012

DK.GRAY,TRIM1#

main69206-52110-E0iKSP90,NCP9#,SCP90..B,F,U200508-201012

GREGE,TRIM4#

main69206-52120-B5iNCP91,SCP90..RS200708-201012

DK.GRAY,TRIM1#

main69206-52130-E0iKSP90,NCP95,SCP90..ILL200512-201012

GREGE,TRIM4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-12320-A0iKSP90..F200808-201007

sub69210-12320

main69210-12320-A0iKSP90..F200712-201007

SUPER WHITE 2,068

sub69210-12320

main69210-12320-A0iNCP9#,SCP90..ATM..(F,RS)200808-201012

sub69210-12320

main69210-12320-A0iNCP9#,SCP90..ATM..(F,RS)200808-201012

SUPER WHITE 2,040 ,068

sub69210-12320

main69210-12320-A2iKSP90,NCP9#,SCP90..F,RS200708-200712

sub69210-12320

main69210-12320-A2iNCP95,SCP90..U200501-200712

WHITE,068

sub69210-12320

main69210-12320-A2iNCP95,SCP90..U200501-200708

sub69210-12320

main69210-12320-A5iNCP9#,SCP90..ILL,U200708-201012

WHITE PEARL CS.,070

sub69210-12320

main69210-12320-A5iNCP9#,SCP90..ILL,U200808-201012

sub69210-12320

main69210-12320-A5iKSP90,NCP9#,SCP90..ILL,U200708-200808

sub69210-12320

main69210-12320-B1iNCP9#,SCP90..U200808-201008

sub69210-12320

main69210-12320-B1iKSP90..F200501-201008

SILVER M.M.,1E7

sub69210-12320

main69210-12320-B1iNCP95,SCP90..U200501-200708

sub69210-12320

main69210-12320-B1iKSP90,NCP95,SCP90..F200708-200808

sub69210-12320

main69210-12320-B2iKSP90..U200501-201012

MEDIUM SILVER ME.,1F8

sub69210-12320

main69210-12320-B2iNCP9#,SCP90..F,RS200808-201012

sub69210-12320

main69210-12320-B2iNCP95..ILL;KSP90,NCP91,SCP90..F,ILL,RS,X200501-200708

sub69210-12320

main69210-12320-B7iNCP95,SCP90..F201008-201012

sub69210-12320

main69210-12320-B7iNCP9#,SCP90..U201008-201012

SILVER ME.,1F7

sub69210-12320

main69210-12320-C0iNCP9#,SCP90..F,RS200501-201012

BLACK MC.,209

sub69210-12320

main69210-12320-C0iNCP9#,SCP90..U200808-201012

sub69210-12320

main69210-12320-C0iNCP95,SCP90..U200501-200708

sub69210-12320

main69210-12320-D2iNCP9#,SCP90..F,RS200501-201012

SUPER RED 5,3P0

sub69210-12320

main69210-12320-D2iNCP9#,SCP90..F,RS200808-201012

sub69210-12320

main69210-12320-D2iNCP95,SCP90..U200501-200708

sub69210-12320

main69210-12320-D4iNCP95,SCP90..U200508-200708

ROSE ME.OP.,3P3

sub69210-12320

main69210-12320-D4iNCP95,SCP90..U200508-200708

sub69210-12320

main69210-12320-D8iNCP9#,SCP90..ILL200708-201011

DARK RED MC.,3Q8

sub69210-12320

main69210-12320-D8iNCP9#,SCP90..ILL200808-201011

sub69210-12320

main69210-12320-E0iKSP90,NCP9#,SCP90..F,X200501-200512

sub69210-12320

main69210-12320-E0iNCP95,SCP90..U200501-200512

PALE ORANGE MICA METALLIC,4S3

sub69210-12320

main69210-12320-E1iKSP90,NCP9#,SCP90..F,ILL,X200501-200708

sub69210-12320

main69210-12320-E1iNCP95,SCP90..U200501-200708

BEIGE PM.,4S8

sub69210-12320

main69210-12320-E7iKSP90,NCP9#,SCP90..U200708-200803

sub69210-12320

main69210-12320-E7iKSP90,NCP9#,SCP90..U200708-200803

COPPER ME.,4T4

sub69210-12320

main69210-12320-F2iNCP9#,SCP90..U200808-201008

sub69210-12320

main69210-12320-F2iNCP95,SCP90..F200808-201008

YELLOW,5A6

sub69210-12320

main69210-12320-G0iNCP9#,SCP90..ILL200708-200807

DK.GREEN M.M.,6S3

sub69210-12320

main69210-12320-G1iKSP90,NCP9#,SCP90..F,RS,X200501-200512

sub69210-12320

main69210-12320-G1iNCP95,SCP90..U200501-200512

GREEN M.M.,6U1

sub69210-12320

main69210-12320-G8iKSP90,NCP9#,SCP90..F,X200512-200708

LT.GREEN ME.,6U0

sub69210-12320

main69210-12320-G8iKSP90,NCP9#,SCP90..F,X200512-200708

sub69210-12320

main69210-12320-H1iNCP9#,SCP90..U200708-201008

TURQUOISE ME.,777

sub69210-12320

main69210-12320-H1iKSP90..U200808-201008

sub69210-12320

main69210-12320-H1iKSP90,NCP95,SCP90..F200708-200808

sub69210-12320

main69210-12320-J1iKSP90,NCP9#,SCP90..F,X200501-200708

sub69210-12320

main69210-12320-J1iKSP90,NCP9#,SCP90..F,X200501-200712

DK.BLUE M.M.,8P4

sub69210-12320

main69210-12320-J1iKSP90,NCP95,SCP90..F200708-200712

sub69210-12320

main69210-12320-J3iKSP90,NCP9#,SCP90..F,X200501-200708

LT. BLUE M.M.,8S9

sub69210-12320

main69210-12320-J3iNCP95,SCP90..U200501-200708

sub69210-12320

main69210-12320-J4iNCP95..F200501-201012

BLUE M.M.,8T0

sub69210-12320

main69210-12320-J4iNCP95..F200501-200708

sub69210-12320

main69210-12320-J4iNCP9#,SCP90..U200808-201012

sub69210-12320

main69210-12320-J5iNCP9#,SCP90..ILL200708-201012

GRAYISH BLUE M.M.,8T1

sub69210-12320

main69210-12320-J8iKSP90,NCP95,SCP90..F200712-200908

DK.BLUE MC.,8P4

sub69210-12320

main69210-12320-J8iKSP90,NCP9#,SCP90..U200808-200908

sub69210-12320

main69210-12320-J8iKSP90,NCP95,SCP90..F200712-200808

sub69210-12320

main69210-12320-K0iKSP90,NCP9#,SCP90..F,ILL,X200501-200609

sub69210-12320

main69210-12320-K0iKSP90,NCP9#,SCP90..F,ILL,X200501-200609

REDDISH PURPLE M.M.,9AC

sub69210-12320

main69210-12320-K3iKSP90..U200708-201011

LT.PURPLE M.M.,9AE

sub69210-12320

main69210-12320-K3iKSP90..U200808-201011

sub69210-12320

main69210-12320-K3iKSP90,NCP95,SCP90..F200708-200808

sub69210-12320

main69211-12220-03iKSP90..U200708-201012

WHITE PEARL CS.,070

sub69211-12220

sub69211-52090

main69211-12220-50iKSP90,NCP95,SCP90..F200808-201012

SILKY GOLD M.M.,5A7

sub69211-12220

sub69211-52090

main69211-12220-A0iKSP90..U200808-201012

SUPER WHITE 2,040 ,068

sub69211-12220

sub69211-52090

main69211-12220-A0iKSP90,NCP9#,SCP90..B,F,RS200712-201007

SUPER WHITE 2,068

sub69211-12220

sub69211-52090

main69211-12220-A8iKSP90,NCP9#,SCP90..B,F,RS200501-200712

WHITE,068

sub69211-12220

sub69211-52090

main69211-12220-C2iKSP90,NCP9#,SCP90..ATM..(B,F,RS)200501-201012

BLACK MC.,209

sub69211-12220

sub69211-52090

main69211-12220-E8iKSP90,NCP9#,SCP90..B,F,X200501-200512

PALE ORANGE MICA METALLIC,4S3

sub69211-12220

sub69211-52090

main69211-12220-E9iKSP90,NCP9#,SCP90..B,F,ILL,X200501-200708

BEIGE PM.,4S8

sub69211-12220

sub69211-52090

main69211-12220-F9iKSP90..U200808-201008

YELLOW,5A6

sub69211-12220

sub69211-52090

main69211-12220-G1iKSP90,NCP95,SCP90..ILL200512-200708

DK.GREEN M.M.,6S3

sub69211-12220

sub69211-52090

main69211-12220-G6iKSP90,NCP9#,SCP90..B,F,RS,X200501-200512

GREEN M.M.,6U1

sub69211-12220

sub69211-52090

main69211-12220-H8iKSP90,NCP95,SCP90..F200902-201007

FROSTY GREEN MC.,781

sub69211-12220

sub69211-52090

main69211-12220-J0iKSP90,NCP95,SCP90..B,F200501-200712

DK.BLUE M.M.,8P4

sub69211-12220

sub69211-52090

main69211-12220-K1iKSP90,NCP9#,SCP90..B,F,ILL,X200501-200609

REDDISH PURPLE M.M.,9AC

sub69211-12220

sub69211-52090

main69211-12220-K4iKSP90,NCP95,SCP90..B,F200708-201011

LT.PURPLE M.M.,9AE

sub69211-12220

sub69211-52090

main69211-12220-L4iKSP90,NCP95,SCP90..F200708-200803

COPPER ME.,4T4

sub69211-12220

sub69211-52090

main69211-12220-P0iKSP90,NCP9#,SCP90..B,F,X200501-201008

SILVER M.M.,1E7

sub69211-12220

sub69211-52090

main69211-12220-P3iKSP90,NCP9#,SCP90..F,RS200501-201012

MEDIUM SILVER ME.,1F8

sub69211-12220

sub69211-52090

main69211-12220-P5iNCP91..5F200809-201012

GRAY ME.,1G3

sub69211-12220

sub69211-52090

main69211-12220-P6iKSP90;NCP95,SCP90..F201008-201012

SILVER ME.,1F7

sub69211-12220

sub69211-52090

main69211-12220-P7iNCP91..RS200611-200809

DK.GRAY M.M.,1F6

sub69211-12220

sub69211-52090

main69211-12220-Q3iKSP90,NCP9#,SCP90..B,F,X200512-200708

LT.GREEN ME.,6U0

sub69211-12220

sub69211-52090

main69211-12220-R4iKSP90,NCP9#,SCP90..B,F,X200501-200708

LT. BLUE M.M.,8S9

sub69211-12220

sub69211-52090

main69211-12220-R5iKSP90,NCP9#,SCP90..F,RS,X200501-201012

BLUE M.M.,8T0

sub69211-12220

sub69211-52090

main69211-12220-R6iKSP90,NCP95,SCP90..ILL200512-200708

GRAYISH BLUE M.M.,8T1

sub69211-12220

sub69211-52090

main69211-12220-R8iKSP90,NCP95,SCP90..B,F200712-201008

DK.BLUE MC.,8P4

sub69211-12220

sub69211-52090

main69211-12220-X0iKSP90,NCP9#,SCP90..B,F,RS,X200501-201012

SUPER RED 5,3P0

sub69211-12220

sub69211-52090

main69211-12220-X1iKSP90,NCP9#,SCP90..B,F,X200508-201012

ROSE ME.OP.,3P3

sub69211-12220

sub69211-52090

main69211-12220-X6iKSP90..B,F200512-201011

DARK RED MC.,3Q8

sub69211-12220

sub69211-52090

main69211-52090-H1iKSP90,NCP95,SCP90..F200708-201008

TURQUOISE ME.,777

sub69211-52090

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-42020-04iKSP90,NCP9#,SCP90..F,ILL,U200708-201012

WHITE PEARL CS.,070

sub69217-42020

sub69217-42010

main69217-42020-04iKSP90,NCP9#,SCP90..F,ILL,U200708-200808

sub69217-42020

sub69217-42010

main69217-42020-50iKSP90,NCP9#,SCP90..F,U200808-201008

YELLOW,5A6

sub69217-42020

sub69217-42010

main69217-42020-51iKSP90,NCP95,SCP90..F200808-201012

SILKY GOLD M.M.,5A7

sub69217-42020

sub69217-42010

main69217-42020-A3iKSP90..U;NCP91..5F200808-201007

sub69217-42020

sub69217-42010

main69217-42020-A3iKSP90..U200808-201012

SUPER WHITE 2,040 ,068

sub69217-42020

sub69217-42010

main69217-42020-A3iKSP90..F200712-201007

SUPER WHITE 2,068

sub69217-42020

sub69217-42010

main69217-42020-A9iKSP90,NCP95,SCP90..F200708-200712

sub69217-42020

sub69217-42010

main69217-42020-A9iKSP90,NCP9#,SCP90..B,F,RS,U,X200501-200712

WHITE,068

sub69217-42020

sub69217-42010

main69217-42020-C2iNCP91..5F200501-201012

BLACK MC.,209

sub69217-42020

sub69217-42010

main69217-42020-C2iKSP90,NCP9#,SCP90..F,RS200708-200809

sub69217-42020

sub69217-42010

main69217-42020-G0iNCP9#,SCP90..ILL200512-200807

DK.GREEN M.M.,6S3

sub69217-42020

sub69217-42010

main69217-42020-G7iKSP90,NCP9#,SCP90200501-200512

GREEN M.M.,6U1

sub69217-42020

sub69217-42010

main69217-42020-H4iKSP90,NCP95,SCP90..F200708-201008

TURQUOISE ME.,777

sub69217-42020

sub69217-42010

main69217-42020-H4iKSP90,NCP9#,SCP90..F,U200708-200808

sub69217-42020

sub69217-42010

main69217-42020-H8iKSP90,NCP95,SCP90..F200902-201007

FROSTY GREEN MC.,781

sub69217-42020

sub69217-42010

main69217-42020-J2iKSP90,NCP95,SCP90..F200708-200712

sub69217-42020

sub69217-42010

main69217-42020-J2iKSP90,NCP95,SCP90..F200501-200712

DK.BLUE M.M.,8P4

sub69217-42020

sub69217-42010

main69217-42020-K1iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200609

REDDISH PURPLE M.M.,9AC

sub69217-42020

sub69217-42010

main69217-42020-K4iKSP90,NCP9#,SCP90..B,F,U200708-201011

LT.PURPLE M.M.,9AE

sub69217-42020

sub69217-42010

main69217-42020-K4iKSP90,NCP95,SCP90..F200708-200808

sub69217-42020

sub69217-42010

main69217-42020-L0iKSP90,NCP9#,SCP90..B,F,U,X200501-200512

PALE ORANGE MICA METALLIC,4S3

sub69217-42020

sub69217-42010

main69217-42020-L1iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200708

BEIGE PM.,4S8

sub69217-42020

sub69217-42010

main69217-42020-L6iKSP90,NCP9#,SCP90..F,U200708-200803

COPPER ME.,4T4

sub69217-42020

sub69217-42010

main69217-42020-P0iKSP90,NCP9#,SCP90..B,F,U200708-200808

sub69217-42020

sub69217-42010

main69217-42020-P0iKSP90,NCP95,SCP90..F200501-201008

SILVER M.M.,1E7

sub69217-42020

sub69217-42010

main69217-42020-P3iKSP90,NCP9#,SCP90..F,ILL,RS,U200501-201012

MEDIUM SILVER ME.,1F8

sub69217-42020

sub69217-42010

main69217-42020-P3iKSP90,NCP9#,SCP90..F,RS200708-200809

sub69217-42020

sub69217-42010

main69217-42020-P5iNCP91..5F200809-201012

GRAY ME.,1G3

sub69217-42020

sub69217-42010

main69217-42020-P6iKSP90,NCP9#,SCP90..B,F,U201008-201012

SILVER ME.,1F7

sub69217-42020

sub69217-42010

main69217-42020-P7iNCP91,SCP90..RS200611-200809

DK.GRAY M.M.,1F6

sub69217-42020

sub69217-42010

main69217-42020-P7iNCP91,SCP90..RS200708-200809

sub69217-42020

sub69217-42010

main69217-42020-Q3iKSP90,NCP9#,SCP90..B,F,U,X200512-200708

LT.GREEN ME.,6U0

sub69217-42020

sub69217-42010

main69217-42020-R5iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

LT. BLUE M.M.,8S9

sub69217-42020

sub69217-42010

main69217-42020-R6iKSP90,NCP9#,SCP90..F,RS,U,X200501-201012

BLUE M.M.,8T0

sub69217-42020

sub69217-42010

main69217-42020-R6iKSP90,NCP9#,SCP90..F,RS,U200708-200809

sub69217-42020

sub69217-42010

main69217-42020-R7iKSP90,NCP95,SCP90..ILL200512-201012

GRAYISH BLUE M.M.,8T1

sub69217-42020

sub69217-42010

main69217-42020-R9iKSP90,NCP9#,SCP90..U200712-201008

DK.BLUE MC.,8P4

sub69217-42020

sub69217-42010

main69217-42020-R9iKSP90,NCP9#,SCP90..B,F,U200712-200808

sub69217-42020

sub69217-42010

main69217-42020-X0iKSP90,NCP9#,SCP90..F,RS,U200708-200809

sub69217-42020

sub69217-42010

main69217-42020-X0iKSP90,NCP9#,SCP90..F,RS,U200501-201012

SUPER RED 5,3P0

sub69217-42020

sub69217-42010

main69217-42020-X1iKSP90,NCP9#,SCP90..B,F,U,X200508-201012

ROSE ME.OP.,3P3

sub69217-42020

sub69217-42010

main69217-42020-X6iNCP95,SCP90..ILL;KSP90,NCP91..B,F,ILL200512-201011

DARK RED MC.,3Q8

sub69217-42020

sub69217-42010

main69217-42020-X6iNCP95,SCP90..ILL;KSP90,NCP91..B,F,ILL200808-201011

sub69217-42020

sub69217-42010

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-12040-A0iKSP90,NCP9#,SCP90..U200712-201007

SUPER WHITE 2,068

sub69217-12040

main69217-12040-A0iNCP9#,SCP90..ATM..(F,RS)200808-201012

sub69217-12040

main69217-12040-A0iNCP9#,SCP90..ATM..(F,RS)200808-201012

SUPER WHITE 2,040 ,068

sub69217-12040

main69217-12040-A0iKSP90..F;NCP91..5F200808-201007

sub69217-12040

main69217-12040-A3iNCP95,SCP90..U200501-200712

WHITE,068

sub69217-12040

main69217-12040-A3iKSP90,NCP9#,SCP90..F,RS200708-200712

sub69217-12040

main69217-12040-A3iNCP95,SCP90..U200501-200708

sub69217-12040

main69217-12040-A9iNCP95,SCP90..F200708-201012

WHITE PEARL CS.,070

sub69217-12040

main69217-12040-A9iKSP90,NCP9#,SCP90..ILL,U200708-200808

sub69217-12040

main69217-12040-A9iKSP90..U200808-201012

sub69217-12040

main69217-12040-B4iNCP95,SCP90..F200808-201008

sub69217-12040

main69217-12040-B4iKSP90,NCP95,SCP90..F200708-200808

sub69217-12040

main69217-12040-B4iKSP90,NCP95,SCP90..F200501-201008

SILVER M.M.,1E7

sub69217-12040

main69217-12040-B4iKSP90,NCP9#,SCP90..F,X200501-200708

sub69217-12040

main69217-12040-B7iNCP95,SCP90..U200501-201012

MEDIUM SILVER ME.,1F8

sub69217-12040

main69217-12040-B7iKSP90..F;NCP91..5F200808-201012

sub69217-12040

main69217-12040-B7iKSP90,NCP9#,SCP90..F,ILL,RS,X200501-200708

sub69217-12040

main69217-12040-C2iKSP90,NCP9#,SCP90..F,RS,X200501-201012

BLACK MC.,209

sub69217-12040

main69217-12040-C2iKSP90,NCP9#,SCP90..F,RS,X200501-200708

sub69217-12040

main69217-12040-C2iKSP90..F;NCP91..5F200808-201012

sub69217-12040

main69217-12040-D5iKSP90..U200808-201012

sub69217-12040

main69217-12040-D5iKSP90..F;NCP91..5F200501-201012

SUPER RED 5,3P0

sub69217-12040

main69217-12040-D5iKSP90,NCP9#,SCP90..F,RS,X200501-200708

sub69217-12040

main69217-12040-D6iNCP95,SCP90..U200508-200708

ROSE ME.OP.,3P3

sub69217-12040

main69217-12040-D6iKSP90,NCP9#,SCP90..F,X200508-200708

sub69217-12040

main69217-12040-E4iNCP95,SCP90..U200501-200512

PALE ORANGE MICA METALLIC,4S3

sub69217-12040

main69217-12040-E4iKSP90,NCP9#,SCP90..F,X200501-200512

sub69217-12040

main69217-12040-E5iKSP90,NCP9#,SCP90..F,ILL,X200501-200708

BEIGE PM.,4S8

sub69217-12040

main69217-12040-E5iKSP90,NCP9#,SCP90..F,ILL,X200501-200708

sub69217-12040

main69217-12040-F6iKSP90..F200808-201008

YELLOW,5A6

sub69217-12040

main69217-12040-F6iNCP9#,SCP90..U200808-201008

sub69217-12040

main69217-12040-G3iNCP9#,SCP90..ILL200708-200807

DK.GREEN M.M.,6S3

sub69217-12040

main69217-12040-G4iNCP95,SCP90..U200501-200512

sub69217-12040

main69217-12040-G4iNCP95,SCP90..U200501-200512

GREEN M.M.,6U1

sub69217-12040

main69217-12040-H3iKSP90..F200708-201008

TURQUOISE ME.,777

sub69217-12040

main69217-12040-H3iKSP90,NCP9#,SCP90..U200708-200808

sub69217-12040

main69217-12040-H3iNCP95,SCP90..F200808-201008

sub69217-12040

main69217-12040-J0iKSP90,NCP9#,SCP90..F,X200501-200712

DK.BLUE M.M.,8P4

sub69217-12040

main69217-12040-J0iKSP90,NCP95,SCP90..F200708-200712

sub69217-12040

main69217-12040-J0iKSP90,NCP9#,SCP90..F,X200501-200708

sub69217-12040

main69217-12040-K1iKSP90,NCP9#,SCP90..F,ILL,X200501-200609

sub69217-12040

main69217-12040-K1iKSP90,NCP9#,SCP90..F,ILL,X200501-200609

REDDISH PURPLE M.M.,9AC

sub69217-12040

main69217-12040-K4iKSP90,NCP9#,SCP90..U200708-200808

sub69217-12040

main69217-12040-K4iKSP90,NCP9#,SCP90..U200708-201011

LT.PURPLE M.M.,9AE

sub69217-12040

main69217-12040-K4iKSP90..F200808-201011

sub69217-12040

main69217-12040-L0iKSP90,NCP95,SCP90..F200708-200803

COPPER ME.,4T4

sub69217-12040

main69217-12040-L0iKSP90,NCP95,SCP90..F200708-200803

sub69217-12040

main69217-12040-P1iNCP95,SCP90..F201008-201012

SILVER ME.,1F7

sub69217-12040

main69217-12040-P1iNCP95,SCP90..F201008-201012

sub69217-12040

main69217-12040-Q1iKSP90,NCP9#,SCP90..F,X200512-200708

sub69217-12040

main69217-12040-Q1iNCP95,SCP90..U200512-200708

LT.GREEN ME.,6U0

sub69217-12040

main69217-12040-R1iNCP95,SCP90..U200501-200708

LT. BLUE M.M.,8S9

sub69217-12040

main69217-12040-R1iNCP95,SCP90..U200501-200708

sub69217-12040

main69217-12040-R2iNCP95,SCP90..U200501-200708

sub69217-12040

main69217-12040-R2iNCP95,SCP90..U200501-201012

BLUE M.M.,8T0

sub69217-12040

main69217-12040-R2iKSP90..U200808-201012

sub69217-12040

main69217-12040-R3iNCP9#,SCP90..ILL200708-201012

GRAYISH BLUE M.M.,8T1

sub69217-12040

main69217-12040-R5iKSP90,NCP9#,SCP90..U200712-200908

DK.BLUE MC.,8P4

sub69217-12040

main69217-12040-R5iKSP90,NCP9#,SCP90..U200808-200908

sub69217-12040

main69217-12040-R5iKSP90,NCP95,SCP90..F200712-200808

sub69217-12040

main69217-12040-X1iNCP9#,SCP90..ILL200808-201011

sub69217-12040

main69217-12040-X1iNCP9#,SCP90..ILL200708-201011

DARK RED MC.,3Q8

sub69217-12040

main69217-42020-04iKSP90..U200708-201012

WHITE PEARL CS.,070

sub69217-42020

sub69217-42010

main69217-42020-50iKSP90..U200808-201008

YELLOW,5A6

sub69217-42020

sub69217-42010

main69217-42020-51iKSP90,NCP95,SCP90..F200808-201012

SILKY GOLD M.M.,5A7

sub69217-42020

sub69217-42010

main69217-42020-A3iKSP90..U200808-201012

SUPER WHITE 2,040 ,068

sub69217-42020

sub69217-42010

main69217-42020-A3iNCP91..5F200712-201007

SUPER WHITE 2,068

sub69217-42020

sub69217-42010

main69217-42020-A9iKSP90,NCP9#,SCP90..B,F,RS,X200501-200712

WHITE,068

sub69217-42020

sub69217-42010

main69217-42020-C2iKSP90,NCP9#,SCP90..B,F,RS,X200501-201012

BLACK MC.,209

sub69217-42020

sub69217-42010

main69217-42020-G0iKSP90,NCP95,SCP90..ILL200512-200708

DK.GREEN M.M.,6S3

sub69217-42020

sub69217-42010

main69217-42020-G7iKSP90,NCP9#,SCP90..B,F,RS,X200501-200512

GREEN M.M.,6U1

sub69217-42020

sub69217-42010

main69217-42020-H4iKSP90..U200708-201008

TURQUOISE ME.,777

sub69217-42020

sub69217-42010

main69217-42020-H8iKSP90,NCP95,SCP90..F200902-201007

FROSTY GREEN MC.,781

sub69217-42020

sub69217-42010

main69217-42020-J2iKSP90,NCP95,SCP90..B,F200501-200712

DK.BLUE M.M.,8P4

sub69217-42020

sub69217-42010

main69217-42020-K1iKSP90,NCP9#,SCP90..B,F,ILL,X200501-200609

REDDISH PURPLE M.M.,9AC

sub69217-42020

sub69217-42010

main69217-42020-K4iKSP90,NCP95,SCP90..B,F200708-201011

LT.PURPLE M.M.,9AE

sub69217-42020

sub69217-42010

main69217-42020-L0iKSP90,NCP9#,SCP90..B,F,X200501-200512

PALE ORANGE MICA METALLIC,4S3

sub69217-42020

sub69217-42010

main69217-42020-L1iKSP90,NCP9#,SCP90..B,F,ILL,X200501-200708

BEIGE PM.,4S8

sub69217-42020

sub69217-42010

main69217-42020-L6iKSP90,NCP95,SCP90..F200708-200803

COPPER ME.,4T4

sub69217-42020

sub69217-42010

main69217-42020-P0iKSP90,NCP95,SCP90..B,F200501-201008

SILVER M.M.,1E7

sub69217-42020

sub69217-42010

main69217-42020-P3iNCP91..5F200501-201012

MEDIUM SILVER ME.,1F8

sub69217-42020

sub69217-42010

main69217-42020-P5iNCP91..5F200809-201012

GRAY ME.,1G3

sub69217-42020

sub69217-42010

main69217-42020-P6iKSP90;NCP95,SCP90..F201008-201012

SILVER ME.,1F7

sub69217-42020

sub69217-42010

main69217-42020-P7iNCP91..RS200611-200809

DK.GRAY M.M.,1F6

sub69217-42020

sub69217-42010

main69217-42020-Q3iKSP90,NCP9#,SCP90..B,F,X200512-200708

LT.GREEN ME.,6U0

sub69217-42020

sub69217-42010

main69217-42020-R5iKSP90,NCP9#,SCP90..B,F,X200501-200708

LT. BLUE M.M.,8S9

sub69217-42020

sub69217-42010

main69217-42020-R6iNCP91..5F200501-201012

BLUE M.M.,8T0

sub69217-42020

sub69217-42010

main69217-42020-R7iKSP90,NCP95,SCP90..ILL200512-200708

GRAYISH BLUE M.M.,8T1

sub69217-42020

sub69217-42010

main69217-42020-R9iKSP90,NCP95,SCP90..B,F200712-201008

DK.BLUE MC.,8P4

sub69217-42020

sub69217-42010

main69217-42020-X0iKSP90,NCP9#,SCP90..F,RS200501-201012

SUPER RED 5,3P0

sub69217-42020

sub69217-42010

main69217-42020-X1iKSP90,NCP9#,SCP90..B,F,X200508-201012

ROSE ME.OP.,3P3

sub69217-42020

sub69217-42010

main69217-42020-X6iKSP90..B,F200512-201011

DARK RED MC.,3Q8

sub69217-42020

sub69217-42010

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-12320-A0iKSP90..F200712-201007

SUPER WHITE 2,068

sub69210-12320

main69210-12320-A0iNCP9#,SCP90..U200808-201012

SUPER WHITE 2,040 ,068

sub69210-12320

main69210-12320-A0iNCP9#,SCP90..U200808-201012

sub69210-12320

main69210-12320-A0iKSP90..U200808-201007

sub69210-12320

main69210-12320-A2iKSP90,NCP9#,SCP90..F,RS,X200501-200712

WHITE,068

sub69210-12320

main69210-12320-A2iNCP95,SCP90..U200501-200708

sub69210-12320

main69210-12320-A2iKSP90,NCP9#,SCP90..F,RS200708-200712

sub69210-12320

main69210-12320-A5iKSP90..F200808-201012

sub69210-12320

main69210-12320-A5iKSP90,NCP95,SCP90..F200708-200808

sub69210-12320

main69210-12320-A5iNCP95,SCP90..F200708-201012

WHITE PEARL CS.,070

sub69210-12320

main69210-12320-B1iNCP95,SCP90..F200501-201008

SILVER M.M.,1E7

sub69210-12320

main69210-12320-B1iNCP9#,SCP90..U200808-201008

sub69210-12320

main69210-12320-B1iNCP95,SCP90..U200501-200708

sub69210-12320

main69210-12320-B1iKSP90,NCP9#,SCP90..U200708-200808

sub69210-12320

main69210-12320-B2iNCP95..U200501-201012

MEDIUM SILVER ME.,1F8

sub69210-12320

main69210-12320-B2iNCP95..F200501-200708

sub69210-12320

main69210-12320-B2iNCP9#,SCP90..ILL,U200808-201012

sub69210-12320

main69210-12320-B7iNCP9#,SCP90..U201008-201012

sub69210-12320

main69210-12320-B7iNCP95,SCP90..F201008-201012

SILVER ME.,1F7

sub69210-12320

main69210-12320-C0iNCP95,SCP90..U200501-200708

sub69210-12320

main69210-12320-C0iNCP9#,SCP90..U200501-201012

BLACK MC.,209

sub69210-12320

main69210-12320-C0iKSP90..F200808-201012

sub69210-12320

main69210-12320-D2iNCP9#,SCP90..U200808-201012

sub69210-12320

main69210-12320-D2iNCP9#,SCP90..F,RS200501-201012

SUPER RED 5,3P0

sub69210-12320

main69210-12320-D2iKSP90,NCP9#,SCP90..F,RS,X200501-200708

sub69210-12320

main69210-12320-D4iKSP90,NCP9#,SCP90..F,X200508-200708

sub69210-12320

main69210-12320-D4iNCP95,SCP90..U200508-200708

ROSE ME.OP.,3P3

sub69210-12320

main69210-12320-D8iNCP95,SCP90..F200808-201011

sub69210-12320

main69210-12320-D8iNCP95,SCP90..F200708-201011

DARK RED MC.,3Q8

sub69210-12320

main69210-12320-E0iKSP90,NCP9#,SCP90..F,X200501-200512

sub69210-12320

main69210-12320-E0iKSP90,NCP9#,SCP90..F,X200501-200512

PALE ORANGE MICA METALLIC,4S3

sub69210-12320

main69210-12320-E1iNCP95,SCP90..U200501-200708

sub69210-12320

main69210-12320-E1iKSP90,NCP9#,SCP90..F,ILL,X200501-200708

BEIGE PM.,4S8

sub69210-12320

main69210-12320-E7iKSP90,NCP9#,SCP90..U200708-200803

sub69210-12320

main69210-12320-E7iKSP90,NCP9#,SCP90..U200708-200803

COPPER ME.,4T4

sub69210-12320

main69210-12320-F2iKSP90..F200808-201008

sub69210-12320

main69210-12320-F2iNCP95,SCP90..F200808-201008

YELLOW,5A6

sub69210-12320

main69210-12320-G0iNCP9#,SCP90..ILL200708-200807

DK.GREEN M.M.,6S3

sub69210-12320

main69210-12320-G1iKSP90,NCP9#,SCP90..F,RS,X200501-200512

sub69210-12320

main69210-12320-G1iNCP95,SCP90..U200501-200512

GREEN M.M.,6U1

sub69210-12320

main69210-12320-G8iKSP90,NCP9#,SCP90..F,X200512-200708

sub69210-12320

main69210-12320-G8iNCP95,SCP90..U200512-200708

LT.GREEN ME.,6U0

sub69210-12320

main69210-12320-H1iKSP90,NCP9#,SCP90..U200708-201008

TURQUOISE ME.,777

sub69210-12320

main69210-12320-H1iKSP90..U200808-201008

sub69210-12320

main69210-12320-H1iKSP90,NCP9#,SCP90..U200708-200808

sub69210-12320

main69210-12320-J1iKSP90,NCP9#,SCP90..U200501-200712

DK.BLUE M.M.,8P4

sub69210-12320

main69210-12320-J1iKSP90,NCP9#,SCP90..U200708-200712

sub69210-12320

main69210-12320-J1iNCP95,SCP90..U200501-200708

sub69210-12320

main69210-12320-J3iKSP90,NCP9#,SCP90..F,X200501-200708

LT. BLUE M.M.,8S9

sub69210-12320

main69210-12320-J3iKSP90,NCP9#,SCP90..F,X200501-200708

sub69210-12320

main69210-12320-J4iNCP95..F200501-201012

BLUE M.M.,8T0

sub69210-12320

main69210-12320-J4iNCP95..F200501-200708

sub69210-12320

main69210-12320-J4iNCP9#,SCP90..F,RS200808-201012

sub69210-12320

main69210-12320-J5iNCP9#,SCP90..ILL200708-201012

GRAYISH BLUE M.M.,8T1

sub69210-12320

main69210-12320-J8iKSP90,NCP95,SCP90..F200712-200908

DK.BLUE MC.,8P4

sub69210-12320

main69210-12320-J8iKSP90,NCP9#,SCP90..U200808-200908

sub69210-12320

main69210-12320-J8iKSP90,NCP95,SCP90..F200712-200808

sub69210-12320

main69210-12320-K0iNCP95,SCP90..U200501-200609

sub69210-12320

main69210-12320-K0iKSP90,NCP9#,SCP90..F,ILL,X200501-200609

REDDISH PURPLE M.M.,9AC

sub69210-12320

main69210-12320-K3iKSP90..U200708-201011

LT.PURPLE M.M.,9AE

sub69210-12320

main69210-12320-K3iNCP9#,SCP90..U200808-201011

sub69210-12320

main69210-12320-K3iKSP90,NCP95,SCP90..F200708-200808

sub69210-12320

main69211-12220-03iKSP90..U200708-201012

WHITE PEARL CS.,070

sub69211-12220

sub69211-52090

main69211-12220-50iKSP90,NCP95,SCP90..F200808-201012

SILKY GOLD M.M.,5A7

sub69211-12220

sub69211-52090

main69211-12220-A0iKSP90,NCP9#,SCP90..B,F,RS200712-201007

SUPER WHITE 2,068

sub69211-12220

sub69211-52090

main69211-12220-A0iKSP90,NCP9#,SCP90..ATM..(B,F,RS)200808-201012

SUPER WHITE 2,040 ,068

sub69211-12220

sub69211-52090

main69211-12220-A8iKSP90,NCP9#,SCP90..B,F,RS,X200501-200712

WHITE,068

sub69211-12220

sub69211-52090

main69211-12220-C2iKSP90,NCP9#,SCP90..F,RS200501-201012

BLACK MC.,209

sub69211-12220

sub69211-52090

main69211-12220-E8iKSP90,NCP9#,SCP90..B,F,X200501-200512

PALE ORANGE MICA METALLIC,4S3

sub69211-12220

sub69211-52090

main69211-12220-E9iKSP90,NCP9#,SCP90..B,F,ILL,X200501-200708

BEIGE PM.,4S8

sub69211-12220

sub69211-52090

main69211-12220-F9iKSP90..U200808-201008

YELLOW,5A6

sub69211-12220

sub69211-52090

main69211-12220-G1iKSP90,NCP95,SCP90..ILL200512-200708

DK.GREEN M.M.,6S3

sub69211-12220

sub69211-52090

main69211-12220-G6iKSP90,NCP9#,SCP90..B,F,RS,X200501-200512

GREEN M.M.,6U1

sub69211-12220

sub69211-52090

main69211-12220-H8iKSP90,NCP95,SCP90..F200902-201007

FROSTY GREEN MC.,781

sub69211-12220

sub69211-52090

main69211-12220-J0iKSP90,NCP9#,SCP90..B,F,X200501-200712

DK.BLUE M.M.,8P4

sub69211-12220

sub69211-52090

main69211-12220-K1iKSP90,NCP9#,SCP90..B,F,ILL,X200501-200609

REDDISH PURPLE M.M.,9AC

sub69211-12220

sub69211-52090

main69211-12220-K4iKSP90,NCP95,SCP90..B,F200708-201011

LT.PURPLE M.M.,9AE

sub69211-12220

sub69211-52090

main69211-12220-L4iKSP90,NCP95,SCP90..F200708-200803

COPPER ME.,4T4

sub69211-12220

sub69211-52090

main69211-12220-P0iKSP90,NCP95,SCP90..B,F200501-201008

SILVER M.M.,1E7

sub69211-12220

sub69211-52090

main69211-12220-P3iKSP90..U200501-201012

MEDIUM SILVER ME.,1F8

sub69211-12220

sub69211-52090

main69211-12220-P5iNCP91,SCP90..CVFC..RS200809-201012

GRAY ME.,1G3

sub69211-12220

sub69211-52090

main69211-12220-P6iKSP90;NCP95,SCP90..F201008-201012

SILVER ME.,1F7

sub69211-12220

sub69211-52090

main69211-12220-P7iNCP91..RS200611-200809

DK.GRAY M.M.,1F6

sub69211-12220

sub69211-52090

main69211-12220-Q3iKSP90,NCP9#,SCP90..B,F,X200512-200708

LT.GREEN ME.,6U0

sub69211-12220

sub69211-52090

main69211-12220-R4iKSP90,NCP9#,SCP90..B,F,X200501-200708

LT. BLUE M.M.,8S9

sub69211-12220

sub69211-52090

main69211-12220-R5iKSP90,NCP9#,SCP90..F,RS,X200501-201012

BLUE M.M.,8T0

sub69211-12220

sub69211-52090

main69211-12220-R6iKSP90,NCP95,SCP90..ILL200512-200708

GRAYISH BLUE M.M.,8T1

sub69211-12220

sub69211-52090

main69211-12220-R8iKSP90,NCP95,SCP90..B,F200712-201008

DK.BLUE MC.,8P4

sub69211-12220

sub69211-52090

main69211-12220-X0iKSP90..U200501-201012

SUPER RED 5,3P0

sub69211-12220

sub69211-52090

main69211-12220-X1iKSP90..B,F200508-201012

ROSE ME.OP.,3P3

sub69211-12220

sub69211-52090

main69211-12220-X6iKSP90..B,F200512-201011

DARK RED MC.,3Q8

sub69211-12220

sub69211-52090

main69211-52090-H1iKSP90,NCP95,SCP90..F200708-201008

TURQUOISE ME.,777

sub69211-52090

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-42020iKSP90,NCP9#,SCP90200501-201012

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-42010iKSP90,NCP9#,SCP90200501-200610

main69242-52020iNCP91..5F200611-201012

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iKSP90,NCP9#,SCP90200501-201012

main69293-12040iNCP91..5F200501-201012

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-52130iNCP91..5F200501-201012

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-52120iKSP90,NCP9#,SCP90..B,F,ILL,U200501-201012

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-47010iKSP90,NCP9#,SCP90200501-201012

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33010iKSP90,NCP9#,SCP90200501-201012

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-52120iKSP90,NCP9#,SCP90200501-201012

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-52120iKSP90,NCP9#,SCP90200501-201012

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-52050iKSP90,NCP9#,SCP90200501-201012

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-52050iNCP91..5F200501-201012

8420

89743CBRACKET, ELECTRICAL KEY WIRE HARNESS

main89743-47010iNCP95,SCP90..U200501-201012

main89743-47010iNCP95,SCP90..U200501-200708

main89743-47010iKSP90,NCP9#,SCP90..ILL,U200708-200808

main89743-47010iKSP90..U200808-201012

main89743-47020iNCP9#,SCP90..ILL,U200501-201012

main89743-47020iKSP90..U200808-201012

main89743-47020iNCP95,SCP90..U200501-200708

main89743-47020iKSP90,NCP9#,SCP90..ILL,U200708-200808

9014850003

main90148-50003

9014860022

main90148-60022

9014880066

main90148-80066

9015940202

main90159-40202

9016650003

main90166-50003

9018905003

main90189-05003

9018905171

main90189-05171

9054104027

main90541-04027

9356855016

main93568-55016

32 parts on this diagram · 1 diagram in section
