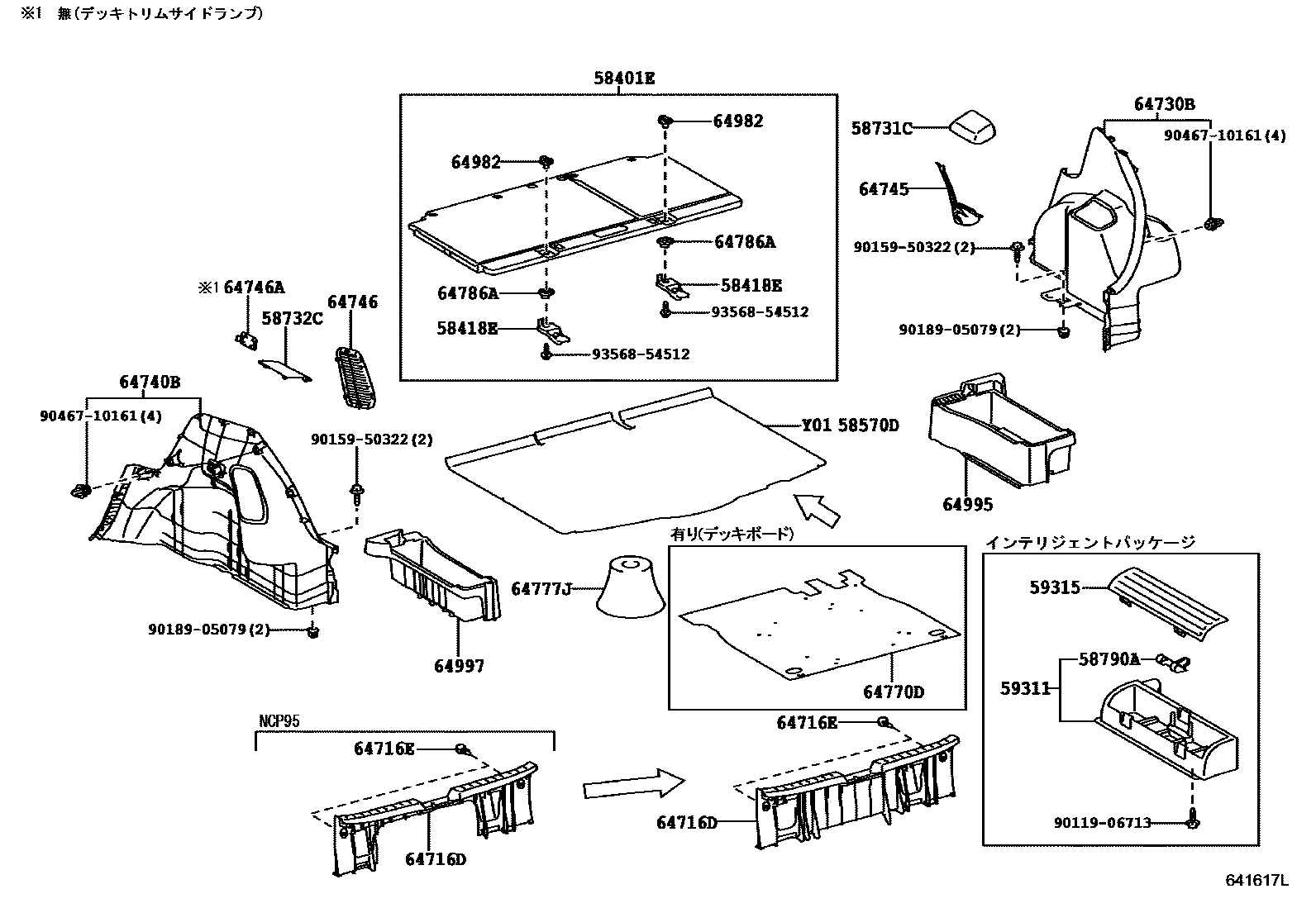

DECK BOARD & DECK TRIM COVER

58401EBOARD SUB-ASSY, DECK

main58410-52010-B1iSCP90..F200501-200708

main58410-52010-B1iNCP9#,SCP90..ILL200512-201012

DK.GRAY,TRIM4#

main58410-52010-B1iNCP9#,SCP90..ILL200501-201012

DK.GRAY,TRIM1#,4#

58418EBOARD, REAR FLOOR, NO.4

main58418-52011iSCP90..ILL,U;NCP9#..F,ILL,U¥110200708-201012

main58418-52011iSCP90..ILL,U;NCP9#..F,ILL,U,X¥110200501-200708

58570DCARPET ASSY, REAR FLOOR

main58570-52230-B0iKSP90..F200501-200708

sub58570-52231¥11,600

main58570-52230-B0iKSP90..F200501-200708

DARK GRAY,TRIM1#,4#

sub58570-52231¥11,600

main58570-52230-B0iKSP90..ILL200512-200708

DARK GRAY,TRIM4#

sub58570-52231¥11,600

main58570-52231-B0iKSP90;SCP90..F200708-201012

DARK GRAY,TRIM1#,4#

main58570-52240-B0iSCP90..F200501-200708

main58570-52240-B0iSCP90..F200501-200708

DARK GRAY,TRIM1#,4#

main58570-52240-B0iSCP90..F200501-200708

main58570-52270-B0iNCP91..RS200501-200708

sub58570-52271¥14,700

main58570-52270-B0iNCP91..RS200501-200708

DARK GRAY,TRIM1#

sub58570-52271¥14,700

main58570-52271-B0iNCP91,SCP90..RS200708-201012

DARK GRAY,TRIM1#

58731CCAP, REAR ABSORBER

main58731-52050-B0iKSP90,NCP9#,SCP90..B,F,U,X200501-201012

DK.GRAY,TRIM1#

sub58731-52050¥1,160

main58731-52050-B0iNCP91..RS200501-200708

DK.GRAY,TRIM1#,4#

sub58731-52050¥1,160

main58731-52050-B0iKSP90,NCP95,SCP90..ILL200512-200708

DK.GRAY,TRIM4#

sub58731-52050¥1,160

main58731-52050-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200708-201012

ASH BROWN,TRIM4#

sub58731-52050¥1,160

58732CCAP, REAR ABSORBER

main58732-52030-B0iNCP91..RS200501-200708

DK.GRAY,TRIM1#,4#

sub58732-52030¥970

main58732-52030-B0iNCP91..RS200501-201012

DK.GRAY,TRIM1#

sub58732-52030¥970

main58732-52030-B0iKSP90,NCP95,SCP90..ILL200512-200708

DK.GRAY,TRIM4#

sub58732-52030¥970

main58732-52030-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200708-201012

ASH BROWN,TRIM4#

sub58732-52030¥970

58790ACARRIER ASSY, JACK

59311PANEL, REAR FLOOR BOX

main59311-52030¥10,100

59315COVER, REAR FLOOR BOX

main59315-52020¥4,950

64716DCOVER, DECK TRIM, REAR

main64716-52110-B0iNCP95..F,U200708-201012

DK.GRAY,TRIM1#

main64716-52110-B0iNCP95..F,U200501-200708

DK.GRAY,TRIM1#,4#

main64716-52110-B0iNCP95..ILL200512-200708

DK.GRAY,TRIM4#

main64716-52110-E0iNCP95200708-200808

ASH BROWN,TRIM42

main64716-52110-E0iNCP95200808-201012

ASH BROWN,TRIM4#

main64716-52120-B0iKSP90,NCP91,SCP90..B,F,RS,U200501-201012

DK.GRAY,TRIM1#

main64716-52120-B0iNCP91..RS200501-200708

DK.GRAY,TRIM1#,4#

main64716-52120-B0iKSP90,SCP90..ILL200512-200708

DK.GRAY,TRIM4#

main64716-52120-E0iKSP90,NCP91,SCP90..B,F,ILL,U200708-200808

ASH BROWN,TRIM42

main64716-52120-E0iKSP90,NCP91,SCP90..B,F,ILL,U200808-201012

ASH BROWN,TRIM4#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-08186-B4iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

DK.GRAY,TRIM1#,4#

sub90467-08186¥120

main90467-08186-B4iKSP90,NCP9#,SCP90..B,F,U,X200501-201012

DK.GRAY,TRIM1#

sub90467-08186¥120

main90467-08186-B4iKSP90,NCP95,SCP90..ILL200512-200708

DK.GRAY,TRIM4#

sub90467-08186¥120

main90467-08186-B4iKSP90,NCP9#,SCP90..B,F,U200708-200808

DK.GRAY,TRIM1#,42

sub90467-08186¥120

main90467-08186-B4iKSP90,NCP9#,SCP90..B,F,U200708-200808

DK.GRAY,TRIM42

sub90467-08186¥120

main90467-08186-E3iKSP90,NCP9#,SCP90..B,F,ILL,U200708-200808

ASH BROWN,TRIM42

sub90467-08186¥120

main90467-08186-E3iKSP90,NCP9#,SCP90..B,F,ILL,U200808-201012

ASH BROWN,TRIM4#

sub90467-08186¥120

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-52290-B0iKSP90,NCP9#,SCP90..B,F,X200501-200708

DK.GRAY,TRIM1#,4#

main64730-52290-B0iKSP90,NCP9#,SCP90..B,F,U200708-201012

DK.GRAY,TRIM1#

main64730-52290-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200708-201012

ASH BROWN,TRIM4#

main64730-52300-B0iNCP91..RS200501-200708

DK.GRAY,TRIM1#

main64730-52300-B0iNCP95,SCP90..U200501-200708

DK.GRAY,TRIM1#,4#

main64730-52300-B0iKSP90,NCP95,SCP90..ILL200512-200708

DK.GRAY,TRIM4#

64740BBOARD, DECK TRIM SIDE, LH

main64740-52350-B0iKSP90,NCP9#,SCP90..B,F,RS,U200708-201012

DK.GRAY,TRIM1#

main64740-52350-B0iKSP90,NCP9#,SCP90..B,F,X200501-200708

DK.GRAY,TRIM1#,4#

main64740-52350-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200708-201012

ASH BROWN,TRIM4#

main64740-52360-B0iNCP95,SCP90..U200501-200708

DK.GRAY,TRIM1#

main64740-52360-B0iNCP95,SCP90..U200501-200708

DK.GRAY,TRIM1#,4#

main64740-52360-B0iKSP90,NCP95,SCP90..ILL200512-200708

DK.GRAY,TRIM4#

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-52070-B0iKSP90,NCP9#,SCP90..B,F,RS,U200501-201012

DK.GRAY,TRIM1#

main64745-52070-B0iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

DK.GRAY,TRIM1#,4#

main64745-52070-B0iKSP90,NCP95,SCP90..ILL200512-200708

DK.GRAY,TRIM4#

main64745-52070-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200708-201012

ASH BROWN,TRIM4#

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-52100-B0iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

DK.GRAY,TRIM1#,4#

main64746-52100-B0iKSP90,NCP9#,SCP90..B,F,U,X200501-201012

DK.GRAY,TRIM1#

main64746-52100-B0iKSP90,NCP95,SCP90..ILL200512-200708

DK.GRAY,TRIM4#

main64746-52100-E0iKSP90,NCP9#,SCP90..B,F,ILL,U200708-201012

ASH BROWN,TRIM4#

64746ACOVER, DECK TRIM SIDE LAMP HOLE

main64746-52110-B0iKSP90..B200708-201012

DK.GRAY,TRIM1#

main64746-52110-B0iKSP90..B200501-200708

DK.GRAY,TRIM1#,4#

main64746-52110-E0iKSP90..B200708-200908

ASH BROWN,TRIM4#

64770DCOVER ASSY, SPARE WHEEL

main64771-52160iNCP91,SCP90..ILL,U¥5,800200708-201012

main64771-52160iNCP91,SCP90..ILL,U,X¥5,800200501-200708

64777JCUSHION, SPARE WHEEL

main64777-52020iKSP90,NCP91,SCP90¥930200708-201012

main64777-52020iKSP90,NCP91,SCP90..F,RS¥930200501-200708

main64777-52020iKSP90,NCP91,SCP90¥930200501-200708

64786APLATE, JACK COVER

main64786-20010iSCP90..ILL,U;NCP9#..F,ILL,U,X¥390200501-200708

main64786-20010iSCP90..ILL,U;NCP9#..F,ILL,U¥390200708-201012

64982KNOB, COVER

main64982-13010-C0iNCP9#,SCP90..ILL200501-201012

BLACK,TRIM1#,4#

sub64982-13010¥300

main64982-13010-C0iSCP90..U;NCP9#..F,U,X200501-200708

sub64982-13010¥300

main64982-13010-C0iNCP95,SCP90..ILL200512-201012

BLACK,TRIM4#

sub64982-13010¥300

64995BOX, DECK FLOOR, RH

main64995-52050iSCP90..ILL,U;NCP9#..F,ILL,U,X¥13,500200501-200708

main64995-52050iSCP90..ILL,U;NCP9#..F,ILL,U¥13,500200708-201012

64997BOX, DECK FLOOR, LH

main64997-52030iSCP90..ILL,U;NCP9#..F,ILL,U,X¥13,500200501-200708

main64997-52030iSCP90..ILL,U;NCP9#..F,ILL,U¥13,500200708-201012

9011906713

main90119-06713¥70

9015950322

main90159-50322¥70

9018905079

main90189-05079¥110

9046710161

main90467-10161¥90

9356854512

main93568-54512¥70

26 parts on this diagram · 1 diagram in section
