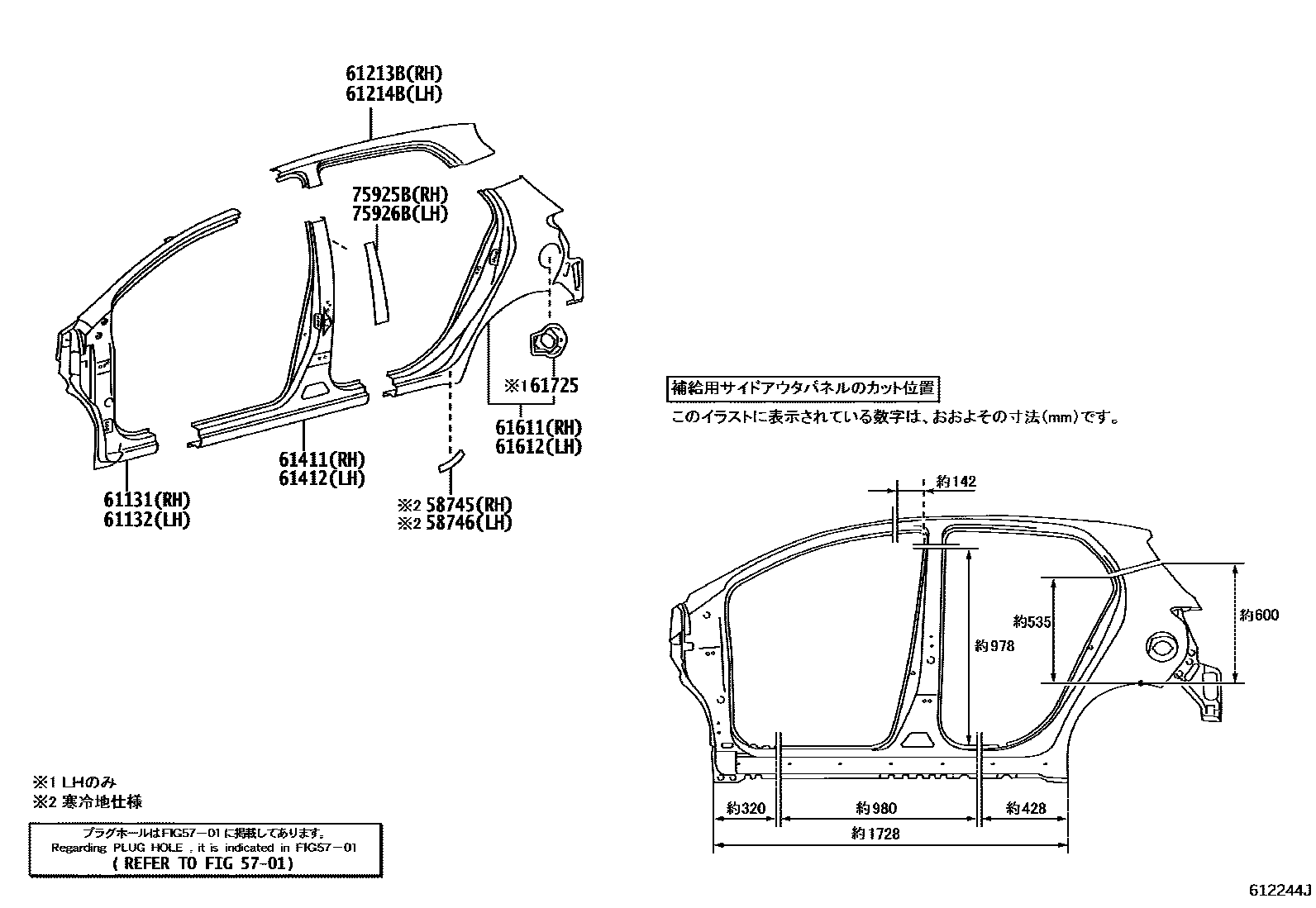

SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH

5701

58745PROTECTOR, QUARTER PANEL, FRONT RH

main58741-52150iKSP90,NCP9#,SCP90..B,F,ILL,U,X200607-200708

main58741-52280iNCP91,SCP90..RS200809-201012

main58745-52040iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200606

main58745-52070iNCP91..RS200501-200606

58746PROTECTOR, QUARTER PANEL, FRONT LH

main58742-52150iKSP90,NCP9#,SCP90..B,F,ILL,U,X200607-200708

main58742-52290iNCP91,SCP90..RS200708-200809

main58746-52050iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200606

main58746-52080iNCP91..RS200501-200606

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-52170iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200708

main61131-52200iNCP91..RS200501-200708

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-52110iKSP90,NCP9#,SCP90..B,F,ILL,U200808-201012

main61132-52180iNCP91,SCP90..RS200708-200809

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-52090iKSP90,NCP9#,SCP90200501-200701

main61213-52150iKSP90,NCP9#,SCP90200702-200708

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-52090iKSP90,NCP9#,SCP90200501-200701

main61214-52150iKSP90,NCP9#,SCP90200702-200708

61411PANEL, ROCKER, OUTER RH

main61411-52160iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200708

main61411-52180iNCP91,SCP90..RS200708-200809

61412PANEL, ROCKER, OUTER LH

main61412-52170iKSP90,NCP9#,SCP90..B,F,ILL,U200708-200808

main61412-52190iNCP91..RS200501-200708

61611PANEL, QUARTER, RH

main61601-52270iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200701

main61601-52330iNCP91..RS200501-200701

main61601-52440iKSP90,NCP9#,SCP90..B,F,ILL,U,X200702-200708

main61601-52450iNCP91..RS200702-200708

61612PANEL, QUARTER, LH

main61602-52290iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200701

main61602-52360iNCP91..RS200501-200701

main61602-52470iKSP90,NCP9#,SCP90..B,F,ILL,U,X200702-200708

main61602-52480iNCP91,SCP90..RS200708-200809

61725BOX, FUEL INLET

main61725-52080iNCP91,SCP90..RS200708-200809

75925BTAPE, BLACK OUT, NO.3 RH

main75925-52060iKSP90,NCP9#,SCP90200501-200505

main75925-52061iKSP90,NCP9#,SCP90200506-200708

75926BTAPE, BLACK OUT, NO.3 LH

main75926-52060iKSP90,NCP9#,SCP90200501-200505

main75926-52061iKSP90,NCP9#,SCP90200506-200708

14 parts on this diagram · 3 diagrams in section
