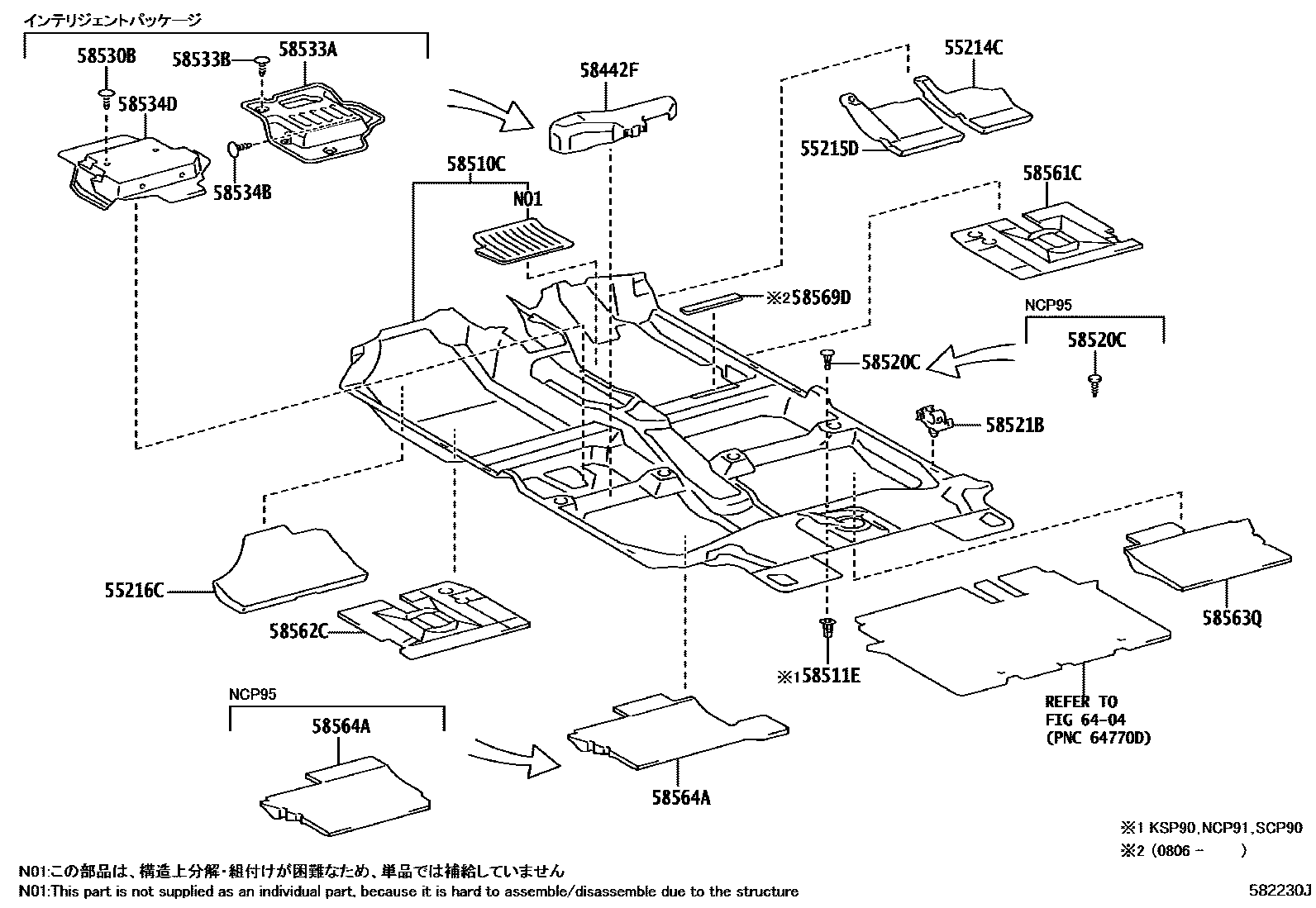

MAT & CARPET

0001 1 0002 1��� ��� CHAMBRE A PARIS COLLE

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-52130iKSP90,NCP9#,SCP90200501-201012

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-52100iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-200606

sub55215-52101

main55215-52101iKSP90,NCP9#,SCP90..B,F,ILL,U,X200607-201012

55216CPAD, DASH PANEL INSULATOR, NO.4

main55216-52010iKSP90,NCP9#,SCP90200501-201012

58442FCOVER, JACK

main58442-52060iKSP90..B,F200501-201012

main58442-52060iNCP91,SCP90..RS200708-200809

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-52A60-B0iNCP91..RS200501-200708

GRAY,TRIM1#

sub58510-52A61

main58510-52A61-B0iNCP91,SCP90..RS200708-200805

GRAY,TRIM1#

sub58510-52A62

sub58569-52020

main58510-52A62-B0iNCP91,SCP90..RS200806-201012

GRAY,TRIM1#

main58510-52B10-B0iNCP95..F,U200501-200708

GRAY,TRIM1#,4#

sub58510-52B11

main58510-52B10-B0iNCP95..ILL200512-200708

GRAY,TRIM4#

sub58510-52B11

main58510-52B11-B0iNCP95..ILL200708-200805

GRAY,TRIM4#

sub58510-52B12

sub58569-52020

main58510-52B11-B0iNCP95..F,U200708-200805

GRAY,TRIM1#,4#

sub58510-52B12

sub58569-52020

main58510-52B12-B0iNCP95..F,U200806-201012

GRAY,TRIM4#

main58510-52B12-B0iNCP95..ILL200806-201012

GRAY,TRIM1#,4#

main58510-52B30-B0iNCP91,SCP90..F,U,X200501-200708

GRAY,TRIM1#,4#

sub58510-52B31

main58510-52B30-B0iSCP90..ILL200512-200708

GRAY,TRIM4#

sub58510-52B31

main58510-52B31-B0iNCP91,SCP90..U200708-200805

GRAY,TRIM4#

sub58510-52B32

sub58569-52020

main58510-52B31-B0iNCP91,SCP90..U200708-200805

GRAY,TRIM1#,4#

sub58510-52B32

sub58569-52020

main58510-52B32-B0iNCP91,SCP90..U200806-201012

GRAY,TRIM4#

main58510-52B32-B0iNCP91,SCP90..ILL200806-201012

GRAY,TRIM1#,4#

main58510-5D150-B0iKSP90..B,F200501-200708

GRAY,TRIM1#,4#

sub58510-5D151

main58510-5D150-B0iKSP90..ILL200512-200708

GRAY,TRIM4#

sub58510-5D151

main58510-5D151-B0iKSP90;SCP90..F200708-200805

GRAY,TRIM1#,4#

sub58510-5D152

sub58569-52020

main58510-5D152-B0iKSP90;SCP90..F200806-201012

GRAY,TRIM1#,4#

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-10023iKSP90,NCP91,SCP90200501-201012

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-P2iNCP95..ILL200512-201012

DK.GRAY,TRIM4#

sub90467-06016

sub90467-07049

main90467-06016-P2iNCP95..ILL200501-201012

DK.GRAY,TRIM1#,4#

sub90467-06016

sub90467-07049

main90467-07115-B0iNCP91,SCP90..ILL200501-201012

DK.GRAY,TRIM1#,4#

sub90467-07115

main90467-07115-B0iNCP91..RS200501-201012

DK.GRAY,TRIM1#

sub90467-07115

main90467-07115-B0iKSP90,SCP90..ILL200512-201012

DK.GRAY,TRIM4#

sub90467-07115

58521BHOOK, FLOOR CARPET

main58521-52040iKSP90,NCP9#,SCP90200501-201012

58530BCLIP(FOR FRONT FLOOR CARPET)

58533ACOVER, FLOOR CARPET, CENTER RH

58533BCLIP(FOR FLOOR CARPET COVER)

58534BCLIP(FOR FLOOR CARPET CENTER COVER)

58534DCOVER, FLOOR CARPET, CENTER LH

58561RETAINER, FLOOR MAT, NO.1

main58561-WY020

main58512-WY040

main58561-52130

58561CSILENCER, FRONT FLOOR, NO.1

main58561-52130iKSP90,NCP9#,SCP90200501-201012

sub58561-52131

58562CSILENCER, FRONT FLOOR, NO.2

main58562-52090iKSP90,NCP9#,SCP90200501-201012

sub58562-52091

58563QSILENCER, FRONT FLOOR, NO.3

main58563-52070iKSP90,NCP91,SCP90200501-201012

sub58563-52071

main58563-52110iNCP95200501-201012

sub58563-52111

58564ASILENCER, FRONT FLOOR, NO.4

main58564-52080iNCP91,SCP90..RS200501-201012

sub58564-52081

main58564-52110iNCP95200501-201012

sub58564-52111

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-52020-B0iKSP90,NCP9#,SCP90..B,F,U200806-201012

DK.GRAY,TRIM1#,4#

sub58569-52021

main58569-52020-B0iKSP90,NCP9#,SCP90..B,F,U200806-201012

DK.GRAY,TRIM4#

sub58569-52021

main58569-52020-B0iNCP91,SCP90..RS200806-201012

DK.GRAY,TRIM1#

sub58569-52021

6404

20 parts on this diagram · 2 diagrams in section
