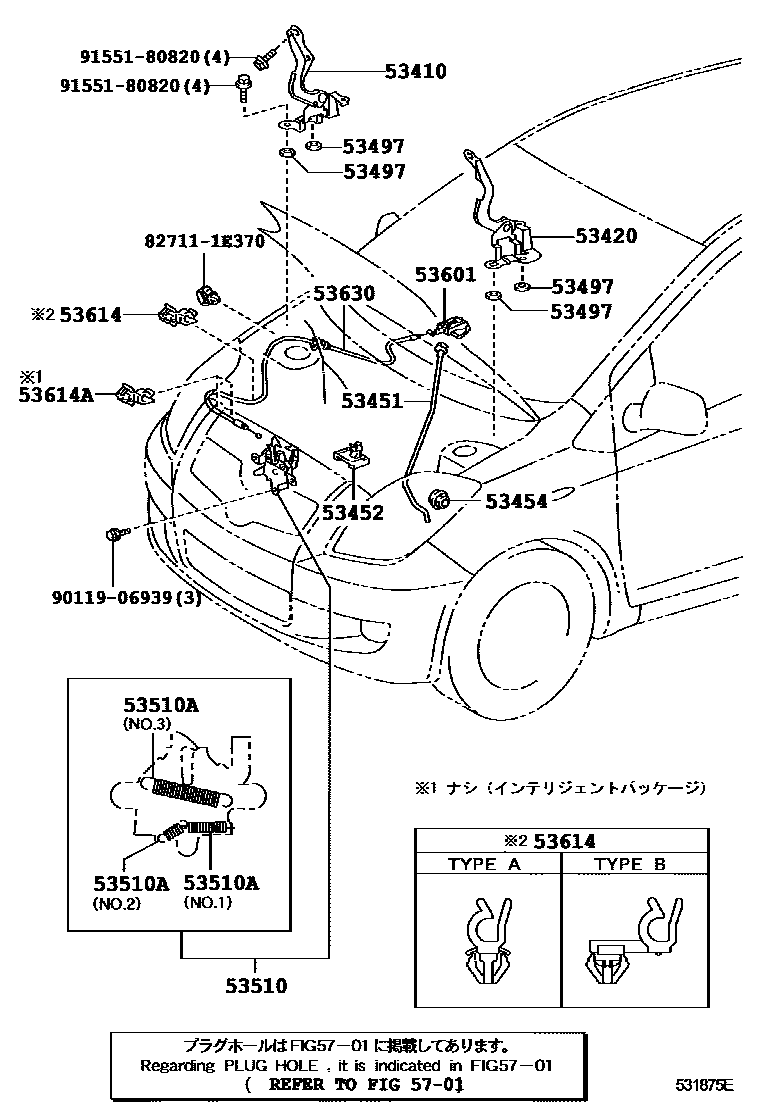

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-52180iKSP90,NCP9#,SCP90200501-201012

53420HINGE ASSY, HOOD, LH

main53420-52180iKSP90,NCP9#,SCP90200501-201012

53451ROD, HOOD SUPPORT

main53440-52120iKSP90,NCP9#,SCP90200501-201012

53452HOLDER, HOOD STAY

main53452-52010iKSP90,NCP9#,SCP90200501-201012

53454CLIP, HOOD SUPPORT ROD

main53454-52020iKSP90,NCP9#,SCP90200501-201012

53497PAD, HOOD HINGE, NO.1

main53497-42010iKSP90,NCP9#,SCP90200501-201012

53510LOCK ASSY, HOOD

main53510-52290iNCP91..5F200501-201012

main53510-52310iKSP90..B,F200504-201007

sub53510-52311

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iKSP90,NCP9#,SCP90200501-201012

main90506-12063iNCP91..5F200501-201012

main90506-14085iNCP91,SCP90..RS200501-201012

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B3iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

DK.GRAY,TRIM1#,4#

sub53601-52010

main53601-52010-B3iNCP91..RS200501-201012

DK.GRAY,TRIM1#

sub53601-52010

main53601-52010-B3iKSP90,NCP95,SCP90..ILL200512-200708

DK.GRAY,TRIM4#

sub53601-52010

main53601-52010-B3iKSP90,NCP9#,SCP90..B,F,U200708-200808

DK.GRAY,TRIM1#,42

sub53601-52010

main53601-52010-B3iKSP90,NCP9#,SCP90..B,F,U200708-200808

DK.GRAY,TRIM42

sub53601-52010

main53601-52010-E3iKSP90,NCP9#,SCP90..B,F,ILL,U200808-201012

ASH BROWN,TRIM4#

sub53601-52010

main53601-52010-E3iKSP90,NCP9#,SCP90..B,F,ILL,U200708-200808

ASH BROWN,TRIM42

sub53601-52010

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-52010iKSP90,NCP9#,SCP90..B,F,ILL,U200501-201012

main53614-52020iNCP91,SCP90..RS200706-201012

53614ACLAMP, HOOD LOCK CONTROL CABLE, NO.1

main53614-52010iKSP90,NCP9#,SCP90200501-201012

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52110iNCP91..5F200501-201012

5701

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

9011906939

main90119-06939

9155180820

main91551-80820

16 parts on this diagram · 1 diagram in section
