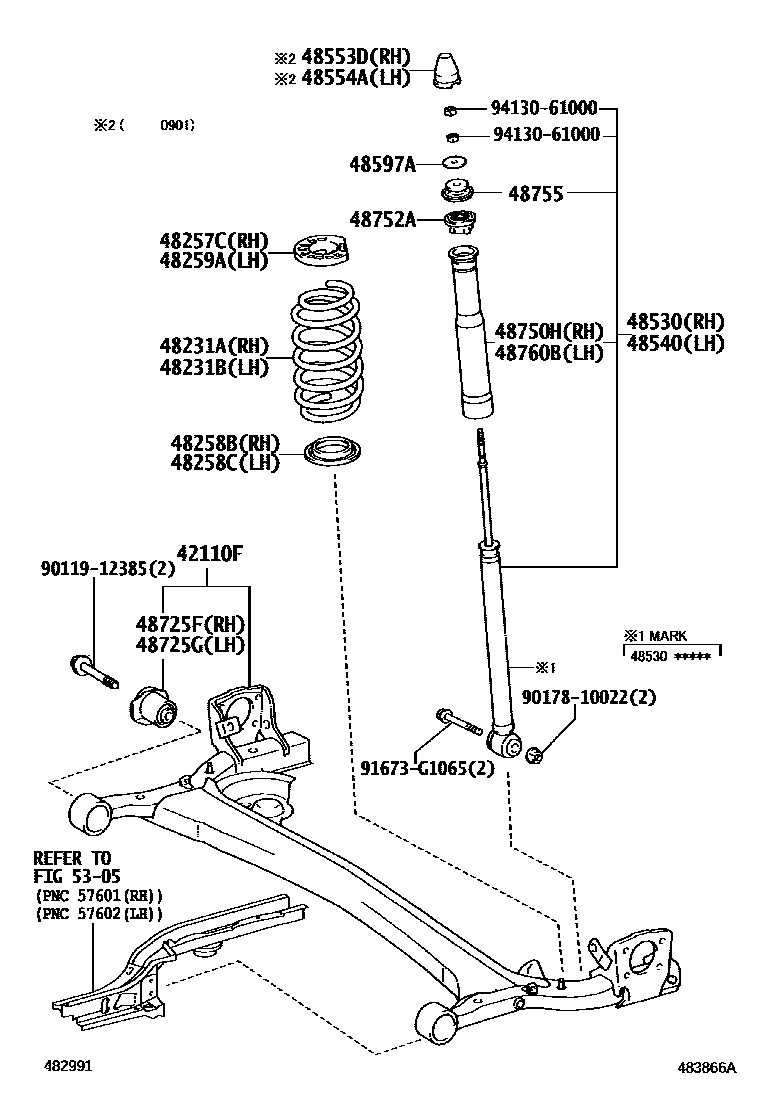

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42110FBEAM ASSY, REAR AXLE

main42110-52260iKSP90,NCP91,SCP90..B,F,ILL,U,X200501-200605

sub42110-52261

main42110-52270iNCP91..RS200501-200601

sub42110-52340

main42110-52280iNCP95200501-200508

sub42110-52281

main42110-52281iNCP95200509-201012

main42110-52331iKSP90,NCP91,SCP90..B,F,ILL,U,X200606-201005

sub42110-52332

main42110-52332iSCP90;KSP90,NCP91..B,F,ILL,U201006-201012

main42110-52340iNCP91..RS200601-200605

sub42110-52341

main42110-52341iNCP91..RS200606-201012

sub42110-52431

48231ASPRING, COIL, REAR RH

main48231-52A00iKSP90,NCP91,SCP90..B,F,ILL,U,X200501-201012

main48231-52A10iNCP91..RS200501-201012

main48231-52A60iNCP95..F200501-201012

main48231-52A70iNCP95..ILL,U200501-201012

sub48231-52A71

48231BSPRING, COIL, REAR LH

main48231-52A00iKSP90,NCP91,SCP90..B,F,ILL,U200501-201012

main48231-52A10iNCP91,SCP90..RS200501-201012

main48231-52A60iNCP95..F200501-201012

main48231-52A70iNCP95..ILL,U200501-201012

sub48231-52A71

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-52010iKSP90,NCP9#,SCP90200501-201012

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-52030iKSP90,NCP9#,SCP90200501-201012

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-52030iKSP90,NCP9#,SCP90200501-201012

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-52010iKSP90,NCP9#,SCP90200501-201012

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-80220iNCP95200501-201012

main48530-80301iKSP90,NCP91,SCP90..B,F,U,X200501-200503

sub48530-80324

main48530-80324iKSP90,NCP91,SCP90..B,F,ILL,U,X200503-200908

sub48530-80554

main48530-80339iNCP91..RS200501-200708

main48530-80462iNCP91,SCP90..RS200708-201012

main48530-80554iKSP90,NCP91,SCP90..B,F,ILL,U200908-201012

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-80220iNCP95200501-201012

main48530-80301iKSP90,NCP91,SCP90..B,F,U,X200501-200503

sub48530-80324

main48530-80324iKSP90,NCP91,SCP90..B,F,ILL,U200503-200908

sub48530-80554

main48530-80339iNCP91..RS200501-200708

main48530-80462iNCP91,SCP90..RS200708-201012

main48530-80554iKSP90,NCP91,SCP90..B,F,ILL,U200908-201012

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-52010iKSP90,NCP9#,SCP90200501-200901

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-52010iKSP90,NCP9#,SCP90..B,F,ILL,U200501-200901

48597ARETAINER, REAR SHOCK ABSORBER CUSHION

main90201-10320iKSP90,NCP9#,SCP90200501-201012

48725FBUSH, REAR AXLE CARRIER, RH

main48725-52060iNCP91,SCP90..RS200501-201012

main48725-52090iNCP95200501-201012

48725GBUSH, REAR AXLE CARRIER, LH

main48725-52060iKSP90,NCP91,SCP90200501-201012

main48725-52090iNCP95200501-201012

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-52100iKSP90,NCP91,SCP90..B,F,ILL,U200501-201012

main48750-52110iNCP95200501-201012

48752ASTOPPER, REAR SUSPENSION SUPPORT

main48752-52010iNCP91,SCP90..RS200501-201012

main48752-52020iNCP95200501-201012

48755SUPPORT, REAR SUSPENSION

main48755-52010iKSP90,NCP9#,SCP90200501-201012

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-52100iKSP90,NCP91,SCP90200501-201012

main48750-52110iNCP95200501-201012

5305

9011912385

main90119-12385

9017810022

main90178-10022

91673G1065

main91673-G1065

9413061000

main94130-61000

23 parts on this diagram · 2 diagrams in section
