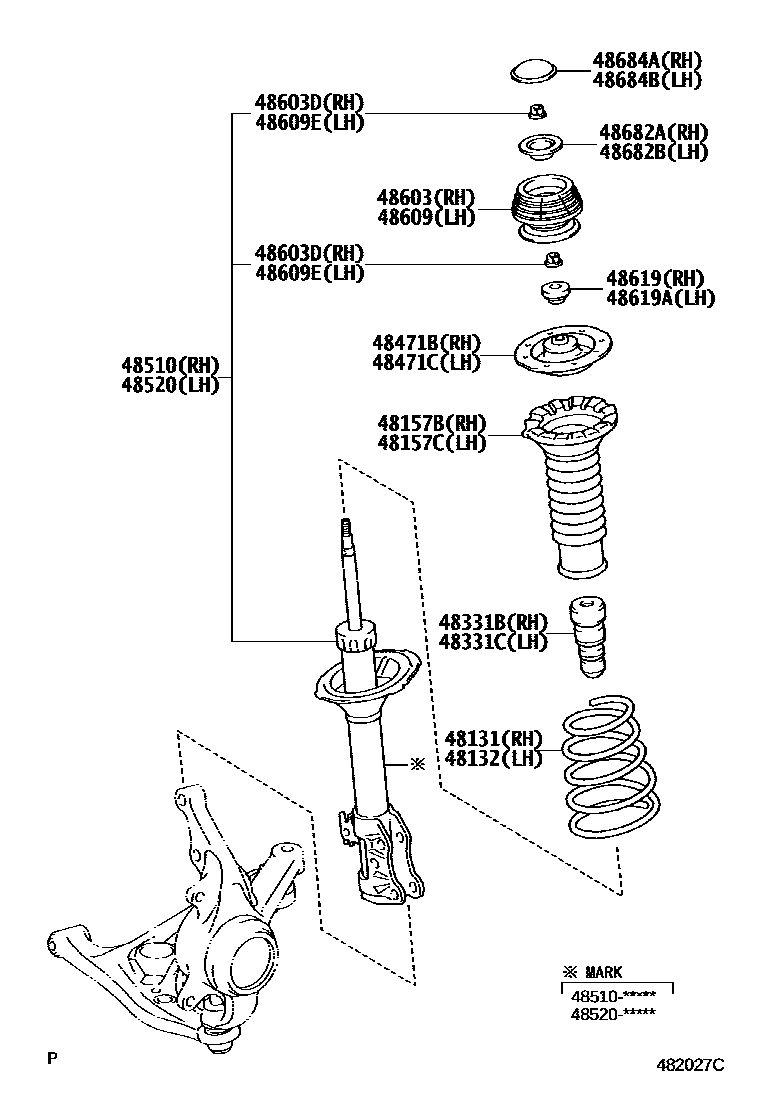

FRONT SPRING & SHOCK ABSORBER

0001 1��(��������) 0002 1��(��������)

48131SPRING, FRONT COIL, RH

main48131-52A40iKSP90¥7,800200501-201012

main48131-52A50iNCP91,SCP90..F,ILL,U¥7,800200501-201012

sub48131-52A51¥7,800

main48131-52A60iNCP91,SCP90..RS¥7,800200501-201012

main48131-52B10iNCP95..F¥8,400200501-201012

sub48131-52M20¥8,400

main48131-52B20iNCP95..ILL,U¥8,400200501-201012

48132SPRING, FRONT COIL, LH

main48131-52A40iKSP90¥7,800200501-201012

main48131-52A50iNCP91,SCP90..F,ILL,U,X¥7,800200501-201012

sub48131-52A51¥7,800

main48131-52A60iNCP91..RS¥7,800200501-201012

main48131-52B10iNCP95..F¥8,400200501-201012

sub48131-52M20¥8,400

main48131-52B20iNCP95..ILL,U¥8,400200501-201012

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-52030iKSP90,NCP9#,SCP90¥1,280200501-201012

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-52030iKSP90,NCP9#,SCP90¥1,280200501-201012

48331BBUMPER, FRONT SPRING, RH

main48331-52080iKSP90,NCP9#,SCP90..B,F,ILL,U,X¥1,250200501-201012

main48331-52100iNCP91,SCP90..RS¥1,260200501-201012

48331CBUMPER, FRONT SPRING, LH

main48331-52080iKSP90,NCP9#,SCP90..B,F,ILL,U¥1,250200501-201012

main48331-52100iNCP91,SCP90..RS¥1,260200501-201012

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-52030iKSP90,NCP9#,SCP90¥1,610200501-201012

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-52030iKSP90,NCP9#,SCP90¥1,610200501-201012

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80194iNCP91..RS¥25,600200501-200708

main48510-80197iNCP95¥26,500200501-201012

main48510-80294iKSP90,NCP91,SCP90..B,F,ILL,U¥25,500200501-200908

main48510-80398iNCP91,SCP90..RS¥25,600200708-201012

main48510-80516iKSP90,NCP91,SCP90..B,F,ILL,U¥25,600200908-201012

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-59175iNCP91..RS¥25,600200501-200708

main48520-59205iNCP95¥26,500200501-201012

main48520-59365iKSP90,NCP91,SCP90..B,F,ILL,U¥25,500200501-200908

main48520-59465iNCP91,SCP90..RS¥25,600200708-201012

main48520-80246iKSP90,NCP91,SCP90..B,F,ILL,U¥25,600200908-201012

sub48520-52141¥25,500

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-52100iKSP90,NCP9#,SCP90¥3,680200501-201012

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90179-12145iKSP90,NCP9#,SCP90¥100200501-201012

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-52100iKSP90,NCP9#,SCP90¥3,680200501-201012

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90179-12145iKSP90,NCP9#,SCP90¥100200501-201012

48619BEARING, STRUT MOUNTING, RH

main48619-0D010iKSP90,NCP9#,SCP90¥940200501-200702

sub48619-0D011¥780

main48619-0D011iKSP90,NCP9#,SCP90¥780200703-201012

48619ABEARING, STRUT MOUNTING, LH

main48619-0D010iKSP90,NCP9#,SCP90¥940200501-200702

sub48619-0D011¥780

main48619-0D011iKSP90,NCP9#,SCP90¥780200703-201012

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-52020iKSP90,NCP9#,SCP90¥680200501-200506

sub48682-52040¥410

main48682-52040iKSP90,NCP9#,SCP90¥410200506-201012

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-52020iKSP90,NCP9#,SCP90¥680200501-200506

sub48682-52040¥410

main48682-52040iKSP90,NCP9#,SCP90¥410200506-201012

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-52020iKSP90,NCP9#,SCP90¥500200501-201012

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-52020iKSP90,NCP9#,SCP90¥500200501-201012

20 parts on this diagram · 2 diagrams in section
