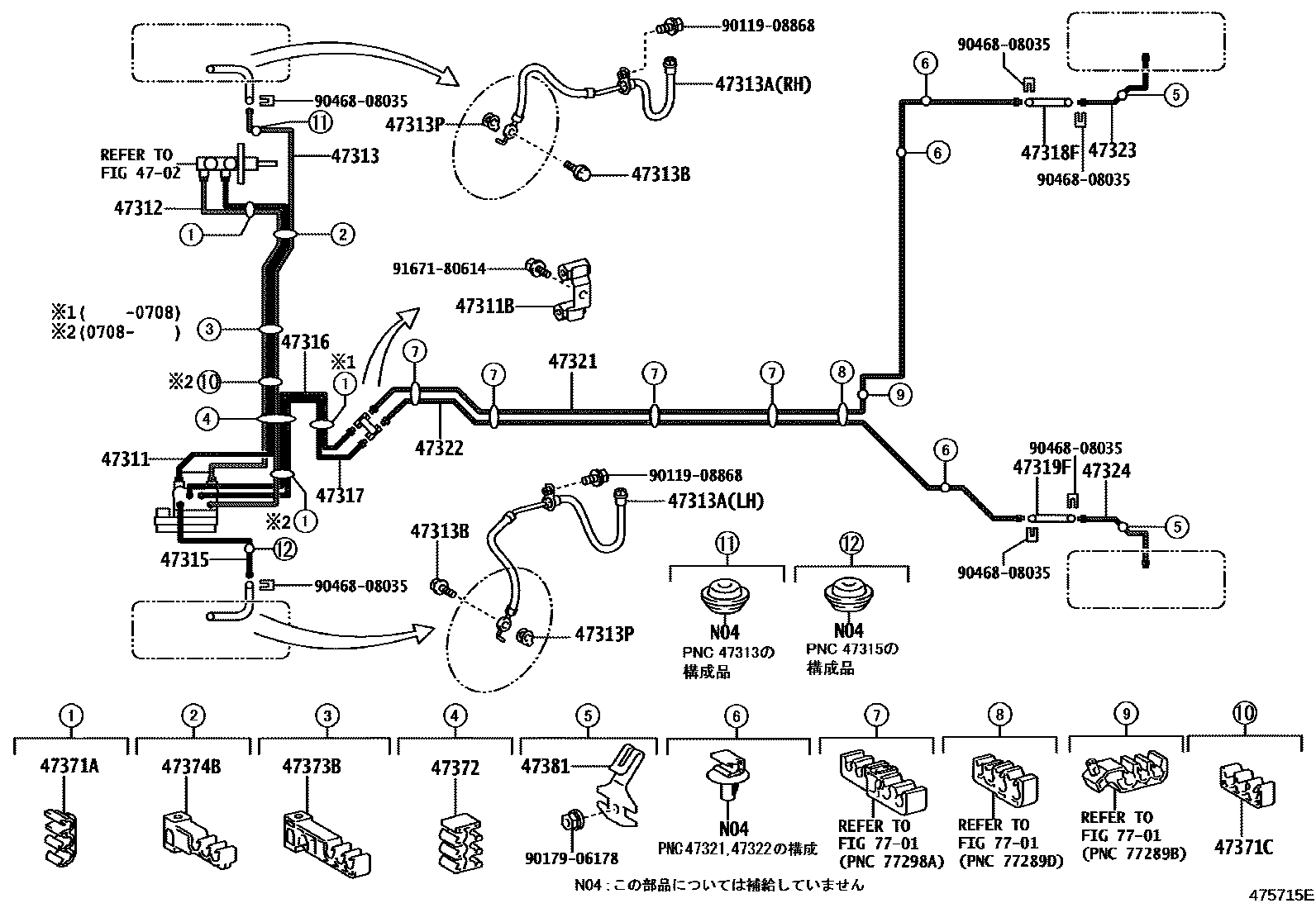

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1���������������� 0005 1��(VSC) 0006 1 0007 1���������������� 0008 1��(VSC) 0009 1

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-52221iKSP90,NCP9#,SCP90200501-200708

main47311-52370iNCP91,SCP90..RS200708-201012

main47311-52231iNCP91..RS200501-200708

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10260iNCP91,SCP90..RS200501-201012

47312TUBE, FRONT BRAKE, NO.2

main47312-52201iKSP90,NCP9#,SCP90200501-200708

main47312-52330iKSP90,NCP9#,SCP90..B,F,ILL,U200708-201012

main47312-52211iNCP91..RS200501-200708

47313TUBE, FRONT BRAKE, NO.3

main47313-52110iKSP90,NCP9#,SCP90200501-200708

main47313-52160iKSP90,NCP9#,SCP90200708-201012

main47313-52120iNCP91..RS200501-200708

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02E07iNCP91,SCP90..RS200501-201012

main90947-02E08iKSP90,NCP9#,SCP90200501-201012

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iKSP90,NCP9#,SCP90200501-201012

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iKSP90,NCP9#,SCP90200501-201012

47315TUBE, FRONT BRAKE, NO.5

main47315-52140iKSP90,NCP9#,SCP90200501-200708

main47315-52190iNCP91,SCP90..RS200708-201012

main47315-52150iNCP91..RS200809-201012

47316TUBE, FRONT BRAKE, NO.6

main47316-52100iKSP90,NCP9#,SCP90200501-200708

main47316-52150iKSP90,NCP9#,SCP90..B,F,ILL,U200708-201012

main47316-52110iNCP91..RS200501-200708

47317TUBE, FRONT BRAKE, NO.7

main47317-52100iKSP90,NCP9#,SCP90200501-200708

main47317-52150iKSP90,NCP9#,SCP90..B,F,ILL,U200708-201012

main47317-52110iNCP91..RS200809-201012

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02E09iKSP90,NCP91,SCP90200501-201012

main90947-02E12iNCP95200501-201012

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02E10iNCP91,SCP90..RS200501-201012

main90947-02E13iNCP95200501-201012

47321TUBE, REAR BRAKE, NO.1

main47321-52270iKSP90,NCP91,SCP90200501-201012

main47321-52290iNCP95200501-200507

sub47321-52291

main47321-52291iNCP95200508-201012

main47321-52280iKSP90..B,F200808-201008

47322TUBE, REAR BRAKE, NO.2

main47322-52250iKSP90,NCP91,SCP90200501-201012

main47322-52270iNCP95200501-200507

sub47322-52271

main47322-52271iNCP95200508-201012

main47322-52260iKSP90..B,F200504-200708

47323TUBE, REAR BRAKE, NO.3

main47323-52100iSCP90;KSP90,NCP91..B,F,ILL,U200501-201012

main47323-52110iNCP91..RS200501-201012

main47323-52120iNCP95200501-201012

47324TUBE, REAR BRAKE, NO.4

main47324-52090iSCP90..RS200501-201012

main47324-52100iNCP91..RS200501-201012

main47324-52110iNCP95200501-201012

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00868iNCP91..RS200501-200808

main90464-00868iNCP91..RS200708-200809

main90464-00868iKSP90,NCP9#,SCP90200808-201012

47371CCLAMP, BRAKE TUBE, NO.7

main90464-00857iKSP90,NCP9#,SCP90..B,F,ILL,U200708-201012

47372CLAMP, BRAKE TUBE, NO.2

main90949-01969iKSP90,NCP9#,SCP90200501-201012

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D27iKSP90,NCP9#,SCP90200501-201012

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D02iKSP90,NCP9#,SCP90200501-201012

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-52020iKSP90,NCP91,SCP90200501-201012

7701

9011908868

main90119-08868

9017906178

main90179-06178

9046808035

main90468-08035

9167180614

main91671-80614

28 parts on this diagram · 9 diagrams in section
