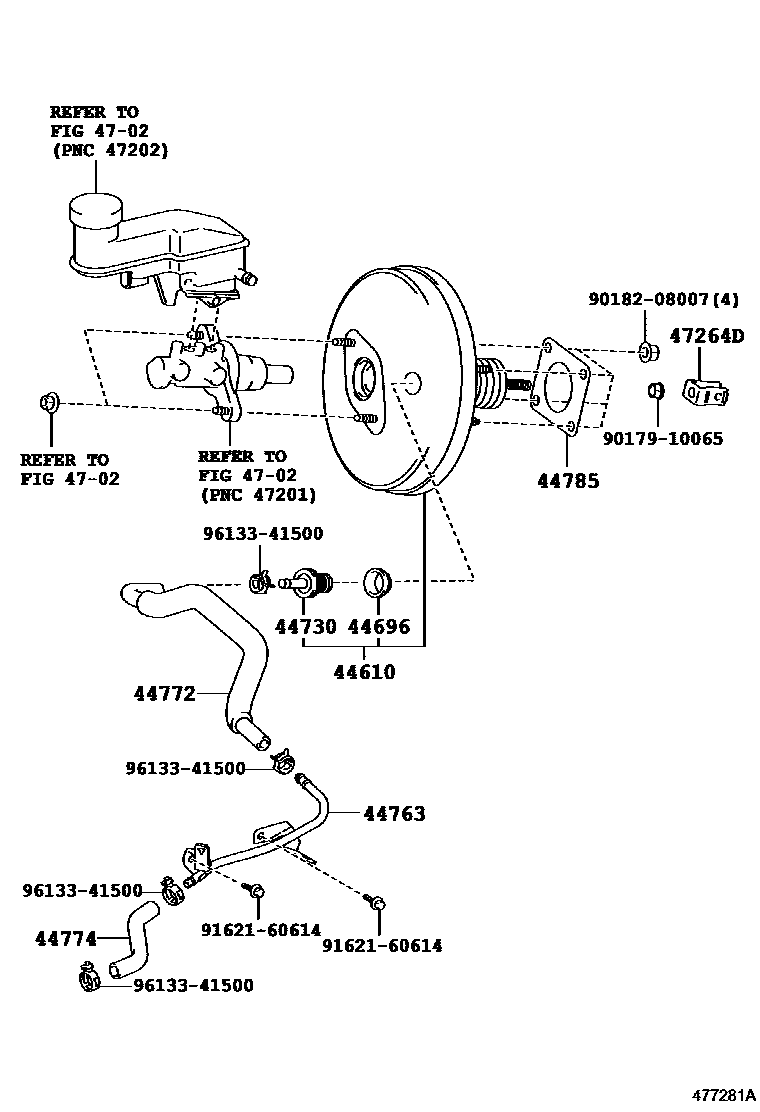

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

44610BOOSTER ASSY, BRAKE

main44610-52370iKSP90,NCP9#,SCP90..B,F,ILL,U,X200501-201012

main44610-52390iNCP91..RS200501-201012

44696GROMMET, CHECK VALVE

main90480-24015iKSP90,NCP9#,SCP90200501-201012

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28030iNCP91,SCP90..RS200501-201012

44763TUBE, BOOSTER VACUUM

main44763-52030iNCP91200501-201012

main44763-52080iNCP95200501-201012

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-52050iNCP95200501-201012

main44772-52060iNCP91..ILL,U200501-201012

44774HOSE, UNION TO CONNECTOR TUBE

main44774-52070iNCP91..RS200501-201012

main95446-09130iNCP95200501-201012

44785GASKET, BRAKE BOOSTER

main44785-16020iKSP90,NCP9#,SCP90200501-201012

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iKSP90,NCP9#,SCP90200501-201012

9017910065

main90179-10065

9018208007

main90182-08007

9162160614

main91621-60614

9613341500

main96133-41500

13 parts on this diagram · 4 diagrams in section
