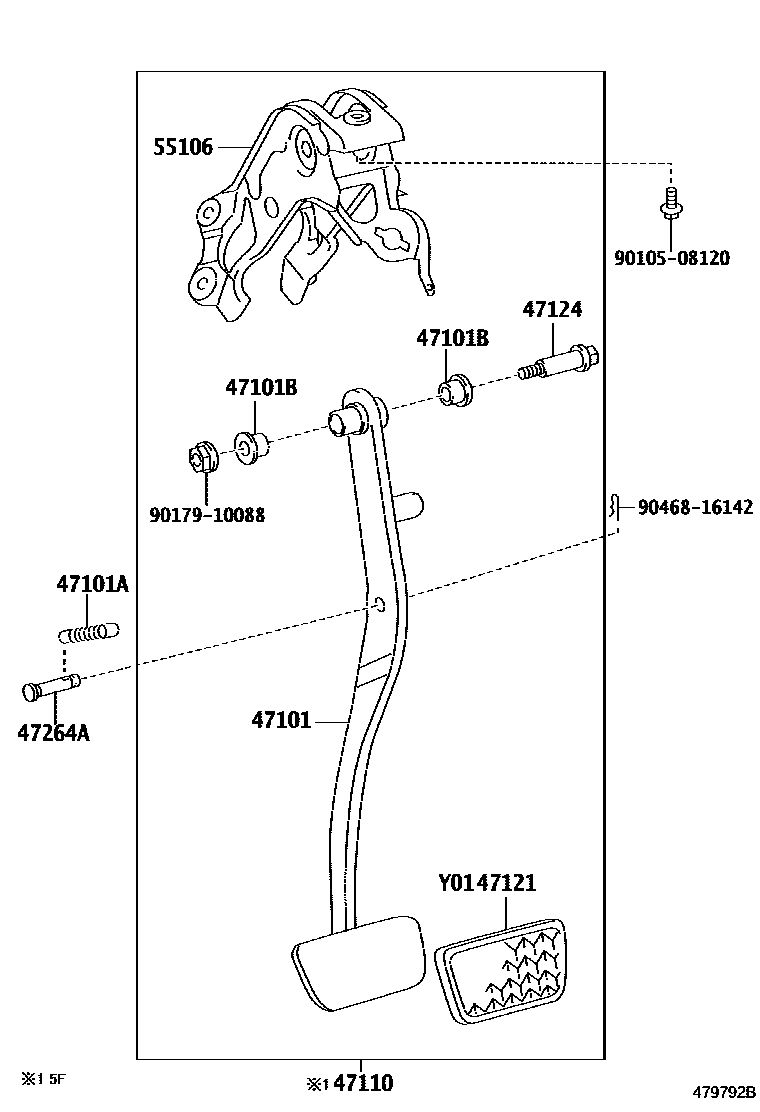

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-52240iKSP90,NCP9#,SCP90..ATM¥2,790200501-201012

sub47101-52241¥2,330

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iKSP90,NCP9#,SCP90¥180200501-201012

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iKSP90,NCP9#,SCP90..B,F,ILL,U¥120200501-201012

47110SUPPORT ASSY, BRAKE PEDAL

main47110-52260iNCP91..5F¥10,900200501-201008

47121PAD, BRAKE PEDAL

main31321-52010iNCP91..5F¥200200501-201008

main47121-52010iKSP90,NCP9#,SCP90..B,F,ILL,U¥260200501-201012

47124SHAFT, BRAKE PEDAL

main90109-10167iKSP90,NCP9#,SCP90¥190200501-201012

47264APIN(FOR PUSH ROD)

main90249-08051iKSP90,NCP9#,SCP90¥170200501-201012

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-52130iKSP90,NCP9#,SCP90¥3,370200501-201012

sub55106-52H01¥4,120

9010508120

main90105-08120¥90

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

11 parts on this diagram · 1 diagram in section
