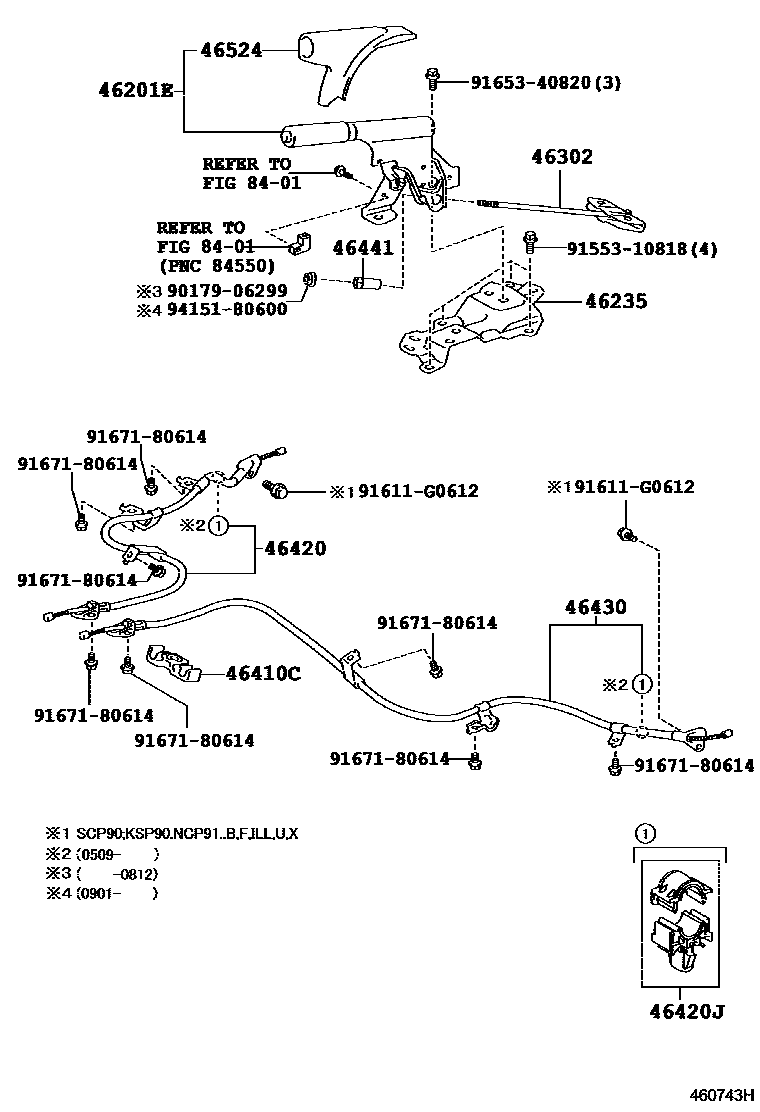

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-52070-B0iKSP90,NCP9#,SCP90..B,F,U200708-201012

DK.GRAY,TRIM1#

main46201-52070-B0iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

DK.GRAY,TRIM1#,4#

main46201-52070-E0iKSP90,NCP9#,SCP90..B,F,U200808-201012

ASH BROWN,TRIM4#

main46201-52070-E0iKSP90,NCP9#,SCP90..B,F,U200708-200808

ASH BROWN,TRIM42

main46201-52080-B0iKSP90,NCP95,SCP90..ILL200512-200708

DK.GRAY,TRIM4#

main46201-52080-B0iNCP91,SCP90..ILL200708-200808

DK.GRAY,TRIM42

main46201-52080-E0iNCP95..ILL200708-201012

ASH BROWN,TRIM4#

main46201-52080-E0iNCP95..ILL200801-200808

main46201-52080-E0iNCP91,SCP90..ILL200708-200808

ASH BROWN,TRIM42

main46201-52090-B0iNCP91..RS200501-201012

DK.GRAY,TRIM1#

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-52020iKSP90,NCP91,SCP90200501-201012

main46235-52030iNCP95200501-201012

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-52030iKSP90,NCP9#,SCP90200501-201012

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-52030iKSP90,NCP91,SCP90200501-201012

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52150iKSP90,NCP91,SCP90..B,F,U,X200501-200508

sub46420-52151

main46420-52151iSCP90;KSP90,NCP91..B,F,ILL,U200509-201012

main46420-52160iNCP91..RS200501-200508

sub46420-52161

main46420-52161iNCP91..RS200509-201012

sub46420-52162

main46420-52170iNCP95200501-200508

sub46420-52171

main46420-52171iNCP95200509-201012

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46402-52010iKSP90,NCP9#,SCP90200509-200706

main46402-52030iKSP90,NCP9#,SCP90200707-201012

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52150iKSP90,NCP91,SCP90..B,F,U,X200501-200508

sub46430-52151

main46430-52151iSCP90;KSP90,NCP91..B,F,ILL,U200509-201012

main46430-52160iNCP91..RS200501-200508

sub46430-52161

main46430-52161iNCP91..RS200509-201012

main46430-52170iNCP95200501-200508

sub46430-52171

main46430-52171iNCP95200509-201012

46441NUT, WIRE ADJUSTING, NO.1

main46441-52010iKSP90,NCP9#,SCP90200501-201012

46524COVER, PARKING BRAKE DUST

main46524-52020iKSP90,NCP9#,SCP90200501-201012

8401

9017906299

main90179-06299

9155310818

main91553-10818

91611G0612

main91611-G0612

9165340820

main91653-40820

9167180614

main91671-80614

9415180600

main94151-80600

16 parts on this diagram · 2 diagrams in section
