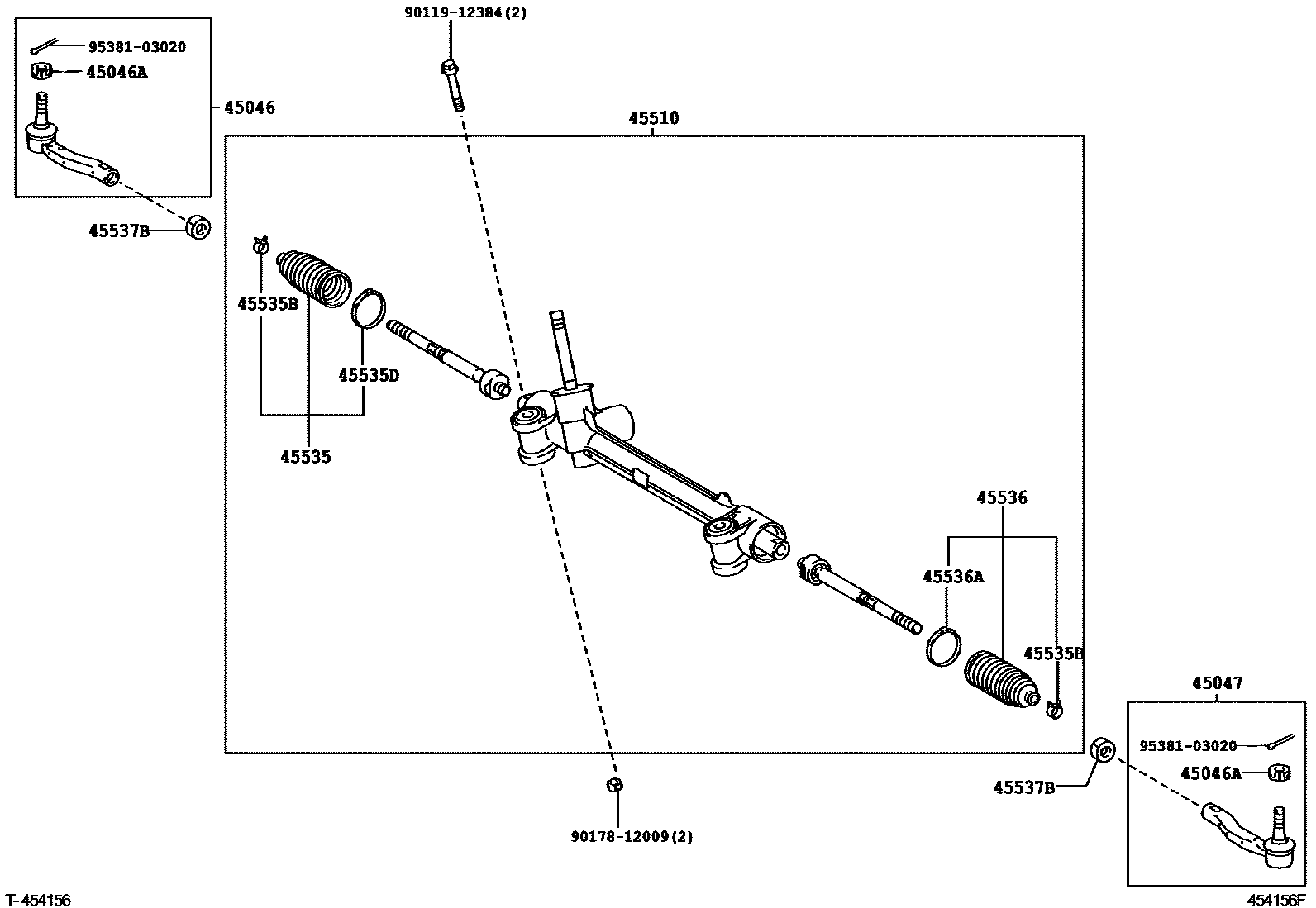

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-19265iKSP90,NCP95,SCP90..B,F200501-201012

main45046-59115iSCP90..RS200708-201012

main45046-59115iNCP91..RS200501-200708

main45046-59195iSCP90..ILL,RS,U;KSP90,NCP9#..ILL,U200501-201012

sub45046-59255

main45046-59195iSCP90..RS200708-200809

sub45046-59255

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iNCP91,SCP90..RS200501-201012

45047END SUB-ASSY, TIE ROD, LH

main45046-59115iSCP90..RS200708-201012

main45046-59115iNCP91..RS200501-200708

main45047-19115iKSP90,NCP95,SCP90..B,F200501-201012

main45047-59135iKSP90,NCP95,SCP90..F200501-201012

sub45047-59165

main45047-59135iSCP90..RS200708-200809

sub45047-59165

45510GEAR ASSY, STEERING

main45510-52030iKSP90,SCP90..B,F200501-201012

sub45510-52031

main45510-52040iNCP91,SCP90..ILL,U,X200501-201012

sub45510-52041

main45510-52040iSCP90..RS200708-200809

sub45510-52041

main45510-52070iSCP90..RS200708-201012

sub45510-52071

main45510-52070iNCP91..RS200501-200708

sub45510-52071

main45510-52150iNCP95..F200501-201012

sub45510-52151

main45510-52160iNCP95..F200501-201012

sub45510-52161

45535BOOT, STEERING RACK, NO.1

main45535-59015iKSP90,NCP9#,SCP90200501-201012

sub45535-59035

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iKSP90,NCP9#,SCP90200501-201012

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-52010iKSP90,NCP9#,SCP90200501-201012

45536BOOT, STEERING RACK, NO.2

main45535-59015iKSP90,NCP9#,SCP90200501-201012

sub45535-59035

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-52010iKSP90,NCP9#,SCP90200501-201012

45537BNUT, RACK END LOCK

main90170-14012iKSP90;NCP95,SCP90..F200501-201012

main90178-15003iSCP90..RS200708-201012

main90178-15003iNCP91..RS200501-200708

main90179-14019iSCP90..ILL,RS,U;KSP90,NCP9#..ILL,U200708-200809

main90179-14019iKSP90,SCP90..F200501-201012

9011912384

main90119-12384

9017812009

main90178-12009

9538103020

main95381-03020

13 parts on this diagram · 1 diagram in section
