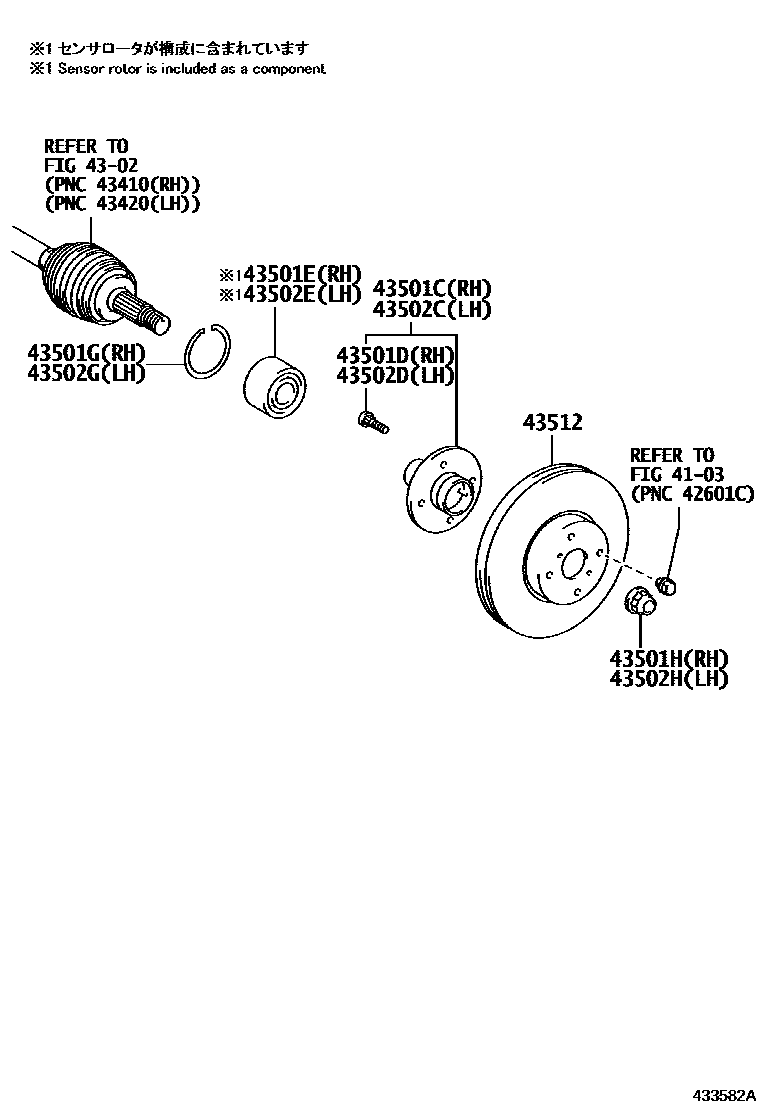

FRONT AXLE HUB

4103

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-52030iKSP90,NCP9#,SCP90¥5,800200501-201012

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iKSP90,NCP9#,SCP90¥240200501-201012

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40079iKSP90,NCP9#,SCP90¥7,100200501-201012

sub90369-40009¥7,100

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-80003iKSP90,NCP9#,SCP90¥200200501-201012

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iKSP90,NCP9#,SCP90¥220200501-201012

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-52030iKSP90,NCP9#,SCP90¥5,800200501-201012

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iKSP90,NCP9#,SCP90¥240200501-201012

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40079iKSP90,NCP9#,SCP90..B,F,ILL,U¥7,100200501-201012

sub90369-40009¥7,100

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-80003iKSP90,NCP9#,SCP90¥200200501-201012

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iKSP90,NCP9#,SCP90..B,F,ILL,U¥220200501-201012

43512DISC, FRONT

main43512-52120iSCP90..RS¥8,000200501-201012

main43512-52130iNCP91..RS¥8,600200501-201012

13 parts on this diagram · 1 diagram in section
