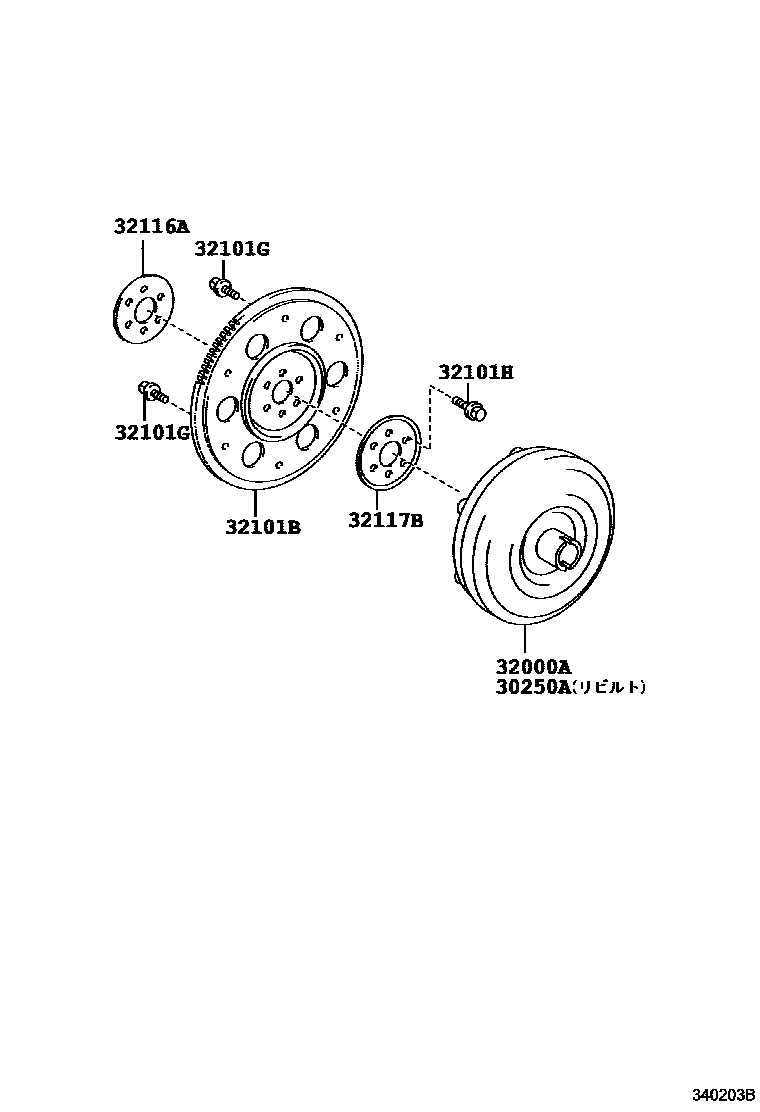

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

30250ACONVERTER ASSY, TORQUE, REBUILT

main30250-52080iNCP91..CVFC200501-201012

main30250-52090iKSP90200501-201007

sub30250-52091

main30250-52091iKSP90201007-201012

main30250-52100iSCP90200501-201007

sub30250-52101

main30250-52101iSCP90201007-201012

32000ACONVERTER ASSY, TORQUE

main32000-52080iNCP91..CVFC200501-201012

main32000-52090iKSP90200501-201007

sub32000-52091

main32000-52091iKSP90201007-201012

main32000-52100iSCP90200501-201007

sub32000-52101

main32000-52101iSCP90201007-201012

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-52021iNCP91..CVFC200501-200809

main32111-52030iKSP90,SCP90200501-200809

sub32101-52080

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08107iKSP90,NCP91,SCP90..CVFC200501-200810

main90109-08113iKSP90,NCP91,SCP90..CVFC200811

main90119-08269iKSP90,NCP91,SCP90..CVFC200501-200810

main90119-08498iKSP90,NCP91,SCP90..CVFC200811

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iKSP90,NCP91,SCP90..CVFC200501-200809

main90105-10048iKSP90,NCP91,SCP90..CVFC200808-201012

main90105-A0022iKSP90,NCP91,SCP90..CVFC200808-201003

32116ASPACER, DRIVE PLATE, FRONT

main32116-52010iKSP90,SCP90200501-200809

main32116-52030iNCP91..CVFC200501-200809

32117BSPACER, DRIVE PLATE, REAR

main32117-52010iKSP90,SCP90200501-200809

main32117-52030iNCP91..CVFC200501-200809

7 parts on this diagram · 1 diagram in section
