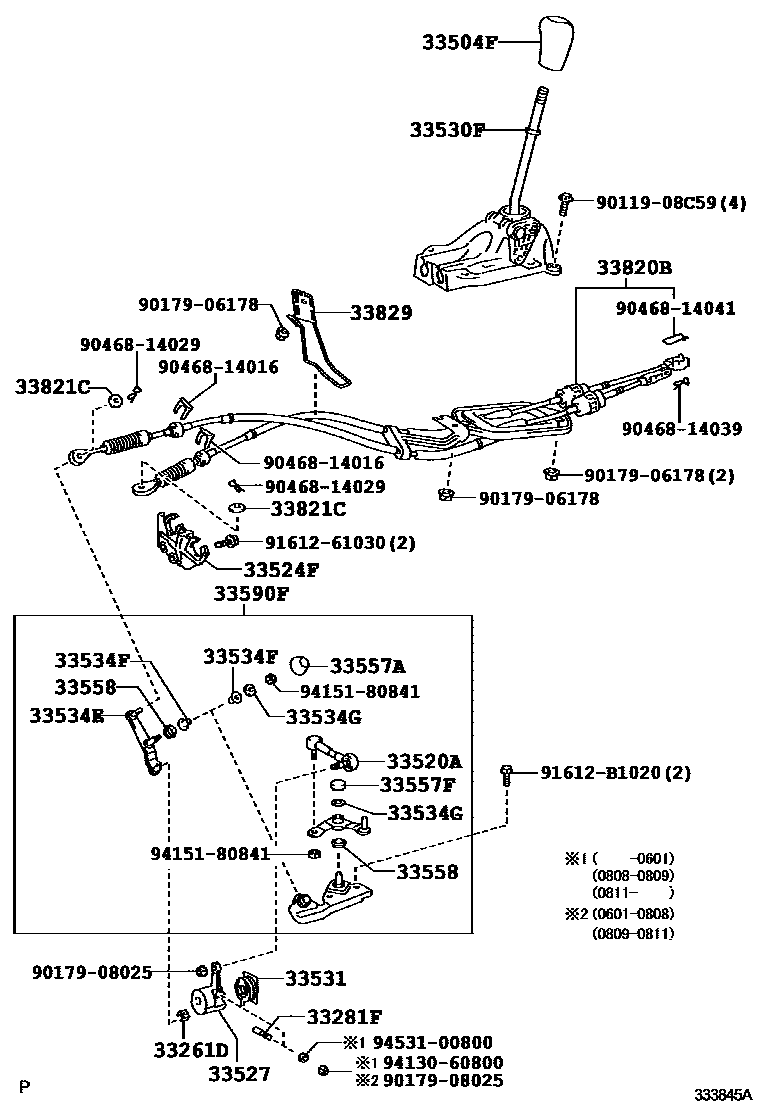

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33261DBUSH (FOR SHIFT & SELECT LEVER)

main33557-33010iNCP91..5F¥450200501-201008

33281FPIN, LEVER LOCK (FOR FLOOR SHIFT)

main33281-16020iNCP91..5F¥160200501-201008

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12310-B1iNCP91..5F200809-201008

DK.GRAY,TRIM1#

sub33504-52220¥6,200

sub33504-12310¥6,200

main33504-13061-B5iNCP91..5F200501-200809

DK.GRAY & GRAY,TRIM1#

sub33504-13061¥8,100

main33504-52080-B0iKSP90,NCP9#,SCP90..B,F,U200708-201012

DK.GRAY,TRIM1#

main33504-52080-B0iKSP90,NCP9#,SCP90..B,F,U,X200501-200708

DK.GRAY,TRIM1#,4#

main33504-52080-E0iKSP90,NCP9#,SCP90..B,F,U200708-200808

ASH BROWN,TRIM42

main33504-52080-E0iKSP90,NCP9#,SCP90..B,F,U200808-201012

ASH BROWN,TRIM4#

main33504-52090-B0iKSP90,NCP95,SCP90..ILL200512-200708

DK.GRAY,TRIM4#

main33504-52090-B0iNCP91,SCP90..CVFC..RS200501-201012

DK.GRAY,TRIM1#

main33504-52090-E0iNCP9#,SCP90..ILL200708-201012

ASH BROWN,TRIM4#

33520ASHAFT ASSY, FLOOR SHIFT CONTROL

main33520-52050iNCP91..5F¥1,490200501-201008

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-52050iNCP91..5F¥2,460200501-201007

33527LEVER, CONTROL SHIFT (FOR FLOOR SHIFT)

main33527-52010iNCP91..5F¥3,670200501-200601

main33527-52011iNCP91..5F¥2,290200601-201008

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-52110iNCP91..5F¥5,800200501-200705

sub33530-52210¥3,610

main33530-52210iNCP91..5F¥3,610200706-201008

33531BOOT, DUST (FOR CONTROL SHIFT LEVER)

main33531-17010iNCP91..5F¥490200501-201008

33534ECRANK, SELECTING BELL, NO.2

main33534-52020iNCP91..5F¥1,850200501-201008

33534FBUSH (FOR SELECTING BELLCRANK NO.2)

main90386-12022iNCP91..5F¥130200501-201008

33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)

main90201-08028iNCP91..5F¥100200501-201008

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-32010iNCP91..5F¥280200501-201008

33557FCOVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)

main33557-20010iNCP91..5F¥370200501-201008

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33558-10030iNCP91..5F¥230200501-201008

33590FCRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)

main33590-52030iNCP91..5F¥6,800200501-201008

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-52440iNCP91..5F¥25,500200501-201008

main33820-52450iKSP90,SCP90..B,F,ILL,U¥15,200200501-201012

main33820-52460iNCP91..CVFC¥15,200200501-201012

main33820-52490iNCP95¥17,200200501-201012

33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

main90201-08267iNCP91..5F¥100200501-201008

33829SUPPORT, TRANSMISSION CONTROL CABLE

main33829-52020iNCP95¥320200501-201012

main33829-52090iNCP91..CVFC¥480200501-200509

sub33829-52091¥620

main33829-52090iNCP91..5F¥480200501-200511

sub33829-52091¥620

main33829-52091iNCP91..5F¥620200512-200706

sub33829-52092¥460

main33829-52092iNCP91..5F¥460200707-201008

9011908C59

main90119-08C59¥80

9017906178

main90179-06178¥100

9017908025

main90179-08025¥80

9046814016

main90468-14016¥160

9046814029

main90468-14029¥90

9046814039

main90468-14039¥60

9046814041

main90468-14041¥80

9161261030

main91612-61030¥110

91612B1020

main91612-B1020¥130

9413060800

main94130-60800¥60

9415180841

main94151-80841¥80

9453100800

main94531-00800¥160

30 parts on this diagram · 5 diagrams in section
