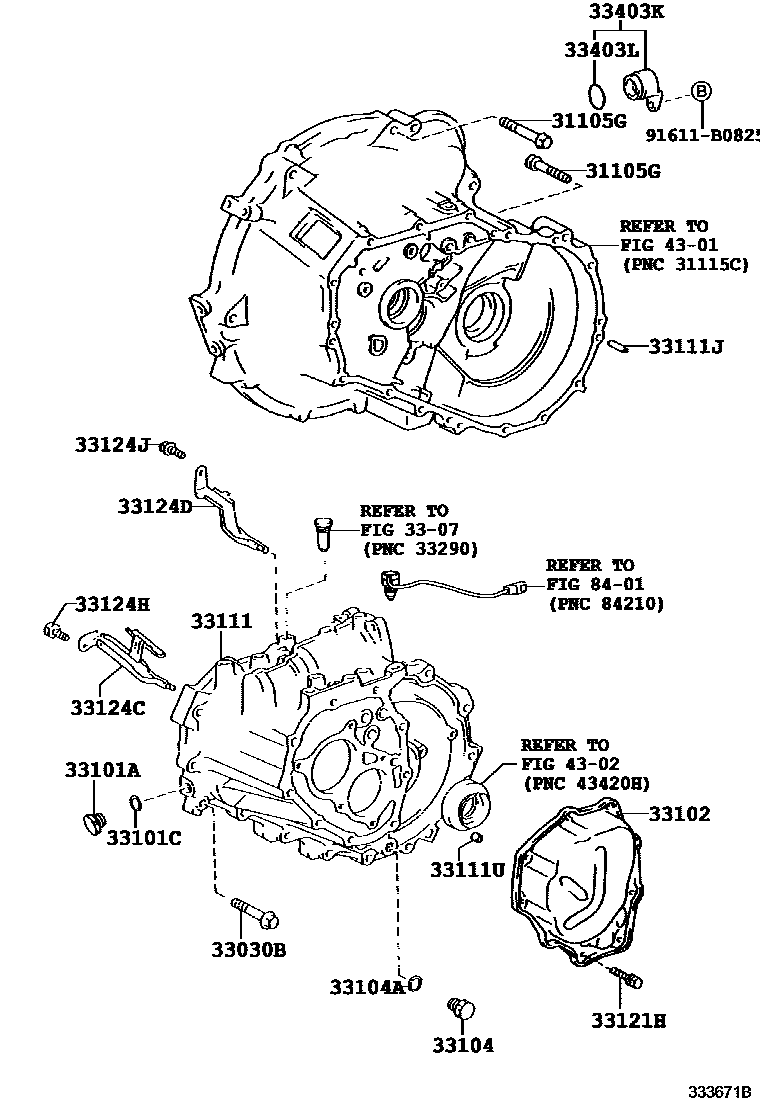

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
3307
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)
33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
33124CPIPE, OIL RECEIVER, NO.1(MTM)
33124DPIPE, OIL RECEIVER, NO.2(MTM)
33124HBOLT(FOR OIL RECEIVER PIPE)
33124JBOLT, W/WASHER
33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403LRING, O
4301
4302
8401
91611B0825
main91611-B0825
22 parts on this diagram · 1 diagram in section
