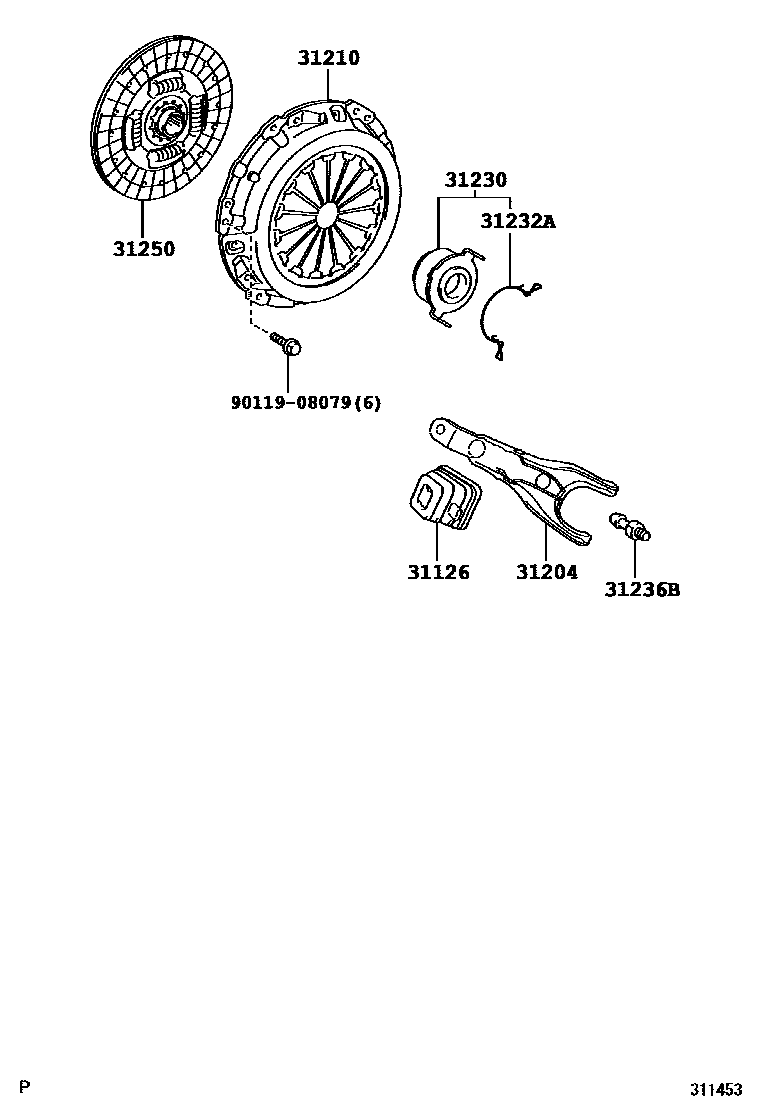

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iNCP91..5F200501-201008

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-52010iNCP91..5F200501-201008

31210COVER ASSY, CLUTCH

main31210-52050iNCP91..5F200501-200602

sub31210-52051

main31210-52051iNCP91..5F200603-200702

sub31210-52052

main31210-52052iNCP91..5F200703-200809

sub31210-52053

31230BEARING ASSY, CLUTCH RELEASE

main31230-12180iNCP91..5F200501-200812

sub31230-12181

main31230-12181iNCP91..5F200812-201008

31232ACLIP, RELEASE BEARING HUB

main31232-12080iNCP91..5F200501-201008

31236BSUPPORT, RELEASE FORK

main31236-12020iNCP91..5F200501-201008

31250DISC ASSY, CLUTCH

main31250-52050iNCP91..5F200501-201007

9011908079

main90119-08079

8 parts on this diagram · 1 diagram in section
