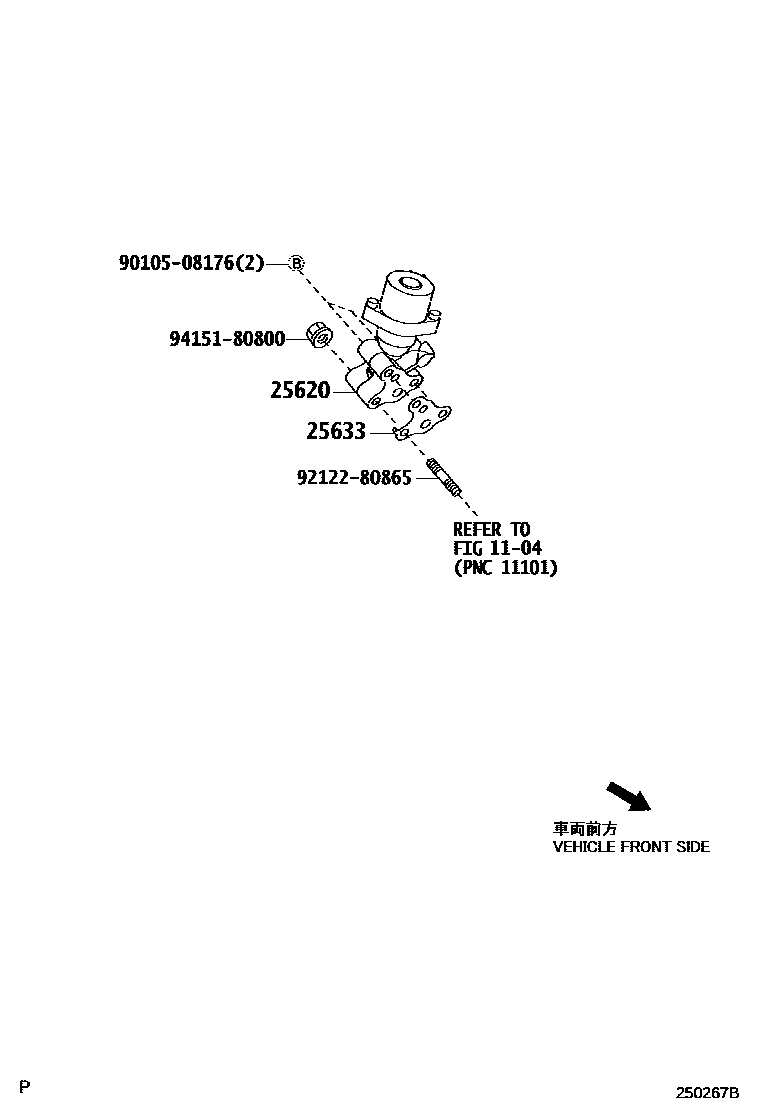

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

1104

25620VALVE ASSY, EGR

main25620-21010i1NZFE..NCP91..ILL,U200501-201012

main25620-23010i2SZFE..SCP90..RS200501-201012

main25620-40020i1KRFE..KSP90200501-201012

25633GASKET, EGR VALVE

main25633-21020i1NZFE..NCP91200501-201012

main25633-23010i2SZFE..SCP90..F,ILL,U200501-201012

main25633-40020i1KRFE..KSP90200501-201012

9010508176

main90105-08176

9212280865

main92122-80865

9415180800

main94151-80800

6 parts on this diagram · 3 diagrams in section
