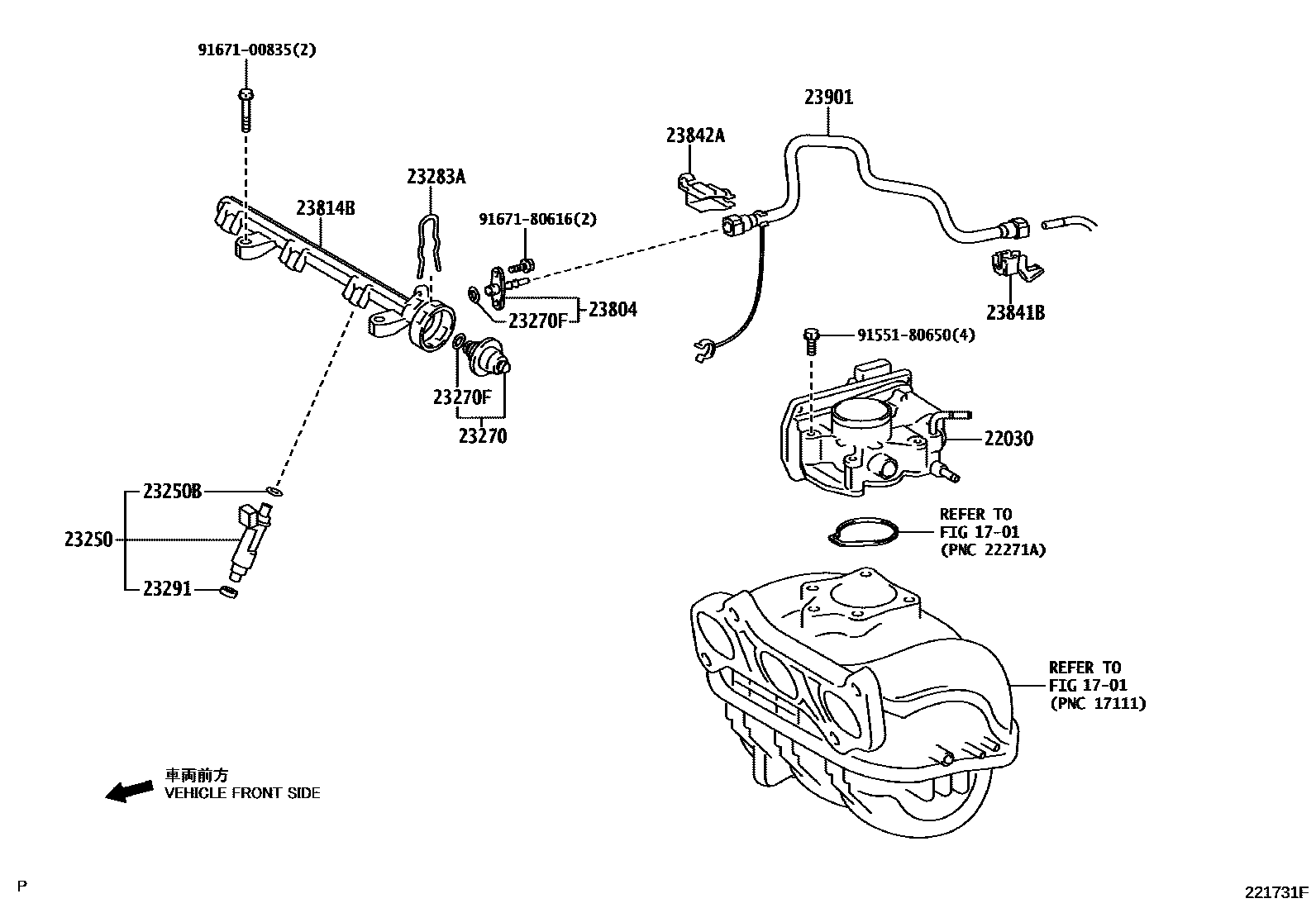

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

1701

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-21030i1NZFE,2NZFE..NCP9#200501-201012

main22030-40010i1KRFE..KSP90200501-201012

23250INJECTOR ASSY, FUEL

main23209-21040i1NZFE,2NZFE..NCP9#200501-201012

sub23209-21120

main23209-29015i2SZFE..SCP90..RS200501-201012

main23209-49085i1KRFE..KSP90200501-201012

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i2SZFE..SCP90200501-200607

main90301-07033i1KRFE..KSP90200501-201012

main90301-07037i2SZFE..SCP90200607-201012

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-40010i1KRFE..KSP90200501-201012

23270FRING, O(FOR PULSATION DAMPER)

main90301-07033i1KRFE..KSP90200501-201012

23283AHOLDER, FUEL PRESSURE REGULATOR

main23283-40010i1KRFE..KSP90200501-201012

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i2SZFE..SCP90200501-201012

main23291-41010i1NZFE,2NZFE..NCP9#..F,ILL,U200501-201012

main23291-87701i1KRFE..KSP90200501-201012

23804PIPE SUB-ASSY, FUEL, NO.4

main23804-40010i1KRFE..KSP90200501-201012

23814BPIPE, FUEL DELIVERY

main23814-40010i1KRFE..KSP90200501-201012

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i2SZFE..SCP90200607-201012

main23841-28010i2SZFE..SCP90200501-200606

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-21040i1NZFE,2NZFE..NCP9#200906-201012

main23842-21010i1NZFE,2NZFE..NCP9#200501-200906

main23842-40010i1KRFE..KSP90200501-201012

23901TUBE SUB-ASSY, FUEL

main23901-21110i1NZFE,2NZFE..NCP9#200501-201012

main23901-23040i2SZFE..SCP90200501-201012

main23901-40020i1KRFE..KSP90200501-201012

9155180650

main91551-80650

9167100835

main91671-00835

9167180616

main91671-80616

16 parts on this diagram · 4 diagrams in section
